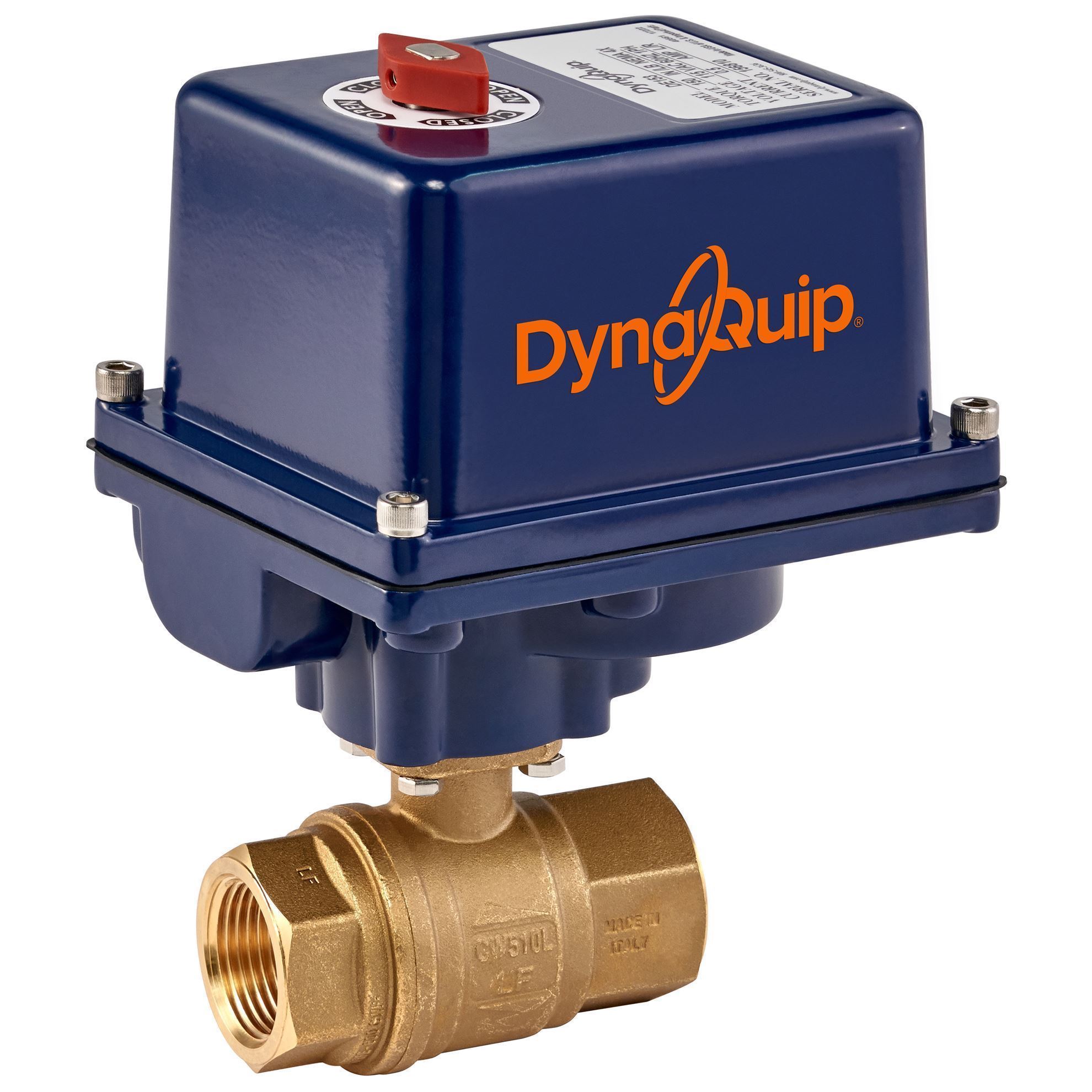

EHH SERIES - 2 PC Brass Ball Valve - Electric Actuator
The DynaMatic EHH Series of electrically actuated brass valves offers an excellent option for automated applications requiring durable yet economical brass. These automated valves fit a wide range of applications, and all models are pre-sized for clean water, air, or light oil applications. Please contact customer service for recommendations and actuator sizing when dirty or severe service applications are needed. The EHH Series uses our DE and MA Series electrical actuators. The EHH Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.
Features Include:
- NPT Female Threaded Ends
- Forged Brass Construction
- RTFE Seats, PTFE/Viton Stem Seals
- Bottom Loaded Stem
- ISO 5211 Direct Mounting
- Full Port
Filter by attributes
Valve Size
Electric Voltage
Seat Material
Actuator Type
Thread Type
| Product | Valve Size | Electric Voltage | Seat Material | Actuator Type | Thread Type | List Price | |
|---|---|---|---|---|---|---|---|
| EHH2BATJE7S | 4 in | 24-240 VAC 24-135 VDC | N/A | N/A | N/A | Quote | Request A Quote |
| EHH27ATJE3S | 1 1/2 in | 24-240 VAC 24-135 VDC | PTFE/Viton® | N/A | N/A | Quote | Request A Quote |
| EHH2BATE01G | 4 | 460 VAC (3 Phase) | PTFE/Viton® | MA7G | -20 to 370 ºF | Quote | Request A Quote |
| EHH2BATE01E | 4 | 24 VDC | PTFE/Viton® | MA7E | -20 to 370 ºF | Quote | Request A Quote |
| EHH2BATE01D | 4 | 12 VDC | PTFE/Viton® | MA7D | -20 to 370 ºF | Quote | Request A Quote |
| EHH2BATE01C | 4 | 24 VAC | PTFE/Viton® | MA7C | -20 to 370 ºF | Quote | Request A Quote |
| EHH2BATE01B | 4 | 220 VAC (1 Phase) | PTFE/Viton® | MA7B | -20 to 370 ºF | Quote | Request A Quote |
| EHH2BATE01 | 4 | 115 VAC | PTFE/Viton® | MA7 | -20 to 370 ºF | Quote | Request A Quote |
| EHH2AATJE5S | 3 in | 24-240 VAC 24-135 VDC | N/A | N/A | N/A | Quote | Request A Quote |
| EHH2AATE07 | 3 | 115 VAC | PTFE/Viton® | MA4 | -20 to 370 ºF | Quote | Request A Quote |
| EHH28ATJE5S | 2 in | 24-240 VAC 24-135 VDC | N/A | N/A | N/A | Quote | Request A Quote |
| EHH28ATE25H | 2 | 12-24 VAC/DC | PTFE/Viton® | DE305H | -20 to 370 ºF | Quote | Request A Quote |
| EHH28ATE25 | 2 | 115 VAC | PTFE/Viton® | DE305 | -20 to 370 ºF | Quote | Request A Quote |
| EHH27ATE25H | 1 1/2 | 12-24 VAC/DC | PTFE/Viton® | DE305H | -20 to 370 ºF | Quote | Request A Quote |
| EHH27ATE25 | 1 1/2 | 115 VAC | PTFE/Viton® | DE305 | -20 to 370 ºF | Quote | Request A Quote |
| EHH26ATE20H | 1 1/4 | 12-24 VAC/DC | RTFE | ON/OFF | FNPT | Quote | Request A Quote |
| EHH26ATE20 | 1 1/4 | 115 VAC | RTFE | ON/OFF | FNPT | Quote | Request A Quote |
| EHH25ATJE2S | 1 in | 24-240 VAC 24-135 VDC | PTFE/Viton® | N/A | N/A | Quote | Request A Quote |
| EHH25ATE20H | 1 | 12-24 VAC/DC | RTFE | DE153H | FNPT | Quote | Request A Quote |
| EHH25ATE20 | 1 | 115 VAC | RTFE | ON/OFF | FNPT | Quote | Request A Quote |
| EHH24ATJE2S | 3/4 in | 24-240 VAC 24-135 VDC | PTFE/Viton® | N/A | N/A | Quote | Request A Quote |
| EHH23ATE20 | 1/2 in | 12-24 VAC/DC | RTFE | DE153 | FNPT | Quote | Request A Quote |
| EHH24ATE20H | 3/4 in | 12-24 VAC/DC | RTFE | DE153H | FNPT | Quote | Request A Quote |
| EHH24ATE20 | 3/4 in | 115 VAC | RTFE | DE153 | FNPT | Quote | Request A Quote |
| EHH23ATJE2S | 2-Jan | 24-240 VAC 24-135 VDC | PTFE/Viton® | N/A | N/A | Quote | Request A Quote |
