| Valve Size | 1/2 in |
|---|---|
| Actuator Type | DE153 |
| Thread Type | FNPT |
| Operating PSI (D) | 300 psi |
| Valve CWP | 600 psi |
| Porting Style | Full |
| Temperature Range - Media | -20 to 370 ºF |
| Temperature Range - Ambient | -40 to 150ºF |
| Valve Body Material | Brass |
| Seat Material | RTFE |
| Seal Type | PTFE/Viton® |
| Electric Actuator Type | On/Off |
| Electric Voltage | 12-24 VAC/DC |

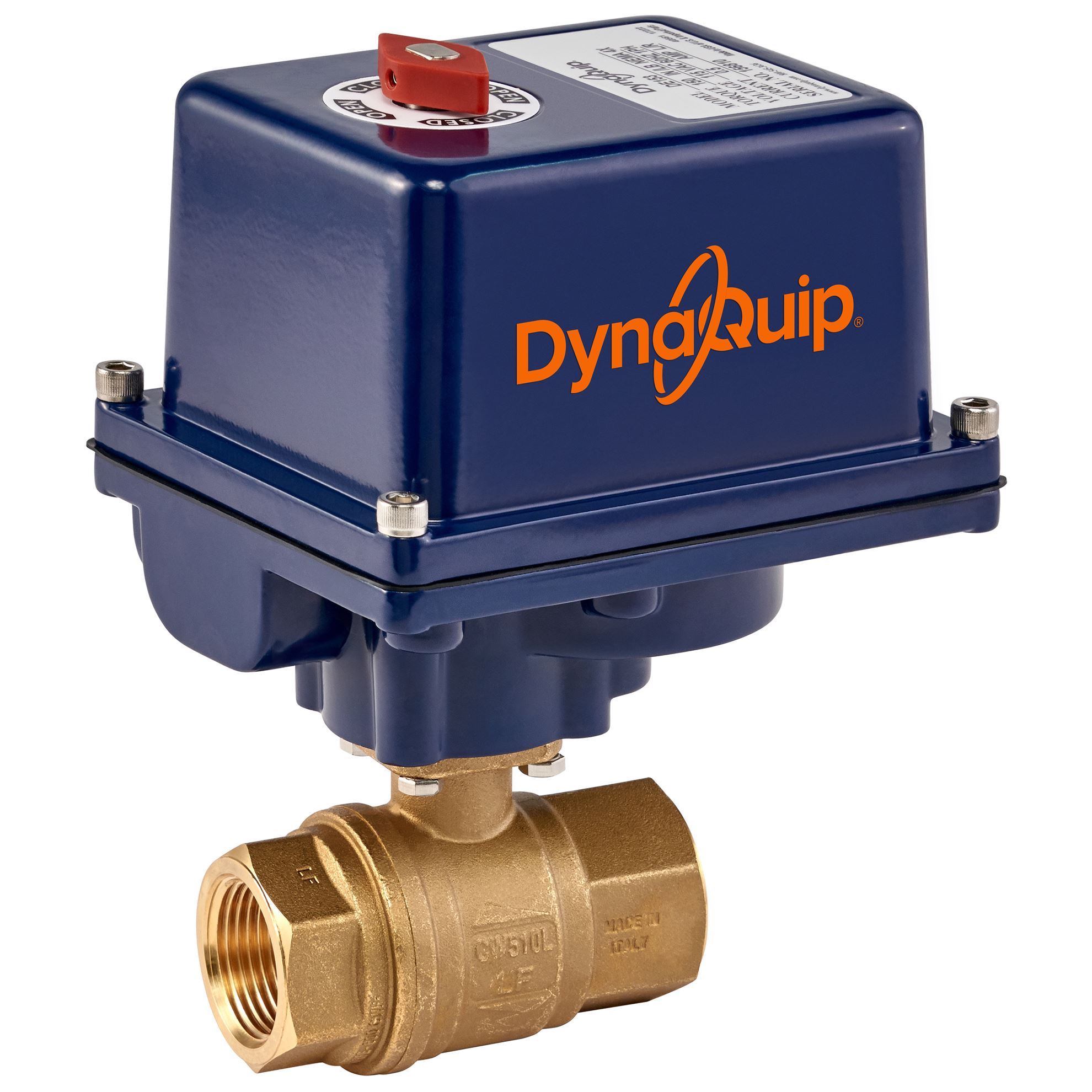

The DynaMatic EHH Series of electrically actuated brass valves offers an excellent option for automated applications requiring durable yet economical brass. These automated valves fit a wide range of applications, and all models are pre-sized for clean water, air, or light oil applications. Please contact customer service for recommendations and actuator sizing when dirty or severe service applications are needed. The EHH Series uses our DE and MA Series electrical actuators. The EHH Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.
Features Include:
