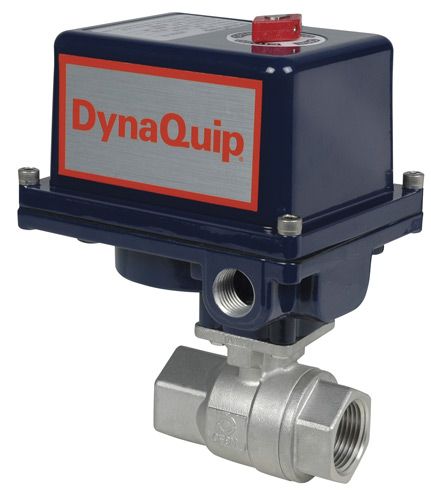

EHS2AAJE02B, 2PC SS ELECTRIC

Additional information

Valve Size

3 in

Electric Voltage

220 VAC (1 Phase)

REPLACEMENT OR OBSOLETE ITEM

OBSOLETE

CROSS REFERENCE ITEM

E2S2AAJE02B

Series

EHS

Operator

Actuator

Actuator Type

Electric

Actuator Part Number

MA13B

Valve Type

Ball

Thread Type

FNPT

Operating PSI (D)

300 psi

Valve CWP

800 psi

Porting Style

Full

Port Opening Size

3

Temperature Range - Media

-20 to 370 ºF

Temperature Range - Ambient

10 to 140 ºF

Weight

43.80 lb

Body Style

2 Piece

Number of Ports

2

Valve Body Material

Stainless Steel

Valve Construction

Stainless Steel

Stem Seal Type

PTFE/Viton®

Body Finish

Stainless Steel

Ball Material

316 Stainless Steel

Seat Material

RTFE

Seal Type

PTFE/Viton®

Stem Material

316 Stainless Steel

Body Length

7.56 in

B Dimensions

5.50 in

C Dimensions

3.14 in

D Dimensions

4.02 in

E Dimensions

14.03 in

F Dimensions

7.87 in

G Dimensions

13 in

H Dimensions

10.04 in

Application

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

Description

The EHS2 DynaMatic Series of electrically actuated stainless steel valves offers an excellent option for automated applications requiring corrosion resistant stainless steel. Two-piece design offers flexibility and rugged economy. These automated valves are available with 115VAC, 220 VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications.

Features Include:

  • NPT Female Threaded Ends
  • Stainless Steel (CF8M) Construction
  • RTFE Seats, PTFE/Viton Stem Seals
  • Bottom Loaded Stem
  • ISO 5211 Direct Mounting
