DynaQuip Controls UP Series Rack & Pinion Pneumatic Actuators are designed to meet the needs of the quarter-turn valve market. Engineered to be compact, durable, versatile and coupled with economical and long-lasting operation. Our UP Series actuators are available in double acting and spring return models with torque outputs up to 40,000 inch-pounds with a 80 PSI air supply.

UP Series actuators are perfect for quarter-turn valve automation applications where continuous rapid cycling is required or hazardous conditions exist

• Body: Aluminum, ASTM 6063-T6, Hard Anodized Finish Epoxy Coated End Caps
• Piston: Adonized Aluminum
• End Cap: Aluminum, Polyester Paint Finish
• Drive Shaft: Forged Steel, ASTM A105 Nickel Plated
• Seal, O-Rings: Buna N
• Bearings: Delrin
• Fasteners: SS ASTM A193-B8
• Nuts: SS ASTM A194-GR8
• Loaded Springs: Steel, Electrophoretic Paint
• Operating Temperature: -4° F to 176° F
• NAMUR connection standard for accessories

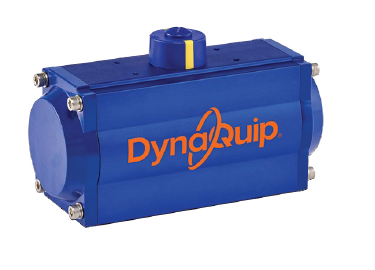

DynaQuip Controls HP Series Rack & Pinion Pneumatic Actuators are designed to meet the needs of the quarter-turn valve market. Engineered to be compact, durable,and versatile, these actuators represent the latest technology coupled with economical and long-lasting operation. Our HP Series actuators are available in double acting and spring return models with torque outputs up to 83,462 inch-pounds with a 80 PSI air supply.

HP Series actuators are perfect for quarter-turn valve automation applications where continuous rapid cycling is required or hazardous conditions exist

• Body: Aluminum, ASTM 6063-T6, Hard Anodized Finish Epoxy Coated
• Piston: Aluminum Alloy, ASTM B179
• End Cap: Aluminum Alloy, ASTM B179, Black Polyester Paint Finish
• Drive Shaft: Forged Steel, ASTM A105 Nickel Plated
• Seal, O-Rings: Buna N
• Bearings: Delrin 500
• Fasteners: SS ASTM A193-B8
• Nuts: SS ASTM A194-GR8
• Loaded Springs: Steel, High Alloy Epoxy Coated
• Operating Temperature: -10° F to 195° F
• NAMUR connection standard for accessories

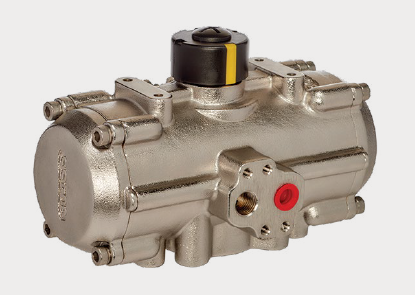

The SP Series of stainless steel pneumatic actuators are the perfect solution for wash-down applications. The electro-polish finish offers excellent resistance to most corrosive chemicals and industrial atmospheres. The SP features dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life and fast operation. Available in Double Acting or Spring Return (fail-open or fail-closed).



Design Features:

• ASTM303 stainless steel with electro-polish finish
• Dual piston rack and pinion design for compact construction, symmetric mounting position, high-cycle life, and fast operation.
• Stainless steel fasteners for long-term corrosion resistance
• ISO 5211 direct mounting, DIN 3337
• NAMUR standard for mounting solenoids, limit switches and other accessories
• Multiple bearings and guides on rack and pistons, low friction, high cycle life, and prevent shaft blowout.
• The two independent external travel stop adjustment bolts can adjust +5° at both open and close directions.

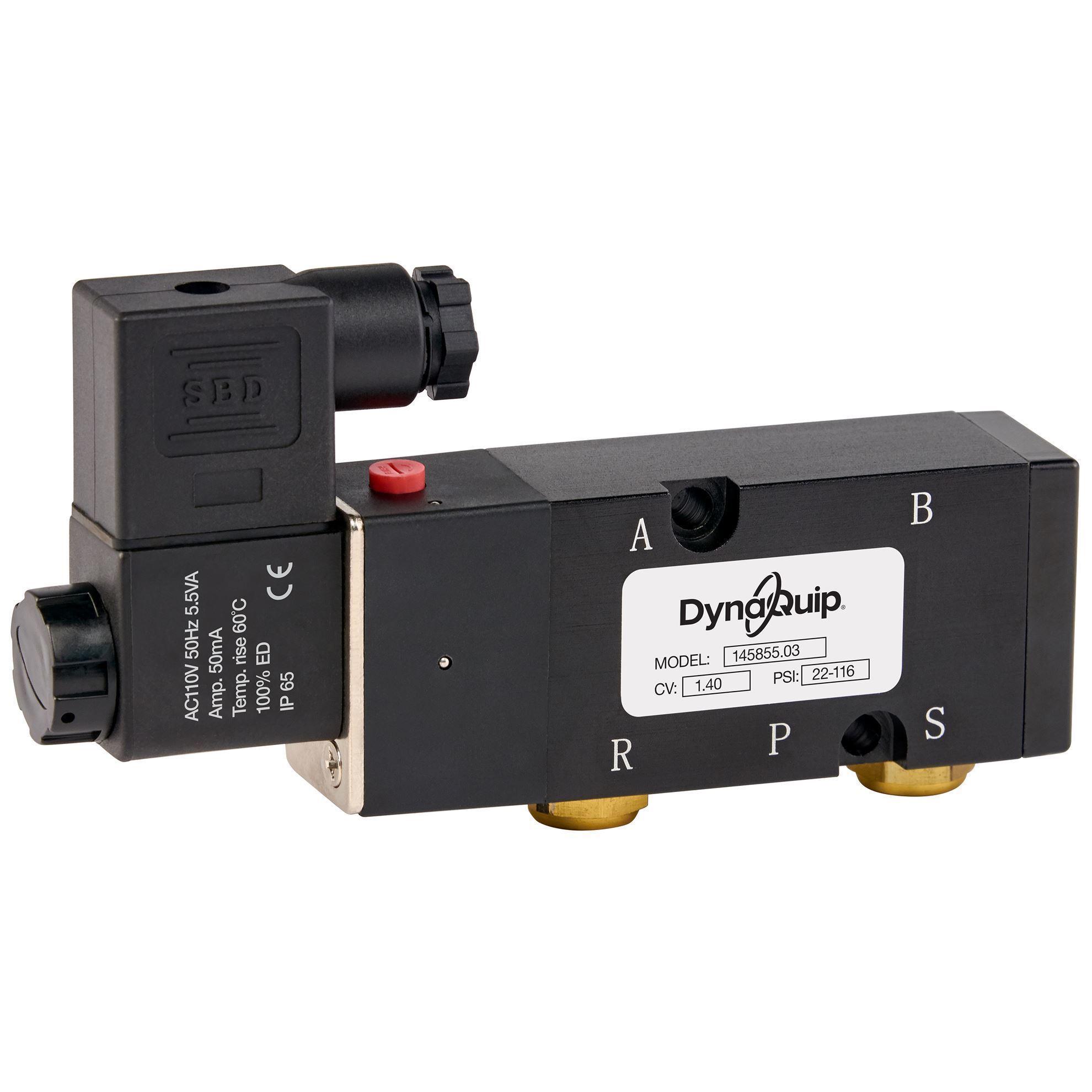

Solenoid Pilot Valve For efficient operation of DynaQuip pneumatic actuators, choose DynaQuip pilot solenoid valves:

• Pilot solenoid valves electrically control the air supply coming into the actuator.
• Standard NEMA 4 Housing (additional NEMA ratings available).
• The solenoid pilot valve pressurizes and exhausts the actuator piston compartments to cause the actuator to move.
• The 4-way solenoid pilot valve mounts directly to the actuator, reducing response time and saving the cost of tubing brackets and labor.
• Mounting pattern follows the NAMUR connection standard.
• Any of the following pilot solenoids will fit DynaQuip pneumatic actuators. Simply choose the correct voltage and NEMA rating (if other than 4X)

Valve Position Limit Switch
For local/ remote position indication from DynaQuip pneumatic actuators, choose DynaQuip valve position limit switches

• Provides local or remote indication of valve position
• Contains 2 SPDT switches
• NEMA 4, 4X enclosure Additional NEMA ratings and voltages are available.
• High contrast indicator for instant visual notification.
• Includes mounting bracket
• 1/2″ NPT conduit entry
• NAMUR connection standard for accessories
