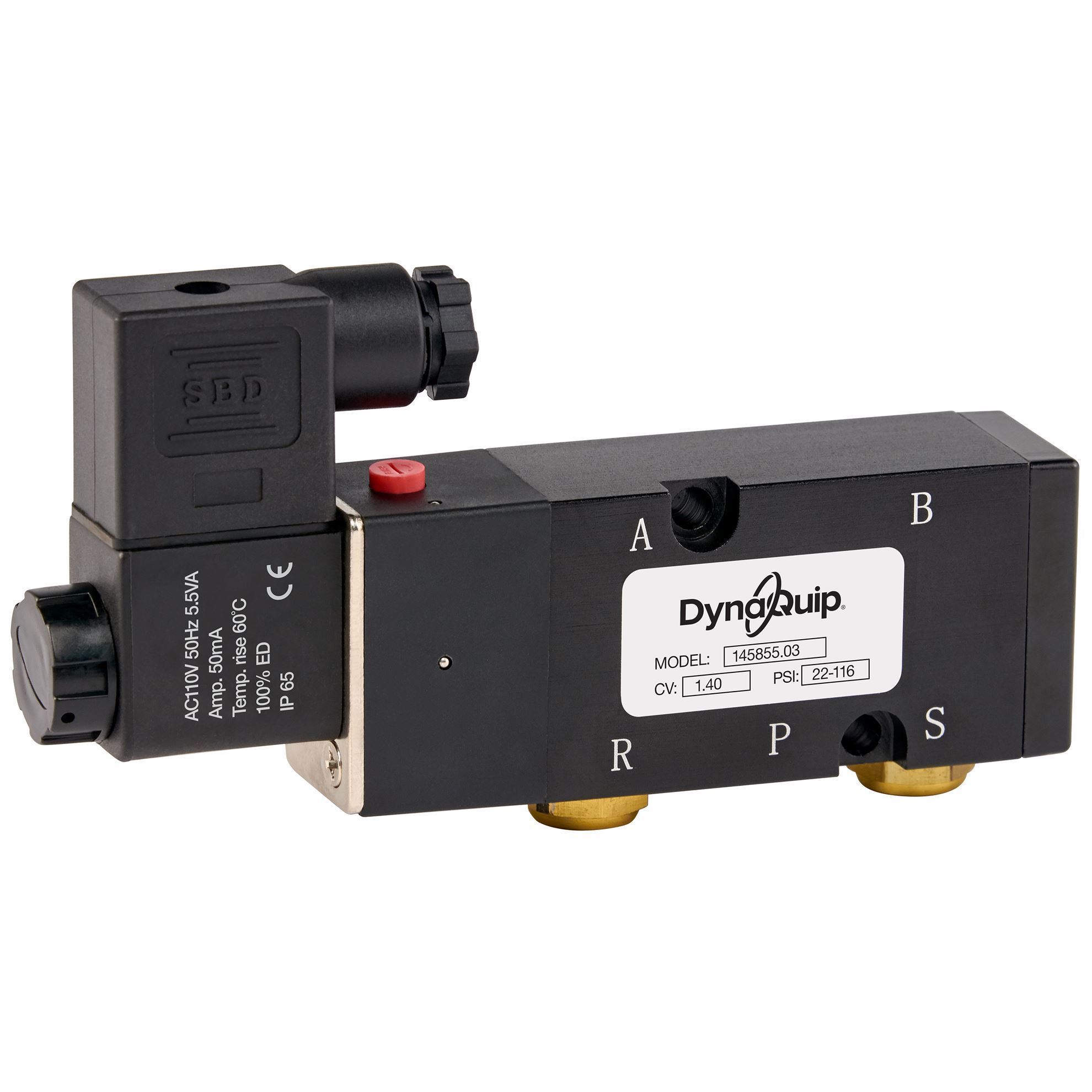

145855.Y1, Pilot Solenoid Valve 1/2″ NPT 120 VAC

145855.Y1, Pilot Solenoid Valve 1/2" NPT 120 VAC

SKU: 145855.Y1 Category:
Printable Page
Email This Page
Save To Favorites
Solenoid Valve Submittal Drawing
Solenoid Valve & Speed Controls Wiring and Mounting

Additional information

Item Name

Pilot Solenoid Valve 1/2" NPT 120 VAC
NEMA Rating

4
Height

4.00 in
Width

2.00 in
Depth

2.00 in
Weight

1.00 lb
Pneumatic and Electro-Pneumatic Positioner

Choose DynaQuip positioners. Pneumatic and electro-pneumatic positioners are commonly used to proportionally control flow.
Features

The vibration resistant design has no resonance effects from 5-200 Hz and is unaffected by EMF. Reduced Bleed Pilot Valve reduces air consumption by more than 50 %.

Description

NAMUR, 120 V, NEMA 4, 4-WAY

For efficient operation of pneumatic actuators, choose DynaQuip pilot solenoid valves:

  • Pilot solenoid valves electrically control the air supply coming into the actuator.
  • Standard NEMA 4 Housing (additional NEMA ratings available).
  • The solenoid pilot valve pressurizes and exhausts the actuator piston compartments to cause the actuator to move.
  • The 4-way solenoid pilot valve mounts directly to the actuator, reducing response time and saving the cost of tubing brackets and labor.
  • Mounting pattern follows the NAMUR connection standard.
