Additional information
| Torque at 60 / 80 psig | 1109 / 1479 in·lb |
|---|---|
| Temperature Range - Ambient | -10 to 195 ºF |
| Width - C | 4.72 in |
| Length - A | 8.77 in |
| Weight | 10.58 lb |

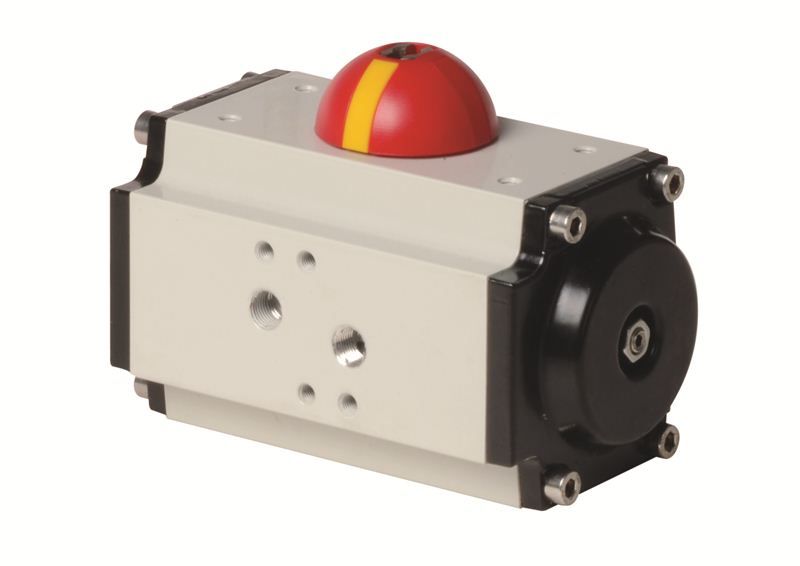

| Pneumatic Actuator Type | Double Acting |
| Type | Double Acting, Dual Rack and Pinion Design, Pneumatic |
| Mount Type | ISO 5211 |
| J | 1.57 in |
| K | 0.81 in |
| L | 0.75 in |
| M-TEMPXYZ | 0.5 |
| R | 5/16/2018 |
| S-TEMPXYZ | 2.76 in |
| T | 3/8/2016 |
| U | 4.02 in |
| Note | Air Actuator, Air Driven Valve, Air Operator, Air to Close, Air to Open, Double Acting, Dual Rack and Pinion Design, NEMA 4, NEMA 4X, Pneumatic Operator, Pneumatic Valve, Quarter-Turn Air Actuator, Quarter-Turn Pneumatic Actuator |
| Body Material | Aluminum, Anodized Finish Epoxy Coated |
| Height - H | 6.30 in |
| B Dimensions | 5.51 in |
| D Dimensions | 2.36 in |
| E Dimensions | 2.36 in |
| F Dimensions | 0.55 in |
| G Dimensions | 0.79 in |
