Brass / Bronze Ball Valves

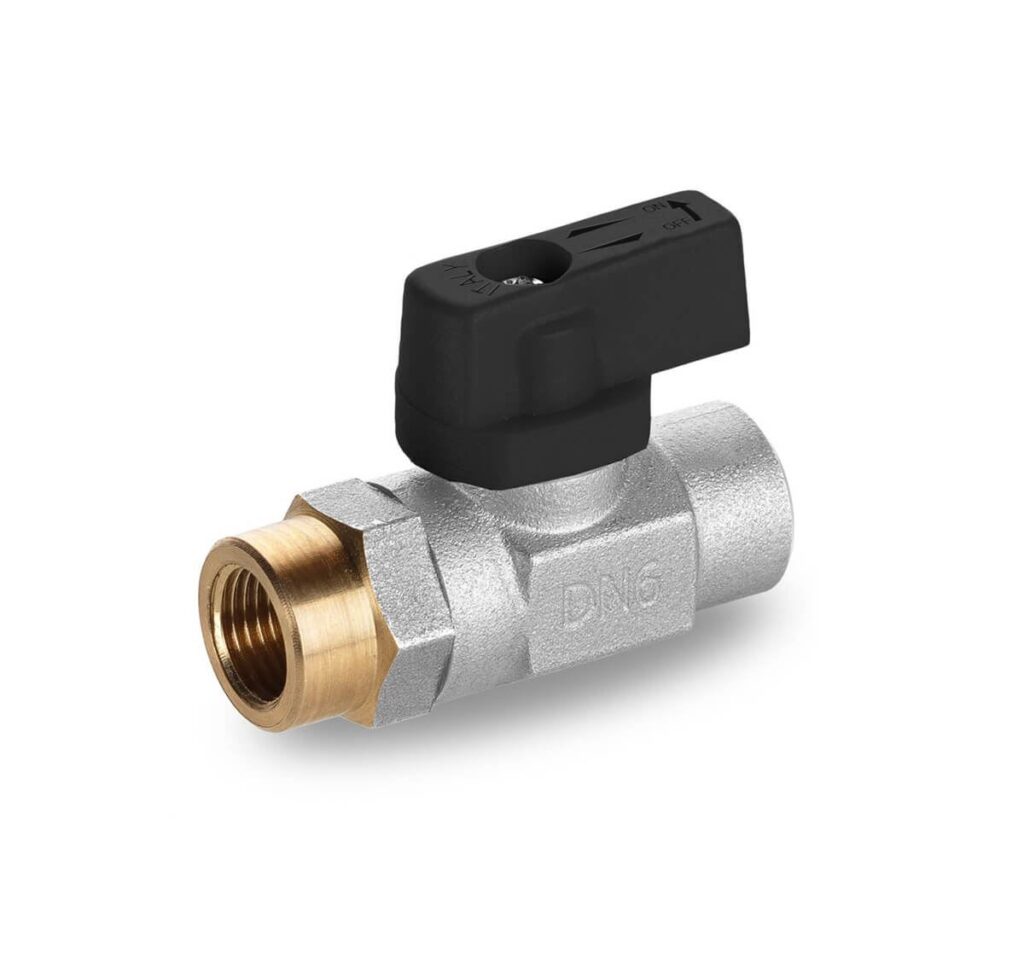

HIGH PRESSURE FORGED BRASS MINI VALVE – VUH SERIES

VUH Series brass mini valves are for high-pressure small line fluid and gas control applications. The hot-forged sand-blasted brass body, and dual-sealed chrome-plated brass ball, with no metal-to-metal moving parts, is maintenance-free and designed to withstand high-pressure applications (900 PSI) and harsh environments (-4° to 200°F)

Key Benefits:

• Rugged Mini Ball Valve for High Pressure Applications
• Meets EN 12165 Finest Brass Specification
• Rugged Hot Forged Construction
• PTFE Self-Lubricating Seats

Brass 3-Way Valve - VYH Series

VYH Series Three-way utility ball valve has a 90deg “L” port design for diverting flow from 1 inlet to two outlet ports. Features include chrome-plated brass and double O-ring stem packing for reduced torque, blowout-proof stem, four seat design and NPT end connections. ISO 5211 mounting pad makes automation easy! See our DynaMatic EYH and PYH series for assemblies. Not suitable for steam applications.

Key Benefits:

• ISO 5211 direct mount pad
• Self-adjusting Stem packing
• Blowout Proof Stem Design
• Low Friction Stem Seals
• T pattern available upon request

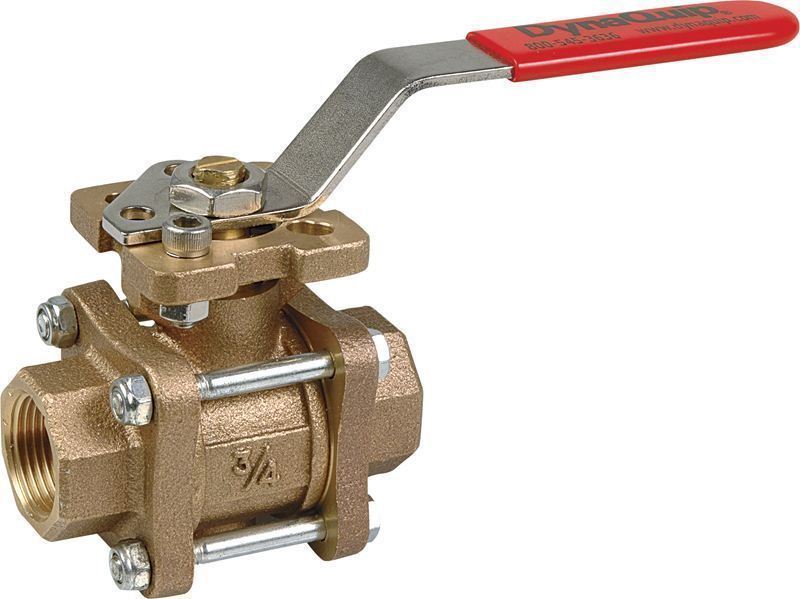

Bronze 3-Piece Bolted In-Line Valve - VVA Series

VVA Series ball valves are designed for general media service applications where simple and fast installation and maintenance is key! These three-piece bolted in-line valves feature corrosion-resistant Bronze Body and stainless steel ball and stem for maximum durability. Avail in Female NPT threads with latch lock handles standard. Valves feature a unique adjustable stem packing to allow adjustment without handle or actuator removal. ISO 5211 mounting pad makes automation easy! See our DynaMatic EVA and PVA series for assemblies.

Key Benefits:

• Heavy Duty Construction
• Simple, Fast Installation and Maintenance
• Unique adjustable Stem Packing
• 316 SS Ball and Stem
• Latch-Lock handle standard.

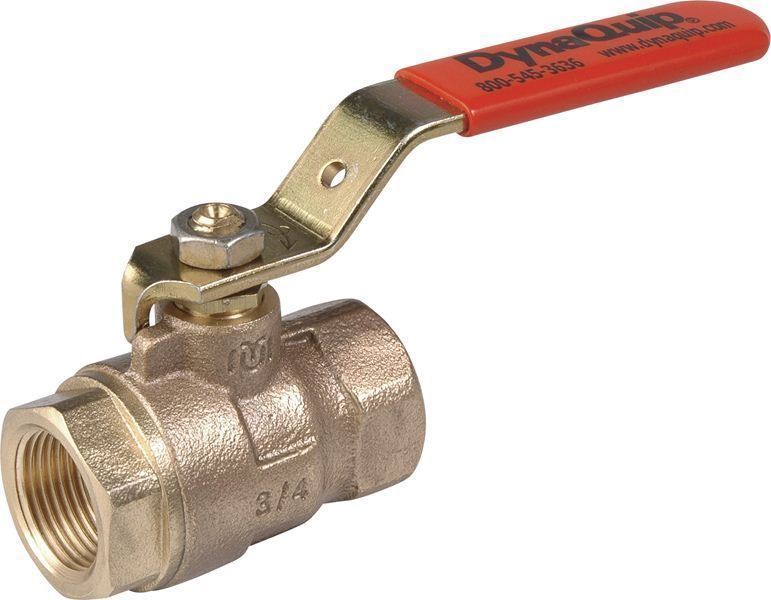

Bronze 2-Piece Screwed Body Valve - VMA Series

VMA Series ball valves offer maximum strength, durability, and maintenance-free operation all in one package! Industrial two-piece bronze valves are precision machined and designed to outlast lightweight competitors.

Key Benefits:

• Corrosion-Resistant Bronze Body Construction
• Reinforced PTFE Seats and Seals
• Blowout-Proof Stem Design with Adjustable Packing
• Unique adjustable Stem Packing

Options:

• Stainless Steel Ball and Stem (OA)
• Latching Lockout Handle Kit (OP)

Brass 2-Piece Screwed Body Valve - VMH Series

VMH Series ball valves offer the perfect balance between performance and cost. This Industrial two-piece, forged brass valves are precision machined and designed to handle your most demanding brass appropriate application. With multiple options and approvals including UL® for LP Gas, AGA® and CGA® for Natural Gas, and Factory Mutual for Fire Protection, this valve is the most widely used brass quarter-turn manual valve we offer. Need this valve automated? Look at our DynaMatic EHH and PHH series for a similar valve assembly.

Key Benefits:

• Two-piece forged Brass and Corrosion-Resistant Handle
• Reinforced PTFE Seats and Seals
• Blowout-Proof Stem Design with Adjustable Packing
• Approvals include: UL® for LP Gas, AGA® and CGA® for Natural Gas, and Factory Mutual for Fire Protection

Options:

• Latching Lockout Handle Kit (OP)
• “Gull Wing” Tee Handle (OE)

Brass 2-Piece Safety Exhaust Valve - VMH Exhaust Series

VMH Exhaust Series ball valves automatically vent residual air on the downstream side when closed. Tamper-resistant lockout/tag-out design for additional safety and security. Available in FNPT X FNPT or Threaded exhaust port for mounting mufflers. Heavy-duty forged brass, blowout-proof stem, and orange safety handle for additional safety and durability. Meets OSHA req. 1910.147 for energy isolating and lockout devices.

Key Benefits:

• Two-piece forged Brass and Corrosion-Resistant Handle
• Reinforced PTFE Seats and Seals
• Meets OSHA req. 1910.147 for energy isolating and lockout devices.
• 5/16” shackle size available upon request

Options:

• Threaded muffler air silencer available (pn. AV.M1) for noise reduction and operator shielding from airline contaminants.
• Exhaust Tubing (pn. AV.XT1) for directing exhaust air, condensation and contaminants to an appropriate location
• Multiple Lockout Clasp (pn. AV.LC1) works in association with OSHA lockout/tag-out regulation for multiple operator lockout.

Brass 1-Piece Mini Valve - VNH Series

VNH Series mini ball valves are for small line fluid and gas control applications. Industrial quality, one-piece brass bar stock design chrome plated for corrosion resistance. Multi-directional operation.

Key Benefits:

• Space Saving Design
• PTFE Seats, Viton® Stem Seals
• UL Approved for Refrigerant
• Corrosion-Resistant Nylon Wing Handle

Options:

• Available in FxF or MxF Threads

Low Lead Brass 2 PC Screwed Body Valve - VMG Series

For Potable Water Applications (NSF61g)
600 PSI CWP
Full Port 1/2" - 2"

VMG Series valves are certified NSF61g to meets current No-Lead Laws CA1953 and VT S152 as well as “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation” effective January 2014.

• BODY - Hot forged sand blasted, unplated Lead-Free (NSF61-G) brass body
• BALL - Chrome plated Lead-Free brass ball for longer life
• STEM - Reinforced PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance. Blowout-proof unplated Lead-Free brass stem
• SEALS - Glass filled pure PTFE self-lubricating seats with flexible-lip design
• THREAD - Female NPT taper ANSI B.1.20.1

QUALITY FEATURES

• Dual sealing system allows valve to be operated or installed in either direction making installation easier
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Nylon grip Carbon steel handle can be removed with valve in service.
• Certified NAF61g to meets No-Lead Laws CA1953 and VT S152 as well as effective 2014 “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation.

DynaQuip® remains an industry leader by providing lead-free solutions for manual and automated valve applications for potable water. See our Lead-Free Solutions section for additional information and qualifying products.
