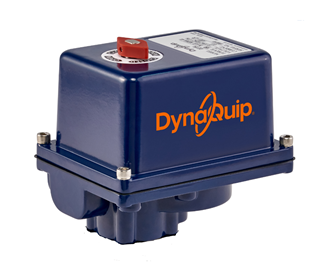

DE154H, Electric Actuator - DE Series - 0 - 300 in·lbs

Voltage 12-24V AC/DC
Torque 150 in·lb
Height 5.18 in
Width 4.24 in
Length 5.66 in
Weight 4.00 lb
Type Electric, Quarter-Turn, Reversing, Permanent Split Capacitor
Enclosure Type NEMA 4 / NEMA 4X Weatherproof/Corrosion Resistant Housing
Addl Voltage 24 VDC
Addl Voltage 1 12 VDC
Phase 1
Temperature Range - Ambient -40 to 150 ºF
Note Electric, Quarter-Turn, Reversing, Permanent Split Capacitor, Parrallel Wiring, Damper Applications
Material Die-Cast Aluminum, Epoxy Coating
Application Ball Valves, Gate Valves, Globe Valves, Plug Valve, Dampers, Quarter-turn Valves, HVAC controls, Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
Standard DE Series Features
  • Quarter Turn Control with Remote Indication of End of Travel
  • Wire in parallel (Independent Circuits not Necessary)
  • Quick setting –Easy Access Cams
  • Type 316 Stainless Steel Output shaft
  • NEMA 4 and 4X Weatherproof and Corrosion-Resistant Housing and Cover
    • Durable Die-Cast Aluminum Housing
    • Corrosion-Resistant Epoxy Polyurethane Coating and Stainless Steel Fasteners
  • Heavy Duty Heat Treated Pinion Gearing
    • Lubricated for Life
  • Local Position Indication
  • 50% Duty Rated, Long Life Reserving Motors
    • Thermal Overload Protection
  • ISO 5211 Shaft and Mounting Dimensions (F03 – F05 Configurations)
  • Can be Mounted in Any Position or Orientation
Optional DE Series Features
  • Multiple voltages available including 120 VAC, 220 VAC (1 Phase), and Low Voltage (12 VDC, 12 VAC, 24V DC, 24 VAC choose-in-field).
  • Auxiliary Limit Switches to indicate various valve positions remotely, or to stop the valve at intermediate positions, or to control other pieces of equipment, such as pumps.
  • NEMA 7 and NEMA 9 to meet specific environmental requirements, such as explosion proof or high-pressure wash down.
  • Timer for open/close function based on intervals.
Mount Type ISO F04
