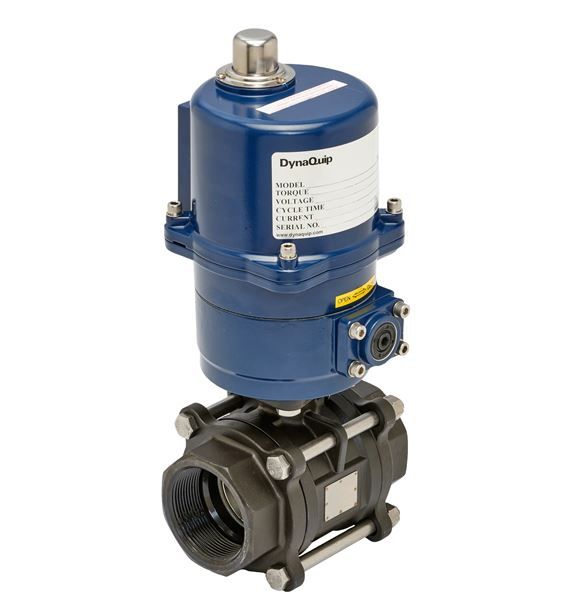

E3C25AJE21H, 3PC CS BV LOW VOLTAGE

Valve Size 1 in
Electric Voltage 24 VAC, 24 VDC, 12 VDC
Series E3C
Operator Actuator
Actuator Type DE154
Valve Type Ball
Thread Type FNPT
Operating PSI(D) 500 psi
Valve CWP 1000 psi
Porting Style Full
Port Opening Size 1
Temperature Range - Media -20 to 370 ºF
Temperature Range - Ambient -40 to 150 ºF
Body Style 3 Piece
Number of Ports 2
Valve Body Material Carbon Steel
Valve Construction Carbon Steel
Stem Seal Type PTFE/Viton®
Body Finish Carbon Steel
Ball Material 316 Stainless Steel
Seal Type PTFE/Viton®
Seat Material RTFE
Stem Material 316 Stainless Steel
A Dimensions 3.54 in
C Dimensions 0.79 in
Application Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
Features
  • NPT Female Threaded Ends (ASME B1.20.1) or Socket Weld Connections (ANSI B16.11)
  • Carbon Steel (A216-WCB) Investment Cast Construction
  • RTFE Seats, Viton® O-Ring Stem Seals
  • Swing-Out Design for Quick Repair
  • NEMA 4/4X Actuator
The E3C DynaMatic Series of electrically actuated carbon steel valves offers an economical and rugged option for oil and agricultural automated applications using hydraulic or petrochemical medias. Three-piece design is available in FNPT and offers flexibility and advanced maintenance options to increase the economic life of your equipment.

The E3C Series uses our DE and MA Series electric actuators available in 115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
