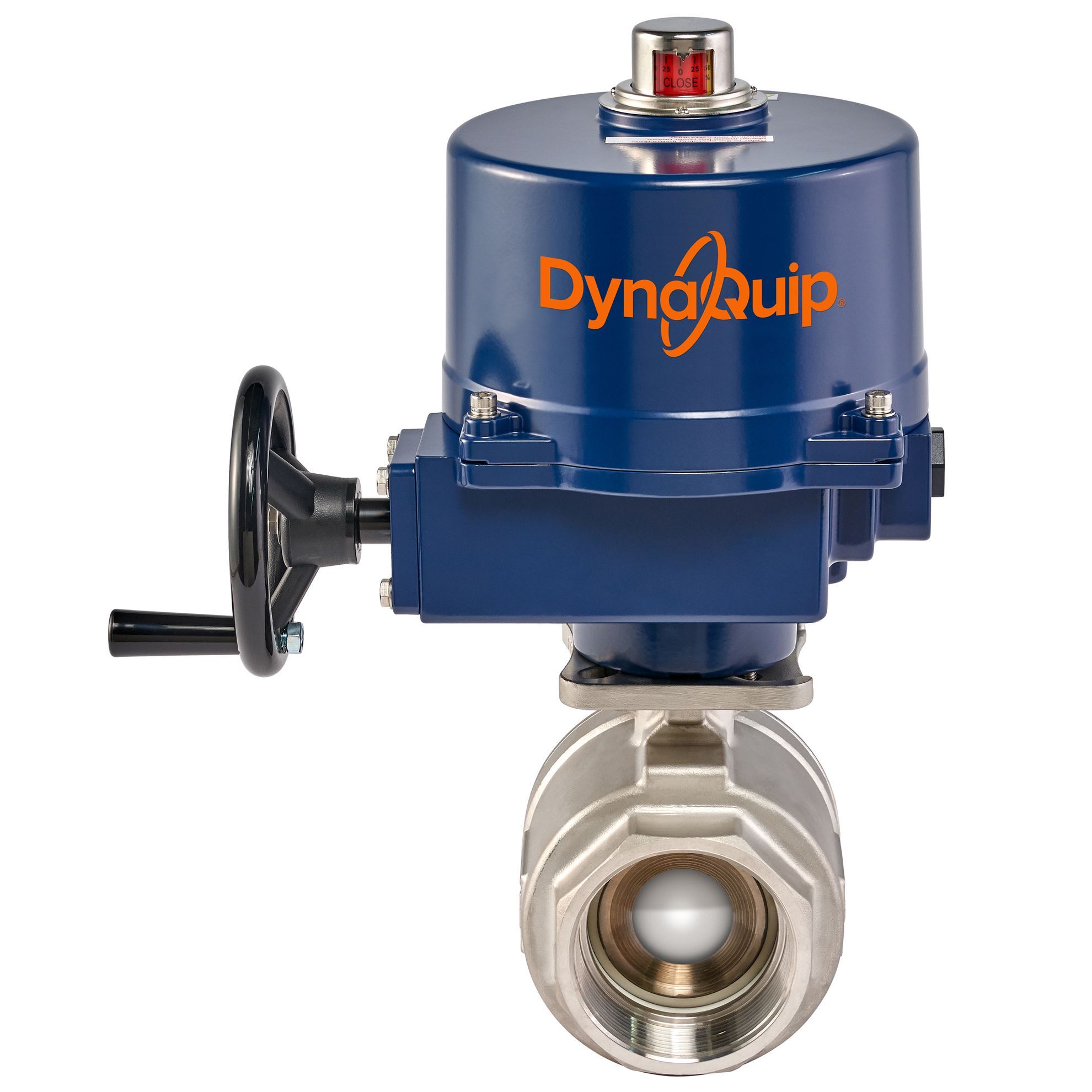

EAS SERIES - 2 PC High Pressure Stainless Steel Ball Valve - Electric Actuator
The EAS Series of electric automated stainless-steel ball valves are designed for high-pressure applications. This series includes our DE, MA, and JE electric actuators. They can be ordered in pre-sized and preassembled automation packages to suit your specifications. The ISO 5211 direct mounting provides accurate alignment and a more compact size compared to traditional actuator mounting styles. These automated valves are available in 12 to 240 VAC/VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
Features Include:
- ISO 5211 Direct Mounting
- Full Port
- NPT Female Threaded Ends
- Stainless Steel (CF8M) Construction
- Delrin Seats
Sort by
Display
per page
| Item # | Valve Size | Electric Voltage | Actuator Type | Valve Type | Operating PSI (D) | Seat Material | Body Style | Seal Type | List Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EAS21ARJE2S | 1/4 in | 24-240 VAC 24-135 VDC |
AJE2S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS22ARJE2S | 3/8 in | 24-240 VAC 24-135 VDC |
AJE2S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS23ARJE2S | 1/2 in | 24-240 VAC 24-135 VDC |
AJE2S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS24ARJE3S | 3/4 in | 24-240 VAC 24-135 VDC |
AJE3S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS25ARJE3S | 1 in | 24-240 VAC 24-135 VDC |
AJE3S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS26ARJE5S | 1 1/4 in | 24-240 VAC 24-135 VDC |
AJE5S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS27ARJE7S | 1 1/2 in | 24-240 VAC 24-135 VDC |
AJE7S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS28ARJE7S | 2 in | 24-240 VAC 24-135 VDC |
AJE7S | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS21ARE23 | 1/4 in | 120 VAC | DE156 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS22ARE23 | 3/8 in | 120 VAC | DE156 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS23ARE24 | 1/2 in | 120 VAC | DE304 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS24ARE24 | 3/4 in | 120 VAC | DE304 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS25ARE24 | 1 in | 120 VAC | DE304 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS26ARE07 | 1 1/4 in | 120 VAC | MA4 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS27ARE01 | 1 1/2 in | 120 VAC | MA7 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
|
| EAS28ARE01 | 2 in | 120 VAC | MA7 | Ball | 3000 PSI | Delrin® | 2 Piece | PTFE |
Quote
|
