Additional information
| Porting Style | Full |
|---|---|
| Stem Seal Type | PTFE |
| Seat Material | EPDM |
| Temperature Range - Media | -4°F to +158°F |
| Operating PSI (D) | 230 PSI |
| Actuator Type | MA4 |
| Valve Size | 4 in |

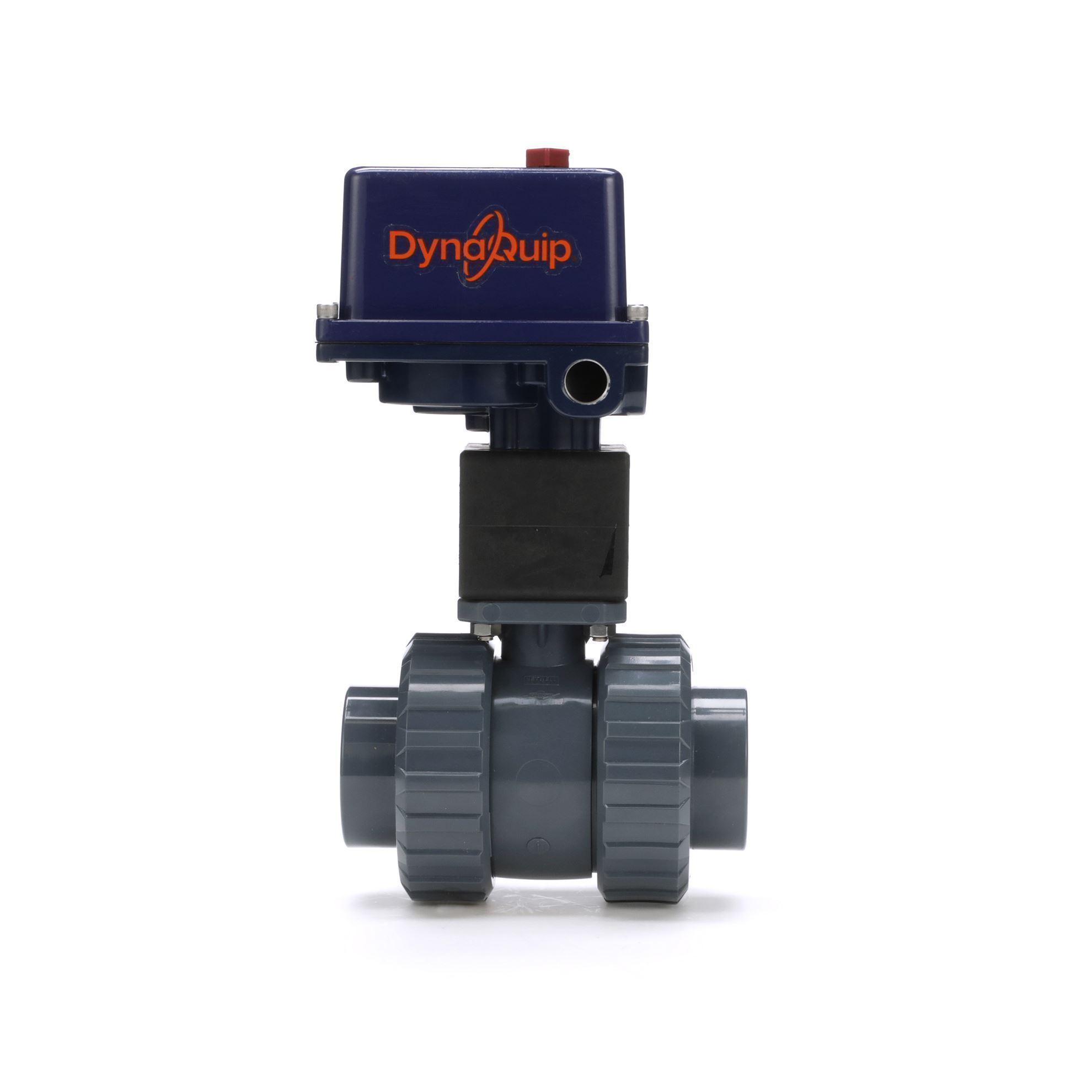

ECP2BZ5E07, Electric Automated Bi-Directional PVC Ball Valve
Description
DynaQuip’s ECP Series of air automated bi-directional PVC ball valves are perfect for applications using PVC piping, such as construction and agriculture. Electric automated PVC valves offer a lightweight solution that wont rust or corrode.
PVC Ball Valve Features
• PVC body and ball
• Full port
• PTFE seals
• EPDM seats standard, VITON optional
• Electric and pneumatic actuator operation
• Max pressure 232 PSI
• True-Union end connections
• Ends – Standard – Slip-Fit (Glue Ends) Optional NPT Female
• Sizes – 2-Way ½ to 4” 3-Way 1” to 3”
