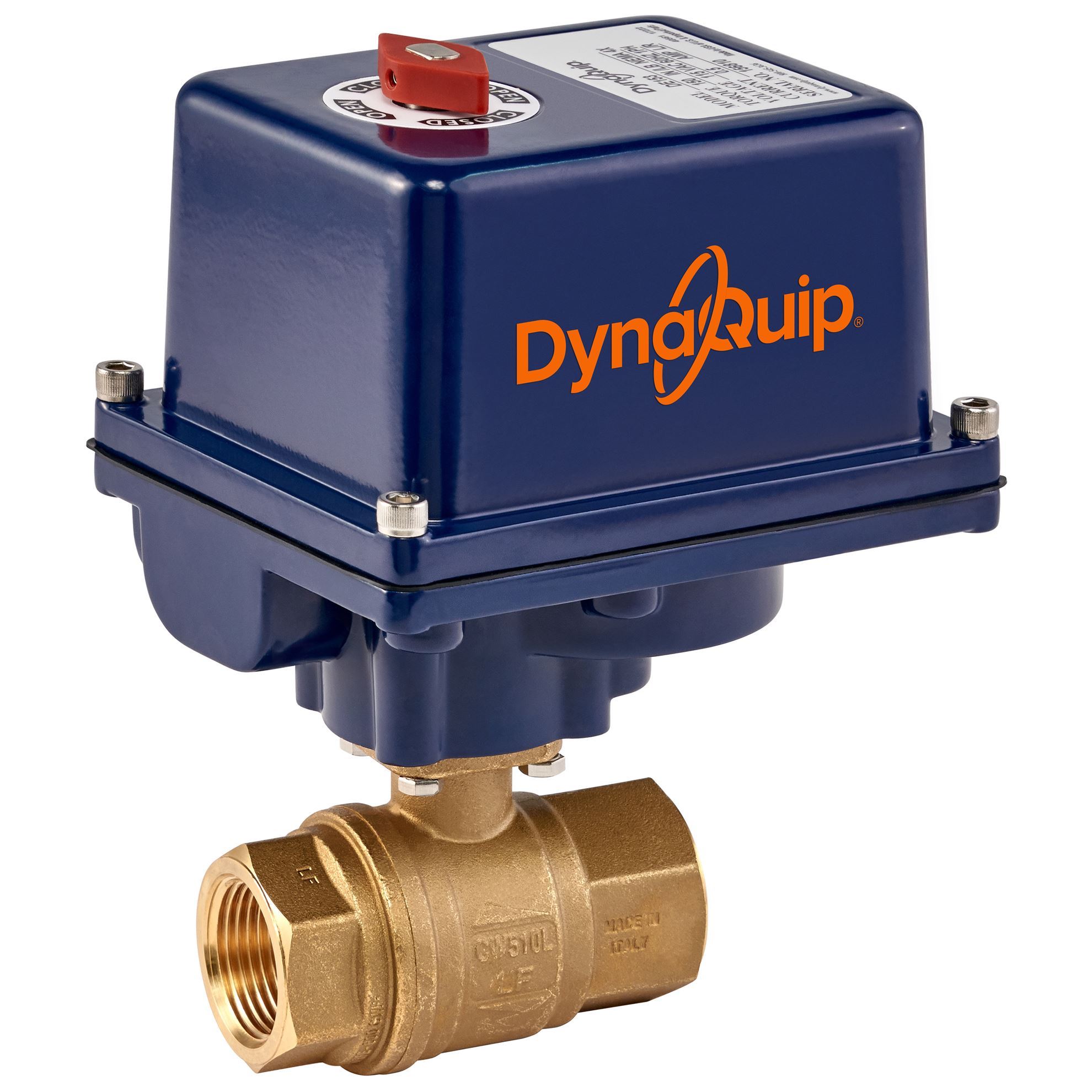

EHH23ATE20H, 2PC BR ELEC LOW VOLTAGE

EHH23ATE20H, 2PC BR ELEC LOW VOLTAGE

SKU: EHH23ATE20H Categories: , ,
Printable Page
Email This Page
Save To Favorites
EHH Drawing
DE Series Manual with Wiring

Additional information

Valve Size

1/2 in
Electric Actuator Type

On/Off
Actuator Type

DE153H
Thread Type

FNPT
Operating PSI (D)

300 psi
Valve CWP

600 psi
Porting Style

Full
Temperature Range - Media

-20 to 370 ºF
Temperature Range - Ambient

-40 to 150ºF
Valve Body Material

Brass
Seat Material

RTFE/Viton
Seal Type

PTFE/Viton®
Electric Voltage

12-24 VAC/DC

Description

The DynaMatic EHH Series of electrically actuated brass valves offers an excellent option for automated applications requiring durable yet economical brass. These automated valves fit a wide range of applications, and all models are pre-sized for clean water, air, or light oil applications. Please contact customer service for recommendations and actuator sizing when dirty or severe service applications are needed. The EHH Series uses our DE and MA Series electrical actuators. The EHH Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.

Features Include:

  • NPT Female Threaded Ends
  • Forged Brass Construction
  • RTFE Seats, PTFE/Viton Stem Seals
  • Bottom Loaded Stem
  • ISO 5211 Direct Mounting
  • Full Port
