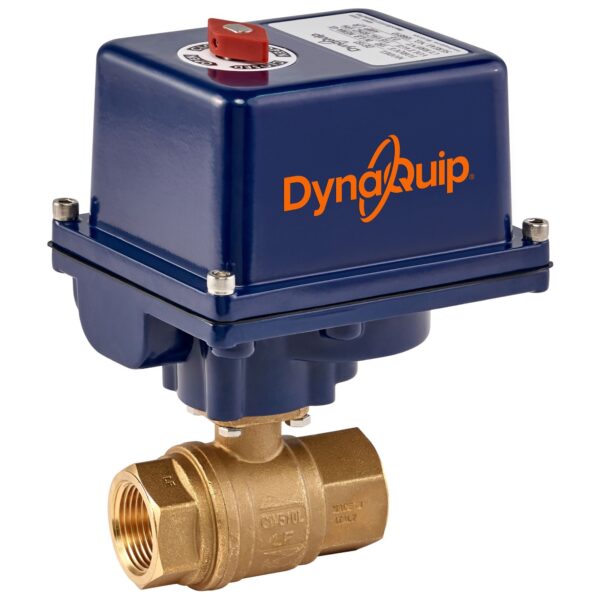

EHH25ATE20, 2PC BR ELEC BV 115VAC

EHH25ATE20, 2PC BR ELEC BV 115VAC

SKU: EHH25ATE20 Categories: , ,
Printable Page
Email This Page
Save To Favorites
EHH Drawing
DE Series Manual with Wiring

Additional information

Valve Size

1 in
Electric Voltage

115 VAC
Addl Voltage

Electric
Series

EHH
Operator

Electric Actuator
Actuator Type

ON/OFF
Actuator Part Number

DE153
Valve Type

Ball
Thread Type

FNPT
Operating PSI (D)

300 psid
Valve CWP

600 cwp
Porting Style

Full
Port Opening Size

.98 in
Temperature Range - Media

-20 to 370 ºF
Temperature Range - Ambient

-40 to 150ºF
Weight

5.81
Body Style

2 Piece
Number of Ports

2
Valve Body Material

Brass
Valve Construction

2 Piece
Stem Seal Type

Viton
Body Finish

Forged Brass
Ball Material

Chrome Plated Brass
Seat Material

RTFE/Viton
Seal Type

Viton
Stem Material

Nickel Plated Brass
A Dimensions

3.56 in
C Dimensions

.98 in
D Dimensions

1.67 in
F Dimensions

5.66 in
G Dimensions

4.24 in
H Dimensions

5.18 in

Description

The DynaMatic EHH Series of electrically actuated brass valves offers an excellent option for automated applications requiring durable yet economical brass. These automated valves fit a wide range of applications, and all models are pre-sized for clean water, air, or light oil applications. Please contact customer service for recommendations and actuator sizing when dirty or severe service applications are needed. The EHH Series uses our DE and MA Series electrical actuators. The EHH Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.

Features Include:

  • NPT Female Threaded Ends
  • Forged Brass Construction
  • RTFE Seats, PTFE/Viton Stem Seals
  • Bottom Loaded Stem
  • ISO 5211 Direct Mounting
  • Full Port
