Additional information

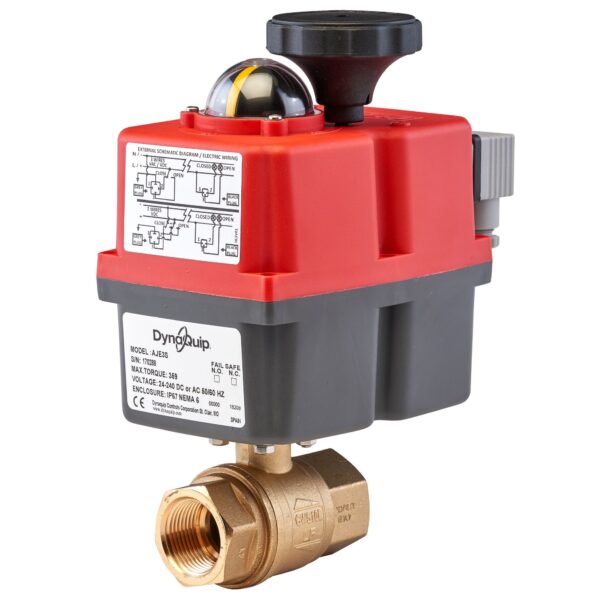

| Actuator Model | AJE2S |
|---|---|
| Actuator Type | ON/OFF |
| Application | Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown |
| Ball Material | Chrome Plated Brass |
| Body Finish | Forged Brass |
| Body Style | 2-Piece |
| Number of Ports | 2 |
| Operating PSI(D) | 300 psi |
| Operator | Electric Actuator |
| Porting Style | Full |
| Seal Type | PTFE/Viton® |
| Seat Material | RTFE/Viton |
| Series | EHH |
| Stem Material | Nickel Plated Brass |
| Stem Seal Type | Viton |
| Temperature Range - Ambient | -4 to 150°F |
| Temperature Range - Media | -4 to 200 °F |
| Thread Type | FNPT |
| Valve Body Material | Brass |
| Valve CWP | 600 psi |
| Valve Construction | Forged Brass |
| Valve Size | 1 in |
| Valve Type | Ball |
| Voltage | 24-240 VAC 24-135 VDC |
| Weight | 5.81 |
