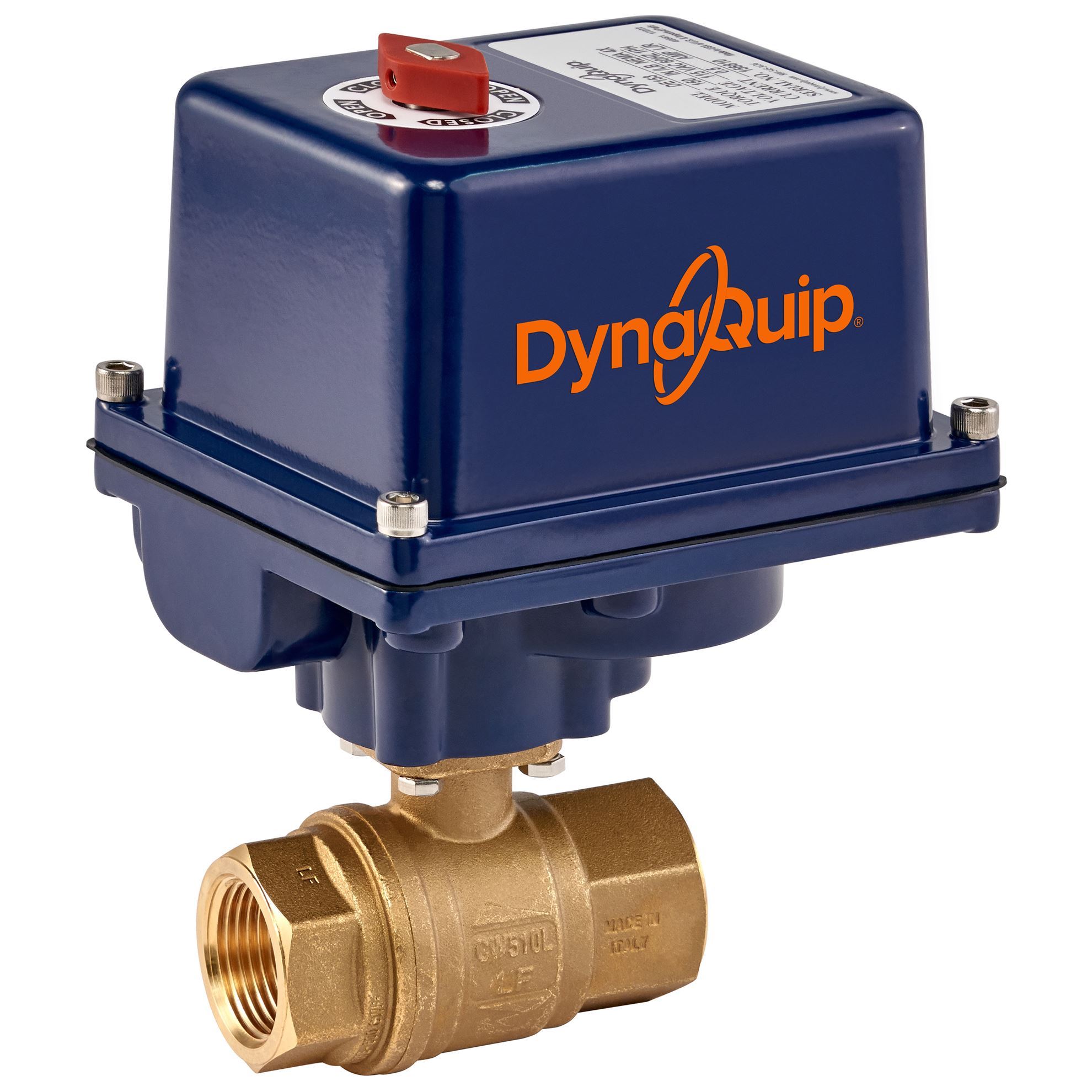

EHH28ATE25H, 2PC BR ELEC LOW VOLTAGE

EHH28ATE25H, 2PC BR ELEC LOW VOLTAGE

SKU: EHH28ATE25H Categories: , ,
Printable Page
Email This Page
Save To Favorites
EHH Drawing
DE Series Manual with Wiring

Additional information

Valve Size

2 in
Series

RTFE
Operator

300 psi
Actuator Type

DE305H
Actuator Part Number

5.31 in
Valve Type

2 in
Thread Type

FNPT
Operating PSI (D)

2
Valve CWP

Brass
Porting Style

2
Port Opening Size

Actuator
Temperature Range - Media

-40 to 150 ºF
Temperature Range - Ambient

PTFE/Viton®
Addl Voltage

Electric
Addl Voltage 1

24 VDC
Weight

Ball
Body Style

Brass
Number of Ports

5.18 in
Valve Body Material

FNPT
Valve Construction

Brass
Stem Seal Type

Stainless Steel
Body Finish

Chrome Plated Brass
Ball Material

3.77 in
Seat Material

RTFE/Viton
Seal Type

Full
Stem Material

EHH
A Dimensions

EHH28ATE25H
C Dimensions

2 Piece
D Dimensions

1.97 in
F Dimensions

12 VDC, 24 VAC, 24 VDC
G Dimensions

5.66 in
H Dimensions

4.24 in
Application

12 VDC
Electric Voltage

12-24 VAC/DC

Description

The DynaMatic EHH Series of electrically actuated brass valves offers an excellent option for automated applications requiring durable yet economical brass. These automated valves fit a wide range of applications, and all models are pre-sized for clean water, air, or light oil applications. Please contact customer service for recommendations and actuator sizing when dirty or severe service applications are needed. The EHH Series uses our DE and MA Series electrical actuators. The EHH Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.

Features Include:

  • NPT Female Threaded Ends
  • Forged Brass Construction
  • RTFE Seats, PTFE/Viton Stem Seals
  • Bottom Loaded Stem
  • ISO 5211 Direct Mounting
  • Full Port
