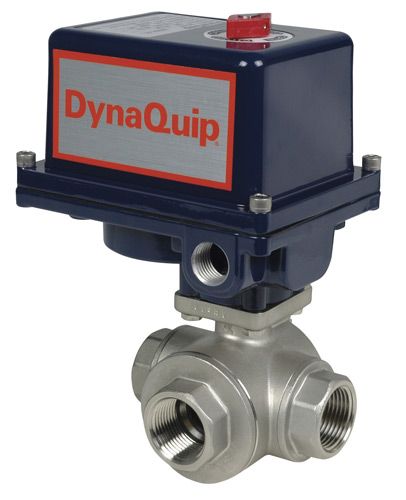

EYSA8AJE02, 3WAY SS ELECTRIC

Valve Size 2 in
Electric Voltage 120 VAC
Series EYSA
Operator Actuator
Actuator Type Electric
Actuator Part Number MA13
Valve Type Ball
Thread Type FNPT
Operating PSI (D) 300 psi
Valve CWP 800 psi
Port Opening Size 2
Temperature Range - Media -20 to 450 ºF
Temperature Range - Ambient -40 to 150 ºF
Weight 42.00 lb
Body Style 3-Way
Number of Ports 3
K 10.04 in
Valve Body Material Stainless Steel
Valve Construction Stainless Steel
Stem Seal Type P.E.E.K. (foodgrade)/Viton®/PTFE
Body Finish Stainless Steel
Ball Material 316 Stainless Steel
Seat Material RTFE
Seal Type PTFE/Viton®
Stem Material 316 Stainless Steel
A Dimensions 6.68 in
B Dimensions 4.61 in
C Dimensions 2.00 in
D Dimensions 3.34 in
E Dimensions 2.25 in
F Dimensions 3.63 in
G Dimensions 13.67 in
H Dimensions 13.00 in
J Dimensions 7.87 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
Porting Style L Port

The DynaMatic EYSA Series of electrically actuated stainless steel three-way valves offers and excellent option for automated diverter-type applications where corrosion-resistant stainless steel is required. The EYSA Series uses our DE and MA Series electric actuators. The EYSA Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.

Features Include:

  • 316 Stainless Steel Bodies and Trim
  • Full Port
  • 3-Way “L” Pattern Diverter Ball Valve
  • Four RTFE Seats Allow Flow in Any Direction
  • NPT Female Threaded Ends
  • Viton Stem Seals
  • ISO 5211 Direct Mounting
  • "T" Pattern Available
