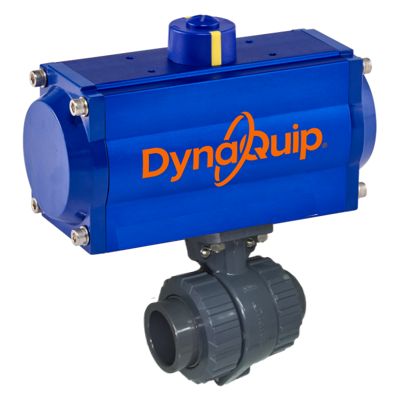

PCP26Z5DA063, Air Automated Bi-Directional PVC Ball Valve

Valve Size 1 1/4 in
Porting Style Full
Pneumatic Actuator Type Double Acting
Actuator Type HP063SR10
Valve Body Material PVC
Operating PSI (D) 230 PSI
WEIGHT LBS 5.7
Stem Seal Type PTFE
Seat Material EPDM

DynaQuip's PCP Series of air automated bi-directional PVC ball valves are perfect for applications using PVC piping, such as construction and agriculture.

These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls.

PVC Ball Valve Features

• PVC body and ball
• Full port
• PTFE seals
• EPDM seats standard, VITON optional
• Electric and pneumatic actuator operation
• Max pressure 232 PSI
• True-Union end connections
• Ends - Standard – Slip-Fit (Glue Ends) Optional NPT Female
• Sizes – 2-Way ½ to 4” 3-Way 1” to 3”
