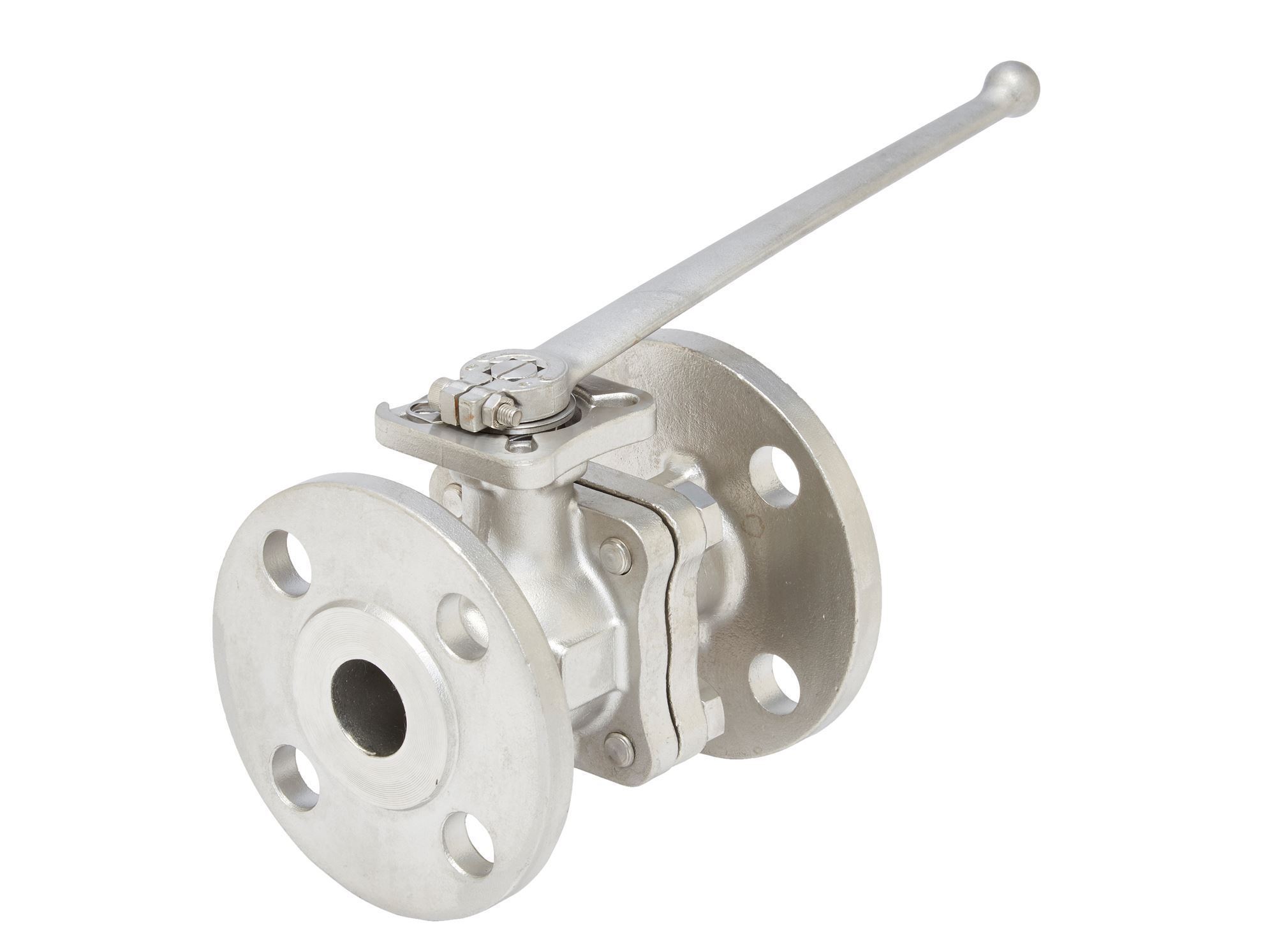

Stainless Steel 150 ANSI Flanged Valve - V5S Series
V5S Flanged Series ball valves are perfect for a wide range of applications where ANSI 150 flange is needed. This two piece A351-CF8M stainless steel investment cast body valve features a blow-out proof stem, anti-static device, and a fire safe design (test to API 607). ISO 5211 mounting pad makes automation easy! See our DynaMatic E5S-Flanged and P5S-Flanged series for assemblies.
Key Benefits:
- ISO 5211 direct mount pad provides accurate stem alignment and eliminates need for brackets.
- RTFE Seat, seal, and packing
- Spring system on stem.
Sort by
Display
per page
| Item # | Valve Size | Thread Type | Porting | A - Port Diameter | Temperature Range | Handle Type | List Price | |
|---|---|---|---|---|---|---|---|---|
| V5S2.EJ 1 1/2 | 1 1/2 in | 150 ANSI Flanged | Full | 1.50 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 1 1/4 | 1 1/4 in | 150 ANSI Flanged | Full | 1.18 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 1 | 1 in | 150 ANSI Flanged | Full | 0.94 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 1/2 | 1/2 in | 150 ANSI Flanged | Full | 0.59 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 2 1/2 | 2 1/2 in | 150 ANSI Flanged | Full | 2.52 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 2 | 2 in | 150 ANSI Flanged | Full | 1.97 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 3 | 3 in | 150 ANSI Flanged | Full | 2.99 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 3/4 | 3/4 in | 150 ANSI Flanged | Full | 0.79 in | -4°F to 392°F | Lever |
Quote
|
|
| V5S2.EJ 4 | 4 in | 150 ANSI Flanged | Full | 3.94 in | -4°F to 392°F | Lever |
Quote
|
