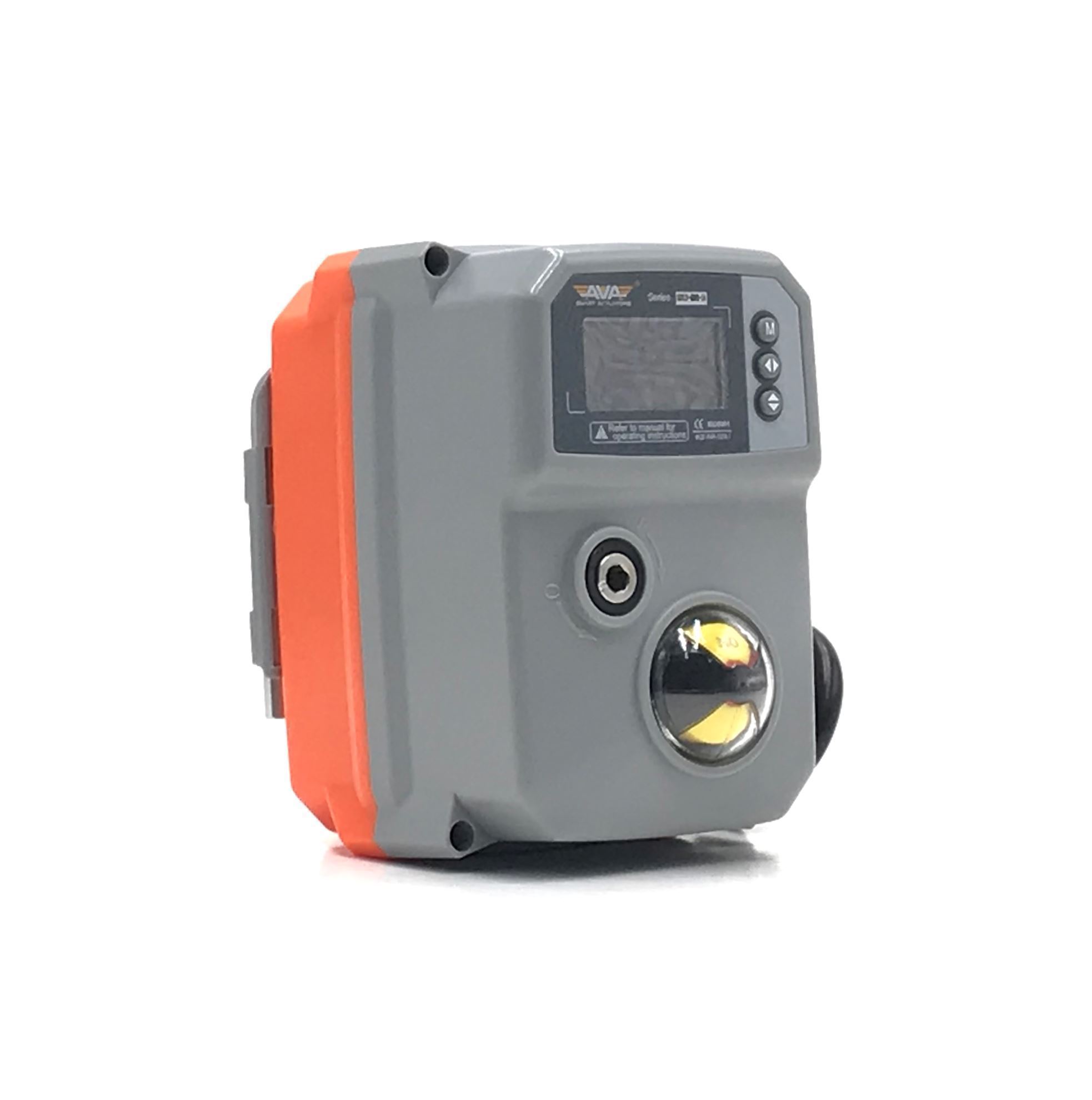

The ultra-compact standard AVA fits in the palm of your hand. It is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality.
| Actuator Type | Fail Safe |
|---|---|
| AVA Actuator | Smart |
| Voltage | 24 VDC/VAC |
| Torque Output Break/Run (in/lbs) | 1240 / 974 |
| Cycle Time (sec) | 10 SEC |
| STAR DRIVE /DEEP | 669 (17mm)/.70 |
| MOUNTING | F05, F07 |
| ENCLOSURE | IP67 |
| WEIGHT LBS | 4.9 |
AVA Series Standard Electric Actuators
The standard AVA is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality. The standard AVA is constructed traditionally with preset internal cams striking micro-switches to stop the reversible motor in the required positions.
AVA Series Features
