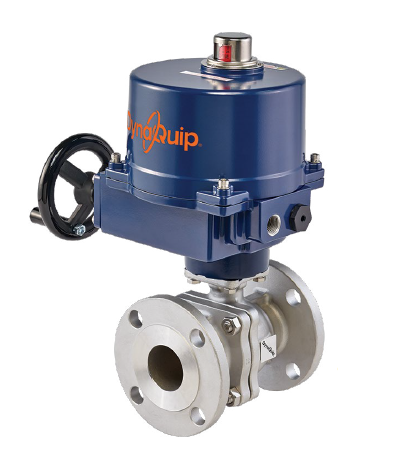

E5S SERIES - 2 PC Flanged Stainless Steel Ball Valve - Electric Actuator
The E5S Flanged Series from DynaQuip offers excellent options when a flanged connection is needed. The ball valve is constructed of 316 stainless steel, and can be used for general chemical and corrosive fluid applications. The E5S Series is also full port and features 150 lb. ANSI flanges. The E5S Series uses our DE and MA Series electric actuators, and are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.
Features Include:
- Body: ASTM A351-CF8M
- 150 ANSI v16.10 Flanged Connections
- Fire Test to API 607
- RTFE Seat/Seals
- Bottom Loaded Stem
- ISO 5211 Direct Mounting
- Full Port
Filter by attributes
Valve Size
Electric Voltage
REPLACEMENT OR OBSOLETE ITEM
Series
Operator
| Product | Valve Size | Electric Voltage | REPLACEMENT OR OBSOLETE ITEM | Series | Operator | List Price | |
|---|---|---|---|---|---|---|---|
| E5S2BEJE13G | 4 in | 460 VAC PH3 | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S2AEJE02G | 3 in | 460 VAC PH3 | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S2AEJE02F | 3 in | 230 VAC PH3 | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S2AEJE02E | 3 in | 24 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S2AEJE02D | 3 in | 12 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S2AEJE02C | 3 in | 24 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S2AEJE02B | 3 in | 220 VAC (1 Phase) | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S28EJE01D | 2 in | 12 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S28EJE01C | 2 in | 24 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S28EJE01E | 2 in | 24 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S29EJE01 | 2 1/2 in | 115 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S29EJE01B | 2 1/2 in | 220 VAC (1 Phase) | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S29EJE01C | 2 1/2 in | 24 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S29EJE01D | 2 1/2 in | 12 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S29EJE01E | 2 1/2 in | 24 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S29EJE01F | 2 1/2 in | 230 VAC PH3 | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S2AEJE02 | 3 in | 115 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S28EJE01B | 2 in | 220 VAC (1 Phase) | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S24EJE20 | 3/4 in | 115 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S24EJE20H | 3/4 in | 12 VDC, 24 VAC, 24 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S25EJE21 | 1 in | 115 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S25EJE21H | 1 in | 12 VDC, 24 VAC, 24 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S26EJE26 | 1 1/4 in | 115 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S26EJE26H | 1 1/4 in | 12 VDC, 24 VAC, 24 VDC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
| E5S27EJE07 | 1 1/2 in | 115 VAC | REPLACEMENT | E5S | Actuator | Quote | Request A Quote |
