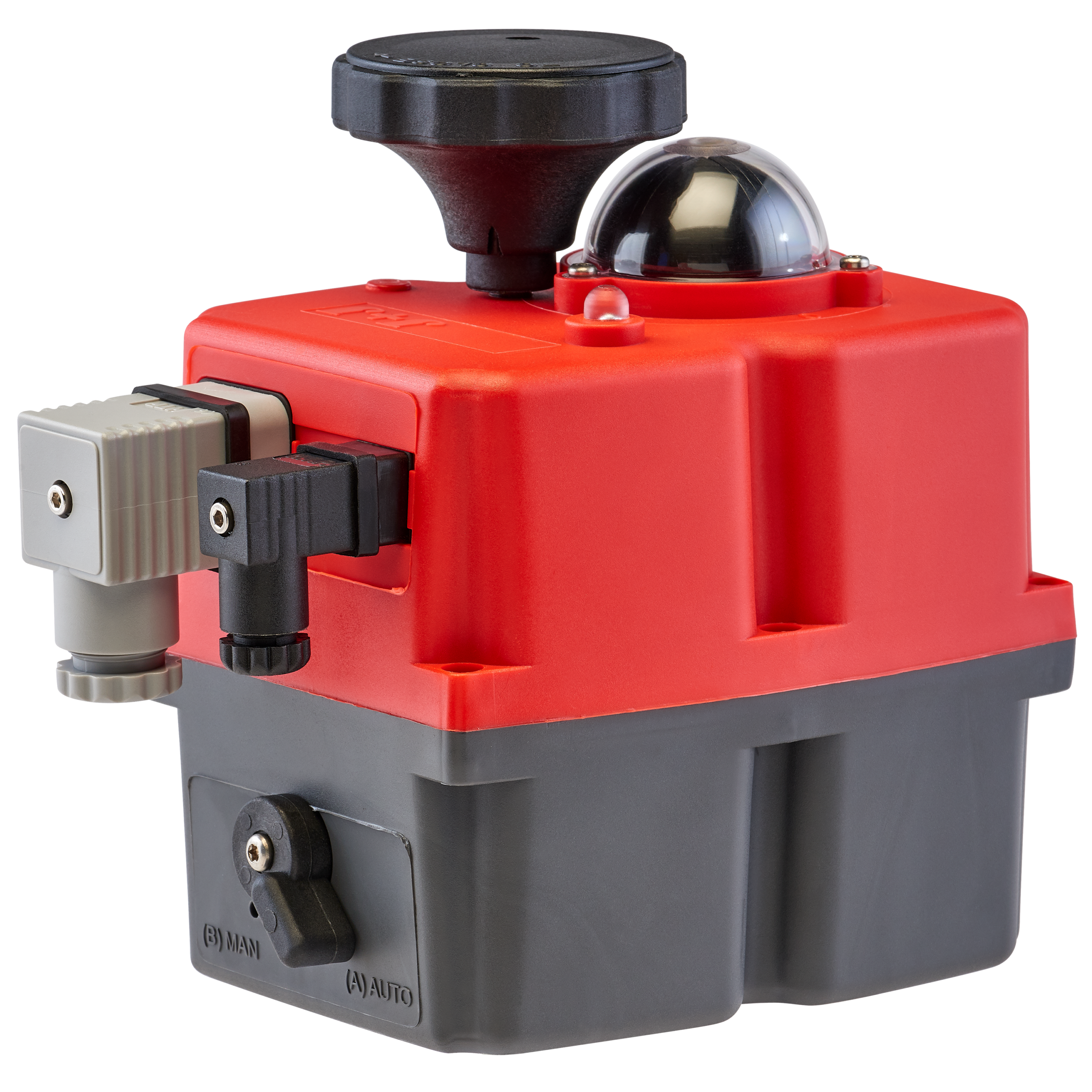

Multi-Voltage SMART Electric Actuators - JE Series

Multi-Voltage SMART Electric Actuators - JE Series
The innovative JE series of reversible electric actuators delivers the latest technology at an unmatched value. This feature-rich line was designed for ease-of-use and reliability. JE Series actuators are multi-voltage capable with automatic voltage sensing for AC or DC power supply, reducing the opportunity for user error. Standard features include a protective electronic torque limiter, emergency manual override, and an internal, thermostat-controlled, anti-condensation heater to help prevent damaging moisture build-up. External DIN plug connectors allow for quick and easy wiring without the need to open the unit, while practical and distinctive external indicators help to simplify operation and diagnostics. Additional factory-installed options are available.  JE Series actuators are lightweight, compact, and quick and easy to install. They are ideal for quarter-turn automation of ball valves, butterfly valves and dampers.

Key Features of the JE Series

  • Quarter-turn (90 ̊) reversible electric actuator
  • Multi-voltage capability
  • Automatic voltage sensing - for AC or DC power supply
  • Emergency manual override
  • Isolated end-of-travel limit switches
  • Automatic temperature control - internal thermostat, anti-condensation heater
  • External LED diagnostic light
  • Distinctive visual position indicator dome
  • Electronic torque limiter
  • Protected electrical supply
  • Easy wiring via external DIN plugs
  • IP67 Anti-corrosive, UV resistant, weatherproof enclosure
  • ISO 5211 Mounting Standard
  • CE Marked
  • Modulating or fail-safe options
Printable Page
Email This Page
Save To Favorites
Display
per page
Filter by attributes
Voltage
12 VAC/VDC | 24 - 240 VAC 24 - 135 VDC
Actuator Type
Fail-closed | Fail-open | Modulating | ON/OFF
ENCLOSURE
IP67
Cycle Time (sec)
10 SEC | 14 SEC | 15 SEC | 30 SEC | 32 SEC | 34 SEC | 58 SEC
Torque Output (in/lbs)
1504 / 1239 | 221 / 177 | 3097 / 2655 | 359 /309 | 530 / 486 | 796 / 752
ProductVoltageActuator TypeENCLOSURECycle Time (sec)Torque Output (in/lbs)
AJE7V55012 VAC/VDCModulatingIP6732 SEC796 / 752Distributor Quote
AJE7V00D12 VAC/VDCFail-openIP6732 SEC796 / 752Distributor Quote
AJE7V00F12 VAC/VDCFail-closedIP6732 SEC796 / 752Distributor Quote
AJE7S55024 - 240 VAC 24 - 135 VDCModulatingIP6730 SEC796 / 752Distributor Quote
AJE7S00D24 - 240 VAC 24 - 135 VDCFail-openIP6730 SEC796 / 752Distributor Quote
AJE7S00F24 - 240 VAC 24 - 135 VDCFail-closedIP6730 SEC796 / 752Distributor Quote
AJE5V55012 VAC/VDCModulatingIP6715 SEC530 / 486Distributor Quote
AJE5V00D12 VAC/VDCFail-openIP6715 SEC530 / 486Distributor Quote
AJE5S55024 - 240 VAC 24 - 135 VDCModulatingIP6714 SEC530 / 486Distributor Quote
AJE5V00F12 VAC/VDCFail-closedIP6715 SEC530 / 486Distributor Quote
AJE5S00D24 - 240 VAC 24 - 135 VDCFail-openIP6714 SEC530 / 486Distributor Quote
AJE5S00F24 - 240 VAC 24 - 135 VDCFail-closedIP6714 SEC530 / 486Distributor Quote
AJE3V55012 VAC/VDCModulatingIP6710 SEC359 /309Distributor Quote
AJE3V00D12 VAC/VDCFail-openIP6710 SEC359 /309Distributor Quote
AJE3V00F12 VAC/VDCFail-closedIP6710 SEC359 /309Distributor Quote
AJE3S55024 - 240 VAC 24 - 135 VDCModulatingIP6710 SEC359 /309Distributor Quote
AJE3S00D24 - 240 VAC 24 - 135 VDCFail-openIP6710 SEC359 /309Distributor Quote
AJE3S00F24 - 240 VAC 24 - 135 VDCFail-closedIP6710 SEC359 /309Distributor Quote
AJE30S55024 - 240 VAC 24 - 135 VDCModulatingIP6758 SEC3097 / 2655Distributor Quote
AJE30S00D24 - 240 VAC 24 - 135 VDCFail-openIP6758 SEC3097 / 2655Distributor Quote
AJE30S00F24 - 240 VAC 24 - 135 VDCFail-closedIP6758 SEC3097 / 2655Distributor Quote
AJE2V55012 VAC/VDCModulatingIP6710 SEC221 / 177Distributor Quote
AJE2V00D12 VAC/VDCFail-openIP6710 SEC221 / 177Distributor Quote
AJE2V00F12 VAC/VDCFail-closedIP6710 SEC221 / 177Distributor Quote
AJE2S55024 - 240 VAC 24 - 135 VDCModulatingIP6710 SEC221 / 177Distributor Quote
