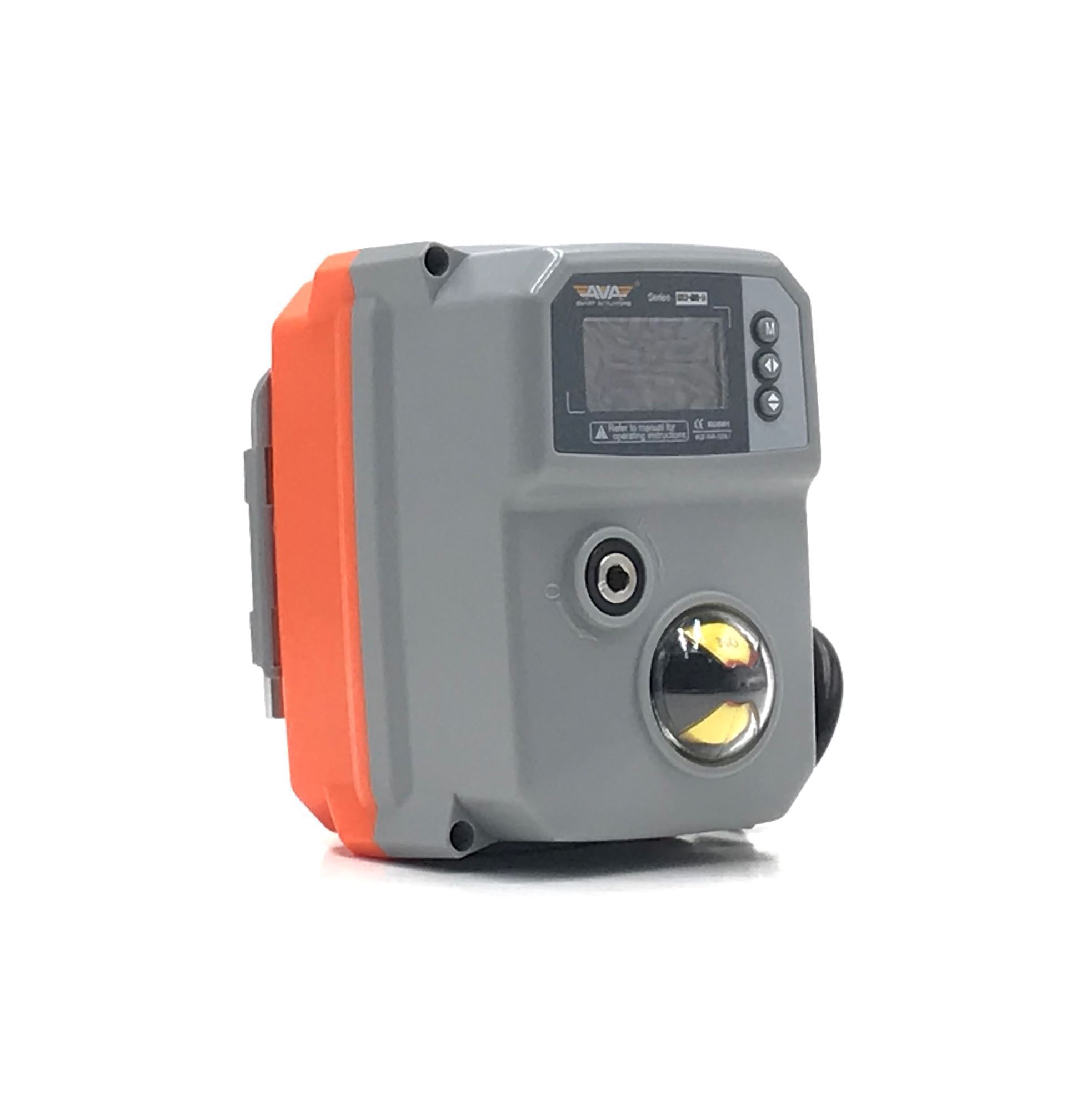

The ultra-compact standard AVA fits in the palm of your hand. It is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality.
| STAR DRIVE /DEEP | 551 (14mm)/.63 |
|---|---|
| ENCLOSURE | IP67 |
| MAX TORQUE IN/LBS BREAK / RUN | 532 / 443 |
| SPEED 90° | 15 SEC |
| WEIGHT LBS | 4.1 |
| Electric Actuator Type | Smart Fail Close |
| Voltage | 24 VDC |
| MOUNTING | F05, F07 |
| AVA Actuator | Smart |
AVA Series Standard Electric Actuators
The standard AVA is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality. The standard AVA is constructed traditionally with preset internal cams striking micro-switches to stop the reversible motor in the required positions.
AVA Series Features
