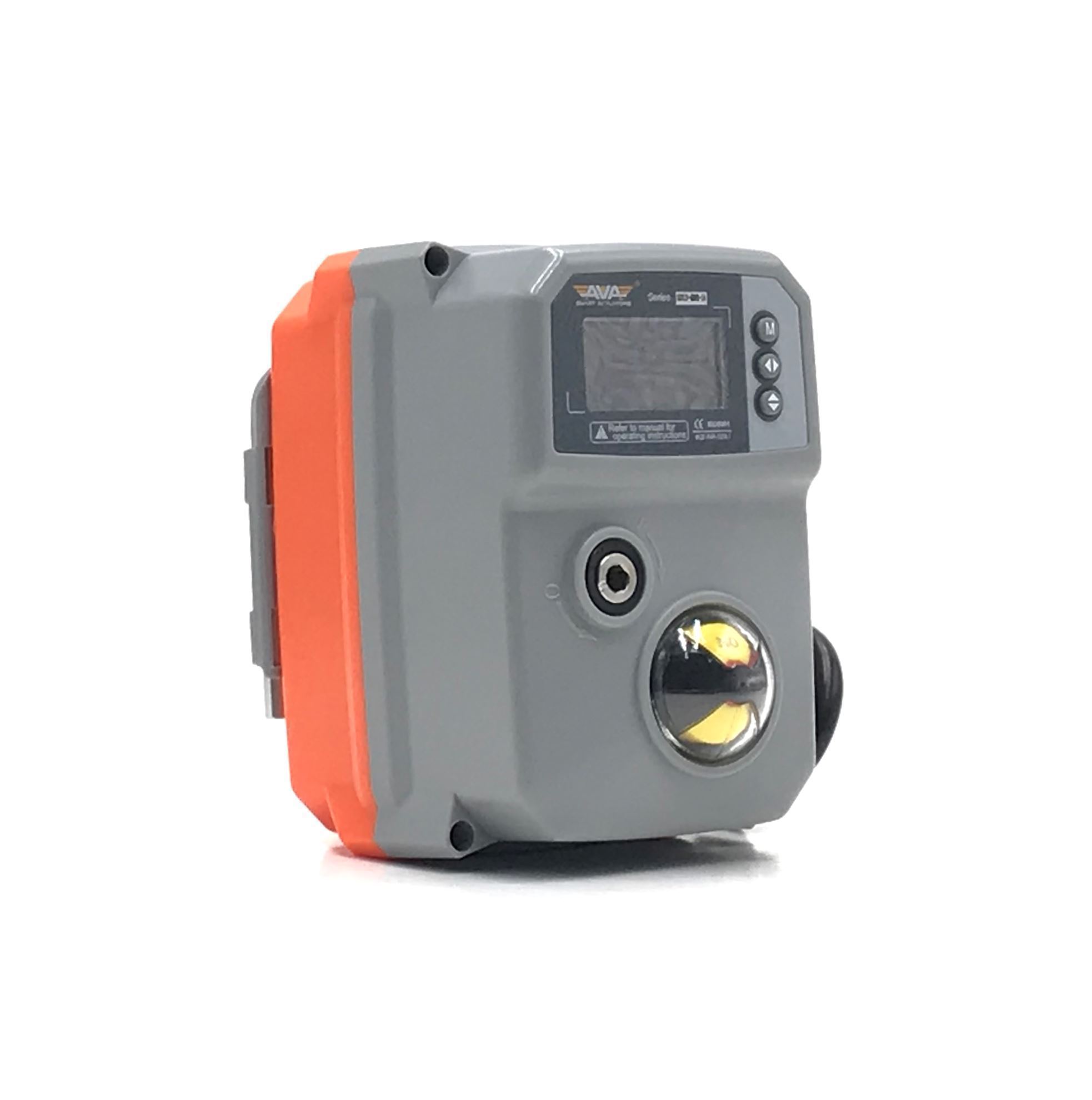

The ultra-compact standard AVA fits in the palm of your hand. It is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality.
| ENCLOSURE | IP67 |
|---|---|
| MOUNTING | F05, F07 |
| SPEED 90° | 10 SEC |
| WEIGHT LBS | 4.9 |
| STAR DRIVE /DEEP | 669 (17mm)/.70 |
| AVA Actuator | Smart |
| Voltage | 95-265 VAC 50/60Hz |
| MAX TORQUE IN/LBS BREAK / RUN | 1240 / 974 |
| Electric Actuator Type | Smart Modulating |
AVA Series Standard Electric Actuators
The standard AVA is the perfect solution for applications requiring minimal features. It is available with basic on/off, failsafe or hi speed functionality. The standard AVA is constructed traditionally with preset internal cams striking micro-switches to stop the reversible motor in the required positions.
AVA Series Features
