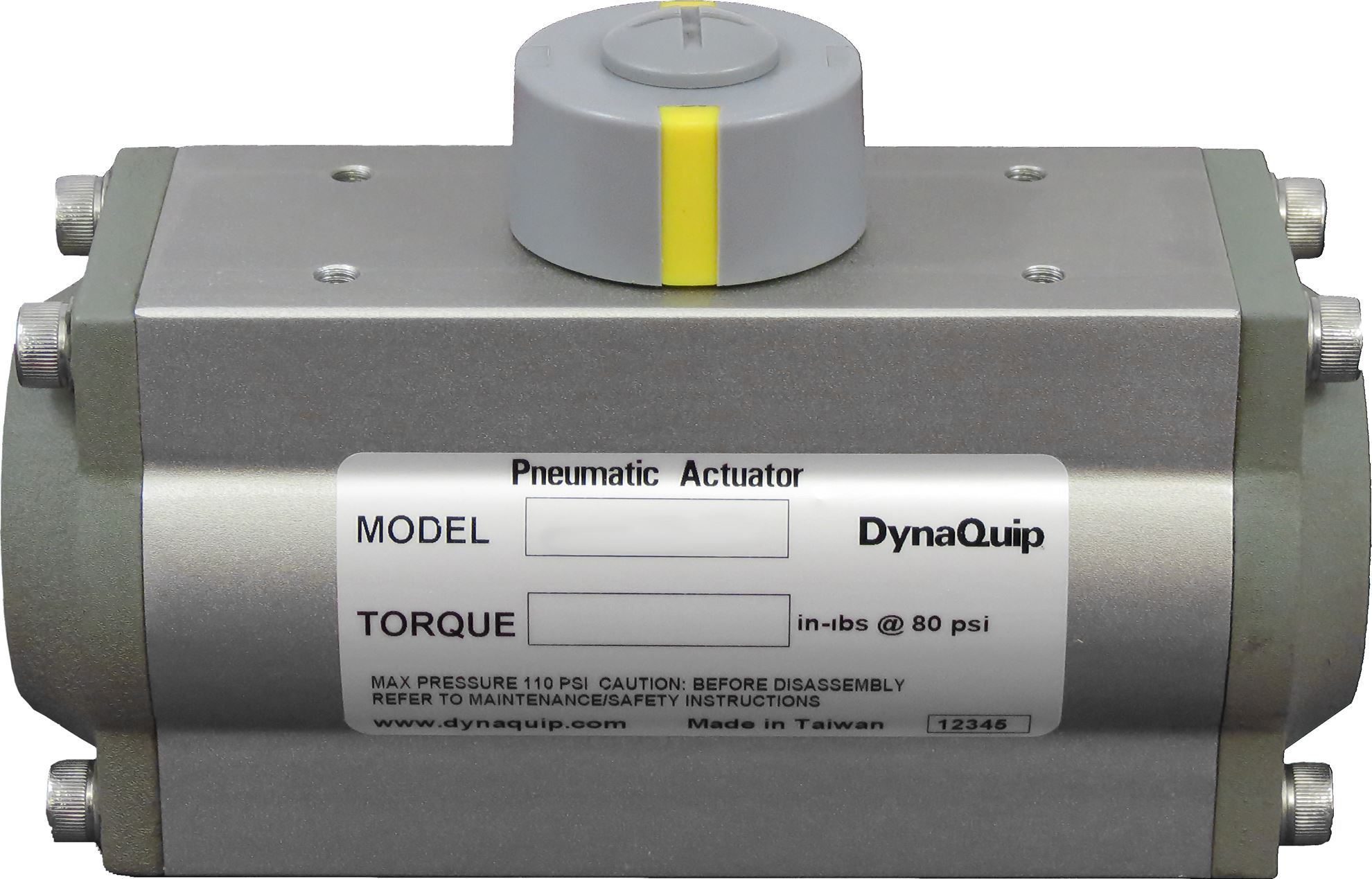

AHP140DA, Pneumatic Actuator – HP Series – 0 – 83,462 in·lbs

AHP140DA, Pneumatic Actuator - HP Series - 0 - 83,462 in·lbs

SKU: AHP140DA Categories: ,
Printable Page
Email This Page
Save To Favorites

Additional information

Temperature Range - Ambient

-10 to 195 ºF
Pneumatic Actuator Type

Double Acting
Type

Double Acting, Dual Rack and Pinion Design, Pneumatic
Mount Type

ISO 5211
Note

Air Actuator, Air Driven Valve, Air Operator, Air to Close, Air to Open, Double Acting, Dual Rack and Pinion Design, NEMA 4, NEMA 4X, Pneumatic Operator, Pneumatic Valve, Quarter-Turn Air Actuator, Quarter-Turn Pneumatic Actuator
Torque

4284 in-lb
Width

16.30 in
Height

7.54 in
Weight

30.21 lb

Description

DynaQuip Controls HP Series Rack & Pinion Pneumatic Actuators are designed to meet the needs of the quarter-turn valve market. Engineered to be compact, durable,and versatile, these actuators represent the latest technology coupled with economical and long-lasting operation. Our HP Series actuators are available in double acting and spring return models with torque outputs up to 83,462 inch-pounds with a 80 PSI air supply.

HP Series actuators are perfect for quarter-turn valve automation applications where continuous rapid cycling is required or hazardous conditions exist

  • Body: Aluminum, ASTM 6063-T6, Hard Anodized Finish Epoxy Coated
  • Piston: Aluminum Alloy, ASTM B179
  • End Cap: Aluminum Alloy, ASTM B179, Black Polyester Paint Finish
  • Drive Shaft: Forged Steel, ASTM A105 Nickel Plated
  • Seal, O-Rings: Buna N
  • Bearings: Delrin 500
  • Fasteners: SS ASTM A193-B8
  • Nuts: SS ASTM A194-GR8
  • Loaded Springs: Steel, High Alloy Epoxy Coated
  • Operating Temperature: -10° F to 195° F
