Carbon Steel Ball Valves

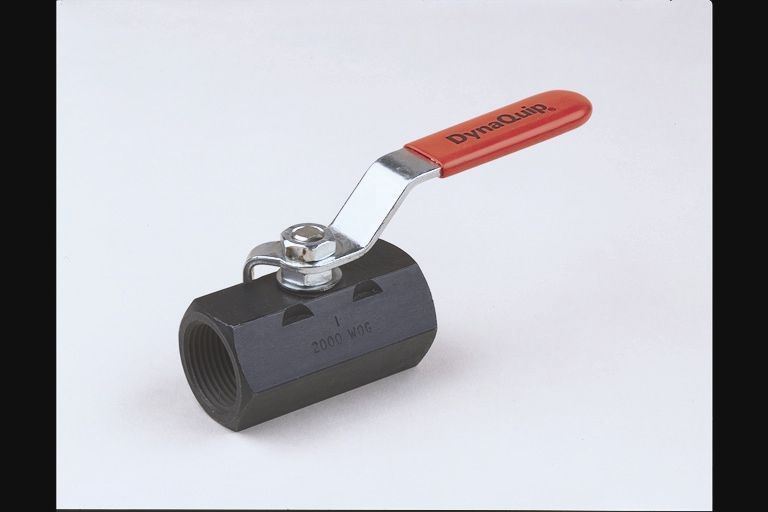

Carbon Steel 1-Piece Economy Valve - VME3 Series
VME3 Series unibody economy ball valves are a great choice for lower pressure general hydraulic and petroleum shut-off needs. Valves are unibody bar stock construction with phosphate-coated bodies and NPT threaded connections in a reduced port design. Built strong and designed to last longer than lightweight imports.
Key Benefits:
- Unibody Construction
- Blowout-Proof Stem Design
- RTFE Seats and Seals
- Built Tough in the USA
Options:
- Stainless Steel Ball and Stem (OA)
- Latching Lockout Handle Kit (OP)
- “Gull Wing” Tee Handle (OE)
- Oval Handle (OQ)

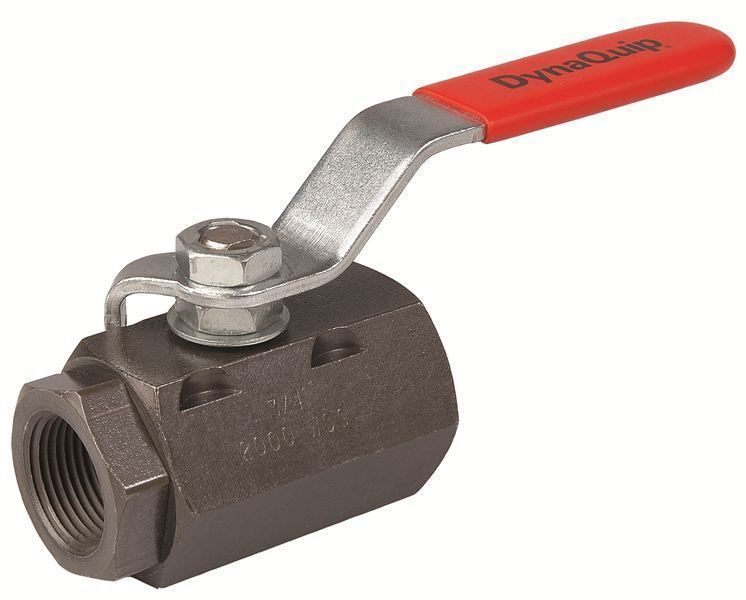

Carbon Steel 2-Piece Screwed Body Valve - VME1 Series
VME1 Series 2-piece ball valves are a great choice for lower to medium pressure general hydraulic and petroleum shut-off needs. Valves are two-piece bar stock construction with corrosion-resistant phosphate coated bodies and NPT threaded connections in full and standard port design. Built strong and designed to last longer than lightweight imports.
Key Benefits:
- Two-Piece Bar Stock Construction
- Blowout-Proof Stem Design
- RTFE Seats and Seals
- Built Tough in the USA
Options:
- Stainless Steel Ball and Stem (OA)
- Latching Lockout Handle Kit (OP)
- “Gull Wing” Tee Handle (OE)
- Oval Handle (OQ)
Carbon Steel 2-Piece Medium Pressure Valve - VLE Series
VLE2 Series 2-piece medium ball valves are the perfect choice for intermediate pressure hydraulic and industrial applications. Valves are heavy-duty two-piece bar stock construction with phosphate coated bodies and NPT threaded or SAE O-Ring Boss connections in a full port design. Strong and durable.
Key Benefits:
- Two-Piece Bar Stock Construction
- Blowout-Proof Stem Design
- RTFE Seats and Seals
- Built Tough in the USA
Options:
- Latching Lockout Handle Kit (OP)
Carbon Steel 2/3-Piece High Pressure Valve - VAE Series
VAE2 Series ball valves are designed for high-pressure hydraulic applications. Bar stock design (1/4” - 1”), cast steel bodies (1 1/4” - 2”). This full port valve is available in NPT threaded or SAE O-Ring Boss end connections. Valves feature Delrin® seats, blowout-proof stems, and cast steel handles. Operating temperature range: -20° to 175°F.
Key Benefits:
- Heavy Duty Construction
- Blowout-Proof Stem Design
- Delrin® Seats for Smooth Operation
- 3:1 Pressure Safety Factor
- Not Recommended for Steam Service
Options:
- Lockout Kit Available

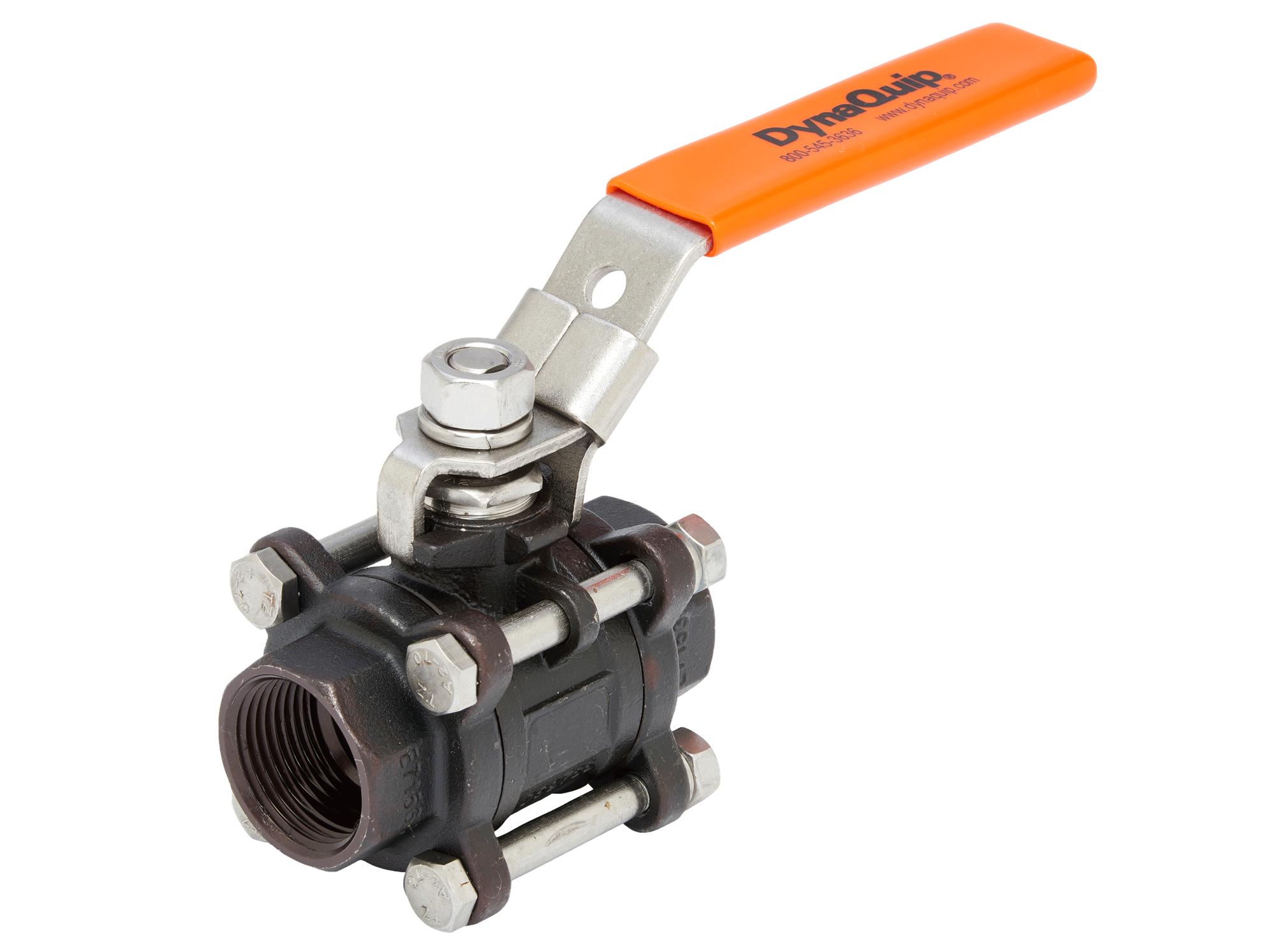

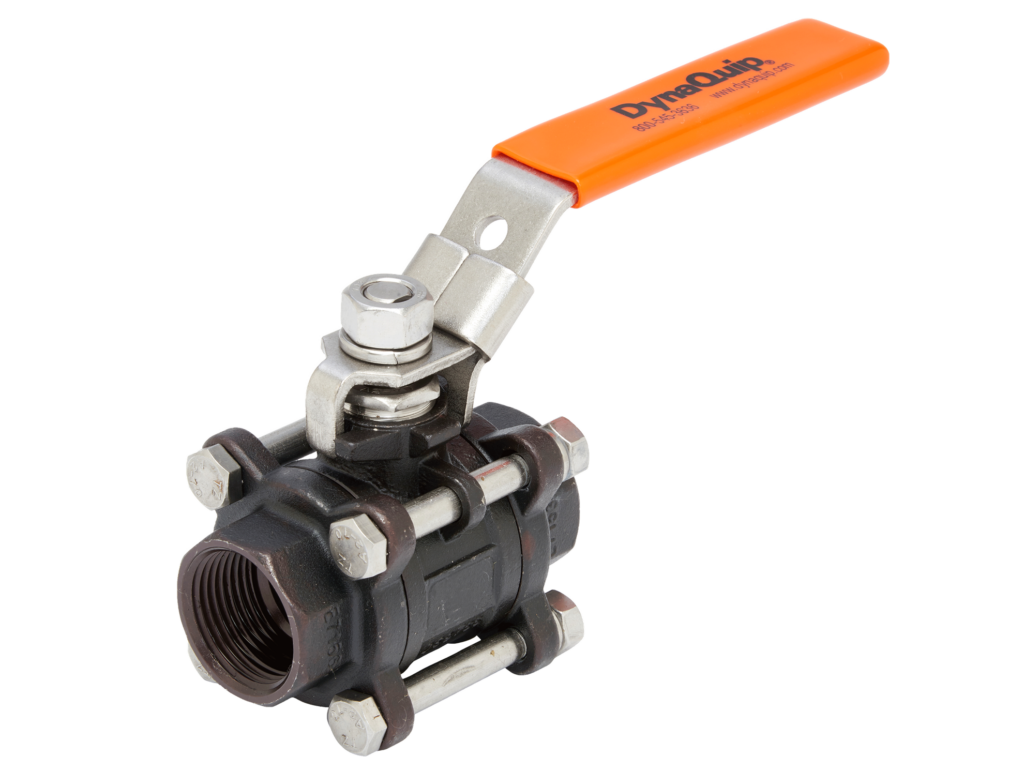

Carbon Steel 3-Piece Bolted In-Line Valve - V6C Series
V6C Series ball valves are designed for hydraulic, petroleum, and general chemical applications where maintenance is key! These three-piece bolted in-line valves feature investment cast steel bodies and end caps for durability. Avail in NPT threaded for socket weld end connections. Valves feature carbon-filled TFM seats, blowout-proof stems, and actuator mounting pad. This valve can be automated, please inquire.
Key Benefits:
- Heavy Duty Construction
- Simple, Fast Installation and Maintenance
- Adjustable Stem Packing
- 316 SS Ball and Stem
- Rated for 150 PSI WSP steam service
Options:
- Lockout Kit Available
Carbon Steel 3-Way High-Pressure Valve - VZE Series
VZE Series ball valves divert flow from one incoming port to two different ports in an L-port design. Self-lubricating Delrin® seats. Uses include hydraulic oils, water/oil emulsion, air, glycol and gasoline. Not rated for steam or vacuum applications.
Key Benefits:
- Self-lubricating Delrin® Seats
- Max pressures 4568 to 7250 psi CWP (size specific).
- Temperature range -20 degF to 175 degF
Carbon Steel 4-Way High-Pressure Valve - VXE Series
VXE Series multi-port ball valves are diverter valves with 4-way Double L-Port (two-position) for controlling a hydraulic cylinder.. Self-lubricating Delrin® seats. Uses include hydraulic oils, water/oil emulsion, air, glycol and gasoline. Not rated for steam or vacuum applications.
Key Benefits:
- Self-lubricating Delrin® Seats
- Max pressures 4568 to 7250 psi CWP (size specific).
- Temperature range -20 degF to 175 degF

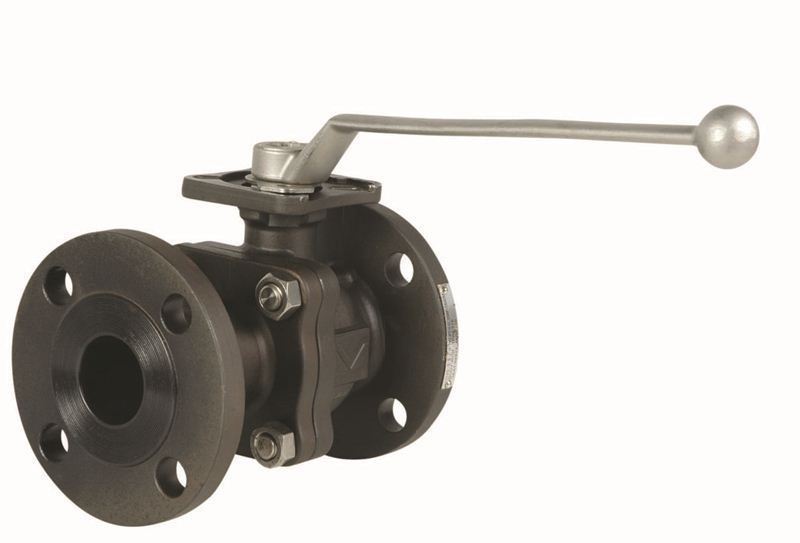

Carbon Steel 150 ANSI Flanged Valve - V5C Series
V5C Series Flanged Ball Valves are perfect for a wide range of applications where an ANSI 150 flange ins needed. This two piece A216-WCB investment cast body valve features a low-out proof stem, anti-static device, and a fire safe design (test to API 607). This valve can be automated – see our DynaMatic PHC and EHC series.
Key Benefits:
- Stainless Steel Ball, Stem, and Handle
- RFTE Seat, PTFE Seal and Packing.
- ISO 5211 Direct-Mount Pad
