Valve Size 4 in
Electric Voltage 24 VDC
Series E3S
Operator Actuator
Actuator Type MA35
Valve Type Ball
Thread Type FNPT
Operating PSI(D) 300 psi
Valve CWP 1000 psi
Porting Style Full
Port Opening Size 4
Temperature Range - Media -4 to 392 ºF
Temperature Range - Ambient 10 to 140 ºF
Body Style 3 Piece
Number of Ports 2
Valve Body Material Stainless Steel
Valve Construction Stainless Steel
Stem Seal Type PTFE/Viton®
Body Finish Stainless Steel
Ball Material 316 Stainless Steel
Seal Type PTFE/Viton®
Seat Material RTFE
Stem Material 316 Stainless Steel
A Dimensions 9.45 in
C Dimensions 3.94 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications

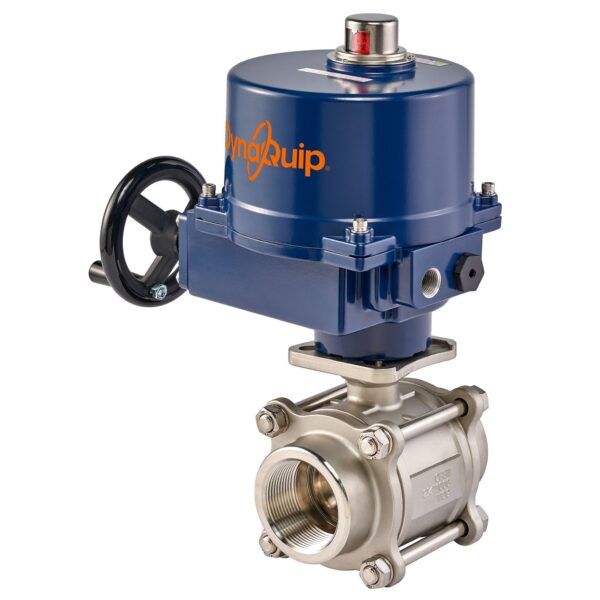

The DynaMatic E3S Series of electrically actuated three-piece stainless steel ball valves offers an excellent option for automated applications where corrosion resistant stainless steel is required. The three-piece swing out style valve makes routine maintenance a snap. The E3S series uses our DE and MA Series electric actuators available in 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.

Features Include:

  • NPT Threaded Ends
  • 316 Stainless Construction
  • RTFE Seats
  • Viton O-Ring Stem Seals
  • Adjustable Stem Packing
  • Swing-Out Design for Quick Repair
  • ISO 5211 Direct Mounting
  • Full Port
