Valve Size 1/2 in
Electric Voltage 24 VAC, 24 VDC, 12 VDC
Series E5C
Operator Actuator
Actuator Type DE153
Valve Type Ball
Thread Type #150 Flange
Operating PSI(D) 285 psi
Valve CWP 285 psi
Porting Style Full
Port Opening Size 1/2
Temperature Range - Media -4 to 392 ºF
Temperature Range - Ambient -40 to 150 ºF
Body Style 2 Piece Flange
Number of Ports 2
Valve Body Material Carbon Steel
Valve Construction Carbon Steel
Stem Seal Type TFE-Viton
Body Finish Carbon Steel
Ball Material 316 Stainless Steel
Seat Material TFE-Viton
Seal Type RTFE
Stem Material 316 Stainless Steel
A Dimensions 4.25 in
C Dimensions 0.59 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications

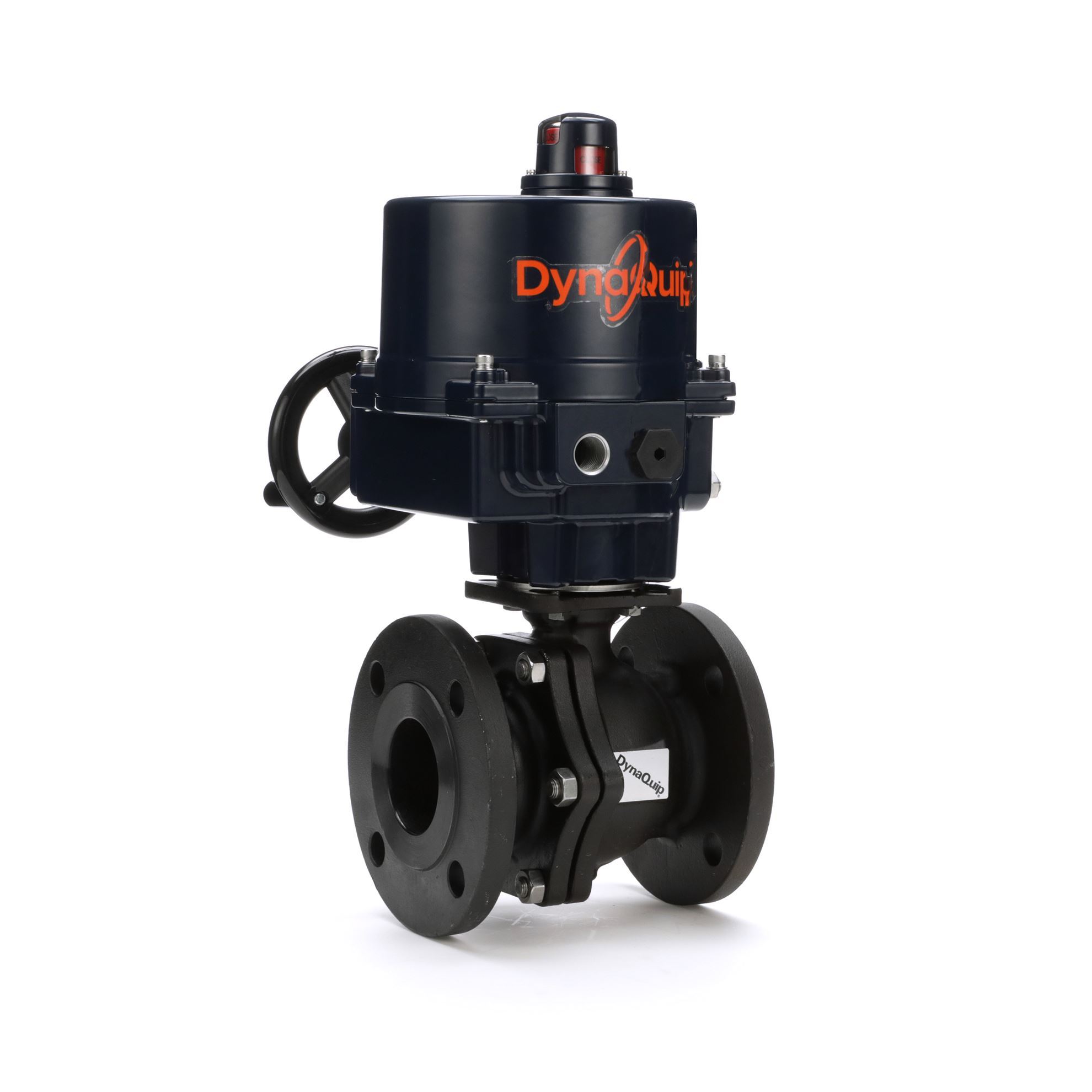

The E5C Carbon Steel Flanged Series offers an excellent option when a flanged connection is needed. The valve is constructed of durable carbon steel for industrial, hydraulic, or petroleum applications. The E5C Series is also full port and features 150 lb. ANSI flanges. The E5C Series uses our DE and MA Series electric actuators, and are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications.

Features Include:

  • Body: ASTM A216-WCB
  • 150 ANSI v16.10 Flanged Connections
  • Fire Test to API 607
  • RTFE Seat/Seals
  • Bottom Loaded Stem
  • ISO 5211 Direct Mounting
  • Full Port
