Valve Size
|
1 1/2 in
|
Electric Voltage
|
460 VAC PH3
|
Series
|
E5S
|
Operator
|
Actuator
|
Actuator Type
|
MA4
|
Valve Type
|
Ball
|
Thread Type
|
#150 Flange
|
Operating PSI(D)
|
285 psi
|
Valve CWP
|
285 psi
|
Porting Style
|
Full
|
Port Opening Size
|
1 1/2
|
Temperature Range - Media
|
-4 to 392 ºF
|
Temperature Range - Ambient
|
10 to 140 ºF
|
Body Style
|
2 Piece Flange
|
Number of Ports
|
2
|
Valve Body Material
|
Stainless Steel
|
Valve Construction
|
Stainless Steel
|
Stem Seal Type
|
Graphite/Viton
|
Body Finish
|
Stainless Steel
|
Ball Material
|
316 Stainless Steel
|
Seat Material
|
RTFE
|
Seal Type
|
Seals/O-Ring: Graphite/Viton
|
Stem Material
|
316 Stainless Steel
|
A Dimensions
|
6.50 in
|
C Dimensions
|
1.50 in
|
Application
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|
REPLACEMENT OR OBSOLETE ITEM
|
REPLACEMENT
|

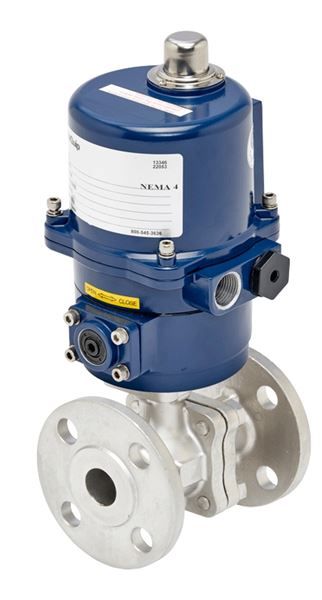

The E5S Flanged Series from DynaQuip offers excellent options when a flanged connection is needed. The ball valve is constructed of 316 stainless steel, and can be used for general chemical and corrosive fluid applications. The E5S Series is also full port and features 150 lb. ANSI flanges. The E5S Series uses our DE and MA Series electric actuators, and are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.
Features Include:
- Body: ASTM A351-CF8M
- 150 ANSI v16.10 Flanged Connections
- Fire Test to API 607
- RTFE Seat/Seals
- Bottom Loaded Stem
- ISO 5211 Direct Mounting
- Full Port
