Size
|
1 1/4 in
|
Voltage
|
12 VDC
|
Feedback
|
No
|
Manual Override
|
No
|
A - Length
|
5.00 in
|
B -Width
|
3.75 in
|
Body Style
|
2 Piece
|
Number of Ports
|
2
|
C - Height
|
4.72 in
|
Thrust Washer Material
|
RTFE
|
Fasteners Material
|
Stainless Steel
|
Power Cord
|
18-3 2.5 ft Long
|
Temperature
|
35 to 165 ºF
|
Max. Working Pressure
|
200 psi
|
Valve Body/End Cap Material
|
Forged Brass
|
Stem Material
|
Nickel Plated Brass
|
Ball Material
|
Chrome Plated Brass
|
Seat Material
|
RTFE
|
Stem Seal Type
|
Viton O-Rings
|
Features
|
NEMA 4 with 3 Ft. 3-Conductor "Pigtail"
|

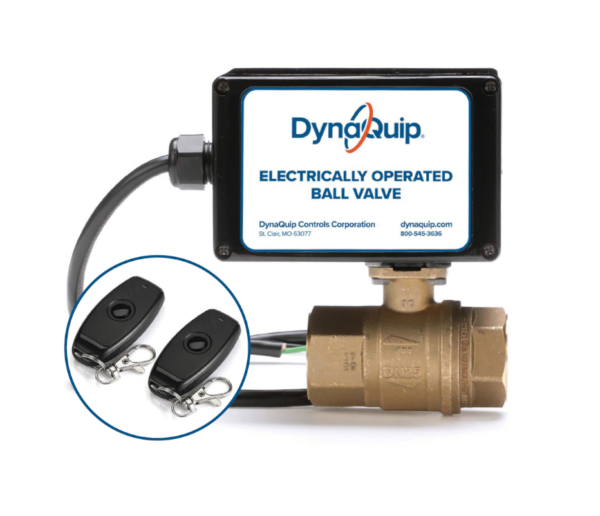

The new Remote Control EHW Series valves allow you to remotely control your valve, wirelessly, up to 300 feet away, using a convenient fob. Save time and steps associated with controlling remote valves by hand. The outdoor-rated NEMA-4 light duty NSF/ANSI 372 Certified Lead-Free valve is compatible with water, oil, air/gas and other similarly non-viscous fluids, up to 200 psi. The valves are available in sizes ¼” to 1¼” and are powered by a 12VDC power source (not included). Ask us about models for high-pressure applications, other voltages, etc.
Additional Features Include:
- NPT-Threaded Ends
- Full Port
- RTFE Seats and Seals
- Two Fobs Included
- 10 Foot Power Cable Pigtail (12VDC)
