Electric Actuators and Accessories

Compact Electric Actuator - AVA Series

The ultra-compact AVA Series provides 1171-974 in/lbs torque output. With improved housing design including a new 'Wiring Box' with conduit entry and offering Failsafe function. Available as our Basic On/Off or Basic Failsafe or Smart series offering a wide range of features including On/Off, Failsafe, Modulating and high-speed.

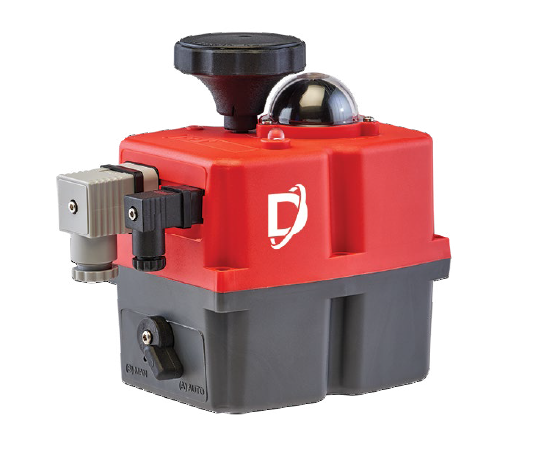

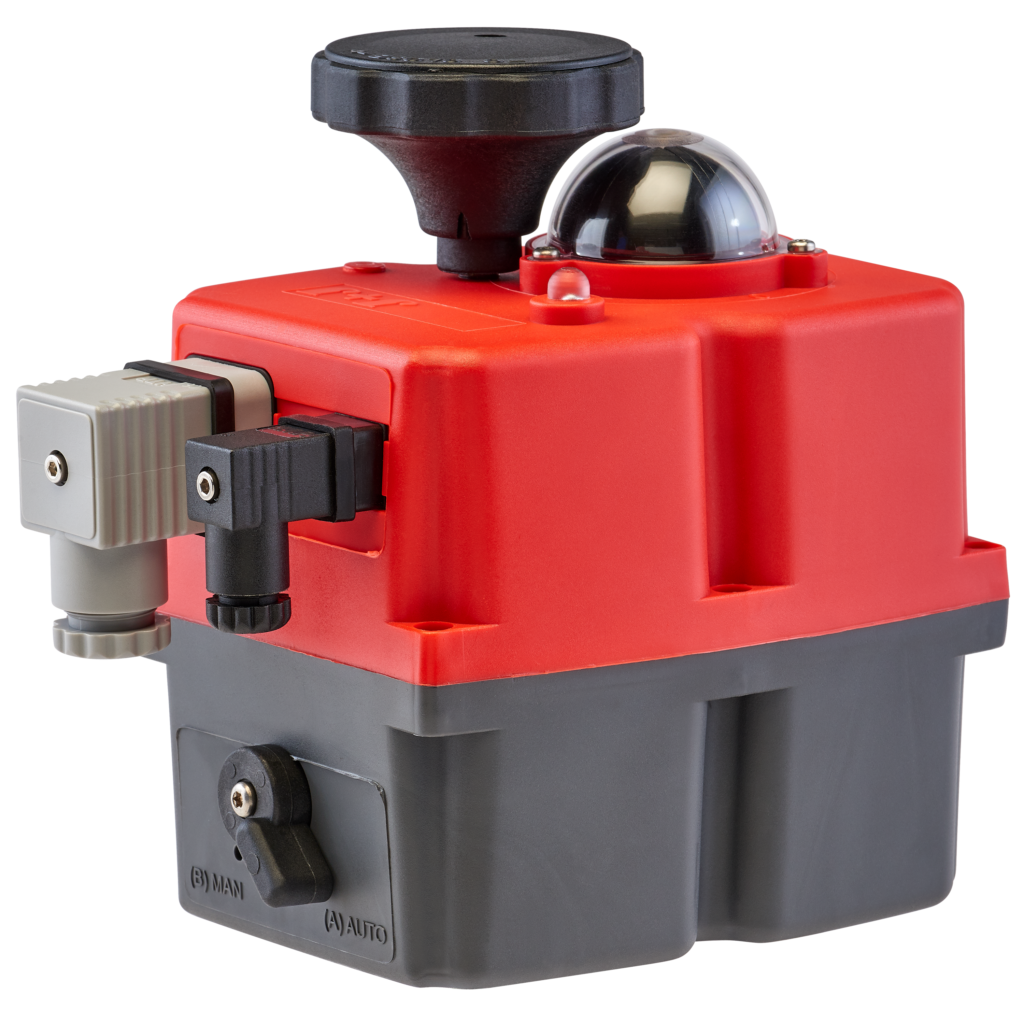

Multi-Voltage SMART Electric Actuators - JE Series

The innovative JE series of reversible electric actuators delivers the latest technology at an unmatched value.

This feature-rich line was designed for ease-of-use and reliability. JE Series actuators are multi-voltage capable with automatic voltage sensing for AC or DC power supply, reducing the opportunity for user error. Standard features include a protective electronic torque limiter, emergency manual override, and an internal, thermostat-controlled, anti-condensation heater to help prevent damaging moisture build-up. External DIN plug connectors allow for quick and easy wiring without the need to open the unit, while practical and distinctive external indicators help to simplify operation and diagnostics. Additional factory-installed options are available.

JE Series actuators are lightweight, compact, and quick and easy to install. They are ideal for quarter-turn automation of ball valves, butterfly valves and dampers.

Key Features of the JE Series

• Quarter-turn (90 ̊) reversible electric actuator
• Multi-voltage capability
• Automatic voltage sensing - for AC or DC power supply
• Emergency manual override
• Isolated end-of-travel limit switches
• Automatic temperature control - internal thermostat, anti-condensation heater
• External LED diagnostic light
• Distinctive visual position indicator dome
• Electronic torque limiter
• Protected electrical supply
• Easy wiring via external DIN plugs
• IP67 Anti-corrosive, UV resistant, weatherproof enclosure
• ISO 5211 Mounting Standard
• CE Marked
• Modulating or fail-safe options

Electric Actuator - DE Series - 0 - 300 in·lbs

The DE series of electric actuators are ultra-compact and provide a high output-to-size ratio. In addition, the DE series has a multitude of features not normally found in this class of actuator.

DynaQuip Electric actuators provide a solid foundation for automating almost any quarter-turn application. Electric actuators are used where plant air and compressors are not available. They are the actuators of choice in cold temperatures corrosive environments and are easily integrated into distributed control systems. Automating ball, butterfly, and plug valves are the primary application of most end users.

In addition to our pre-sized automated assemblies DynaQuip Controls can provide actuators and hardware to automated existing valves of other brands and manufacturers.

Electric Actuator - MA Series - 443 - 30,975 in·lbs

The MA Series is DynaQuip Controls’ heavyweight contender with torque output from 443 to 39,828 inch-pounds. A self-locking high-alloy steel gear train makes this the ideal electric actuator for a wide variety of industrial and commercial applications requiring quarter turn automation.

DynaQuip Electric actuators provide a solid foundation for automating almost any quarter-turn application. Electric actuators are used where plant air and compressors are not available. They are the actuators of choice in cold temperatures corrosive environments and are easily integrated into distributed control systems. Automating ball, butterfly, and plug valves are the primary application of most end users.

In addition to our pre-sized automated assemblies DynaQuip Controls can provide actuators and hardware to automated existing valves of other brands and manufacturers.

Electric Actuator Accessories

DynaQuip electric actuators provide a solid foundation for automating almost any quarter-turn application. Our JE, DE and MA series actuators are available with a wide variety of options and accessories to fit your specific application:

• Auxiliary Limit Switches

• Additional dry contact limit switches within the control housing to indicate various valve positions remotely, or to sop the valve at intermediate positions, or to control other pieces of equipment, such as pumps.
• NEMA 4, 4X, 7 and 9

• Various NEMA ratings available to meet specific environmental requirements: watertight corrosion resistant, or explosion proof. Special housings for high-pressure wash down are also available.
• Timer

• Adjustable time intervals and length of time open and/or closed.
• Modulating Controls

• Accepts a 4-20 mA, 0-5 VDC, or 0-10 VDC control signal to position the valve at various degrees of open/close.
• Continuous Position Indication

• Gives a continuous remote indication of the degrees or percent of opening based on either a resistance output of 1 - 1000 ohms or a current output of 4-20 mA. Other options are available.
• Fail-Safe Backup

• Battery backup system that allows normal operation of actuator with 120 volt AC but converts battery DC to AC upon incoming AC power failure.
• Spring-Return Fail-Safe

• Fail-safe spring backup system within the electric actuator takes over upon loss of AC power.

Please contact us directly to inquire about electric actuator options available for your specific application.
