Valve Size
|
3/4 in
|
|
Electric Voltage
|
115 VAC
|
|
Series
|
EVA
|
|
Operator
|
Actuator
|
|
Actuator Type
|
Electric
|
|
Actuator Part Number
|
DE156
|
|
Valve Type
|
Ball
|
|
Thread Type
|
FNPT
|
|
Operating PSI (D)
|
300 psi
|
|
Valve CWP
|
600 psi
|
|
Porting Style
|
Full
|
|
Port Opening Size
|
3/4
|
|
Temperature Range - Media
|
-20°F to 400°F
|
|
Temperature Range - Ambient
|
-40 to 150 ºF
|
|
Voltage
|
120 VAC
|
|
Weight
|
6.03 lb
|
|
Body Style
|
3 Piece
|
|
Number of Ports
|
2
|
|
Valve Body Material
|
Bronze
|
|
Valve Construction
|
Bronze
|
|
Stem Seal Type
|
PTFE/Viton®
|
|
Body Finish
|
Bronze
|
|
Ball Material
|
316 Stainless Steel
|
|
Seat Material
|
PTFE
|
|
Seal Type
|
PTFE/Viton®
|
|
Stem Material
|
Stainless Steel
|
|
Body Length
|
3.20 in
|
|
B Dimensions
|
1.85 in
|
|
C Dimensions
|
0.79 in
|
|
D Dimensions
|
7.03 in
|
|
E Dimensions
|
4.24 in
|
|
F Dimensions
|
5.66 in
|
|
G Dimensions
|
5.18 in
|
|
Application
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|

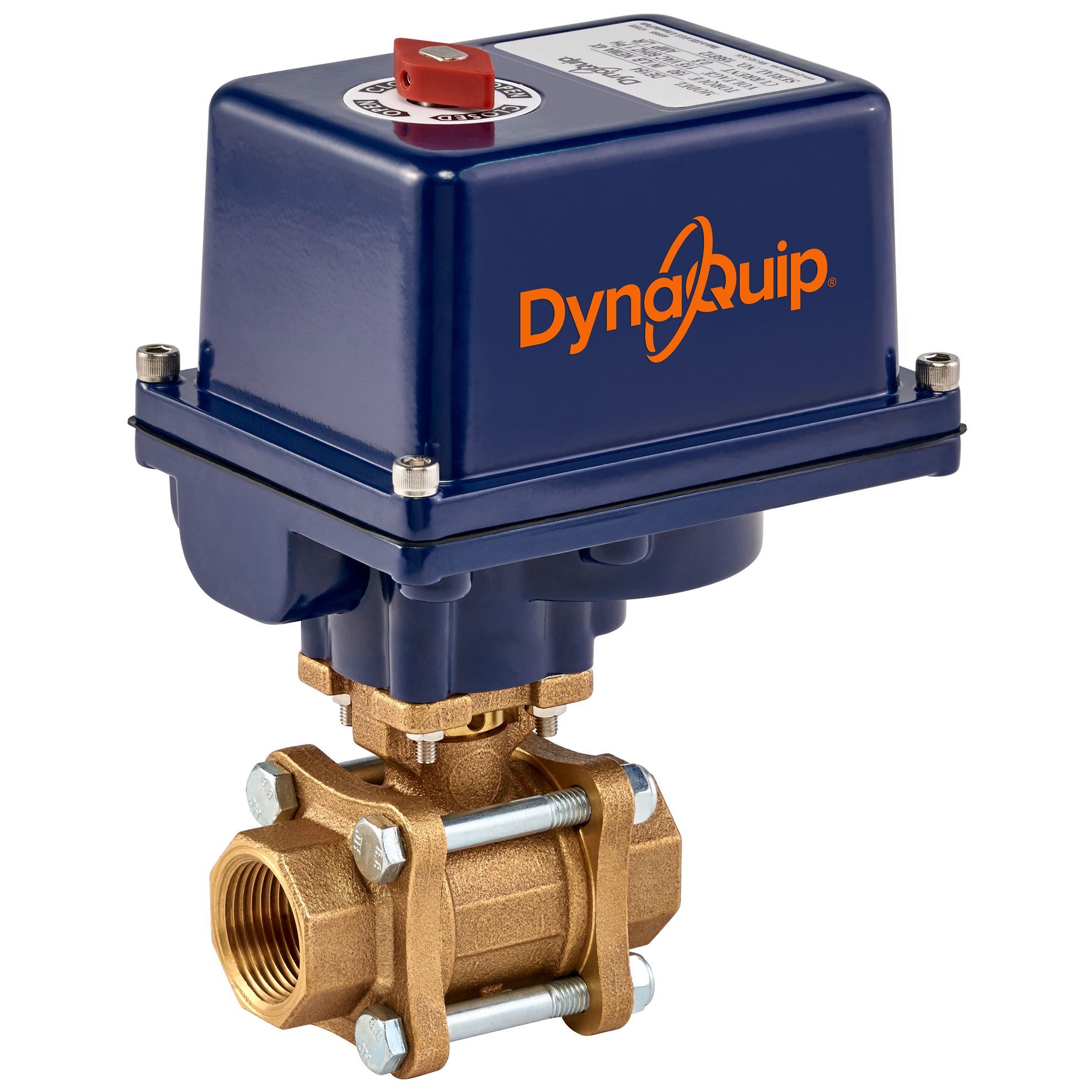

The DynaMatic EVA Series of electrically actuated three-piece cast bronze valves offers an excellent option for automated applications where economical yet corrosion-resistant bronze is required. Three-piece design offers full port performance in a small package. Valve center section swings out for quick and easy maintenance and repair. The EVA Series uses our DE Series electric actuators available with 115VAC, 220 VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
Features Include:
- NPT Female Threaded Ends
- Swing-Out Design for Quick Repair
- Durable Bronze Construction
- 316 Stainless Steel Ball and Stem
- PTFE Seats, Viton Stem Seals
- ISO 5211 Direct Mounting
- Full Port
