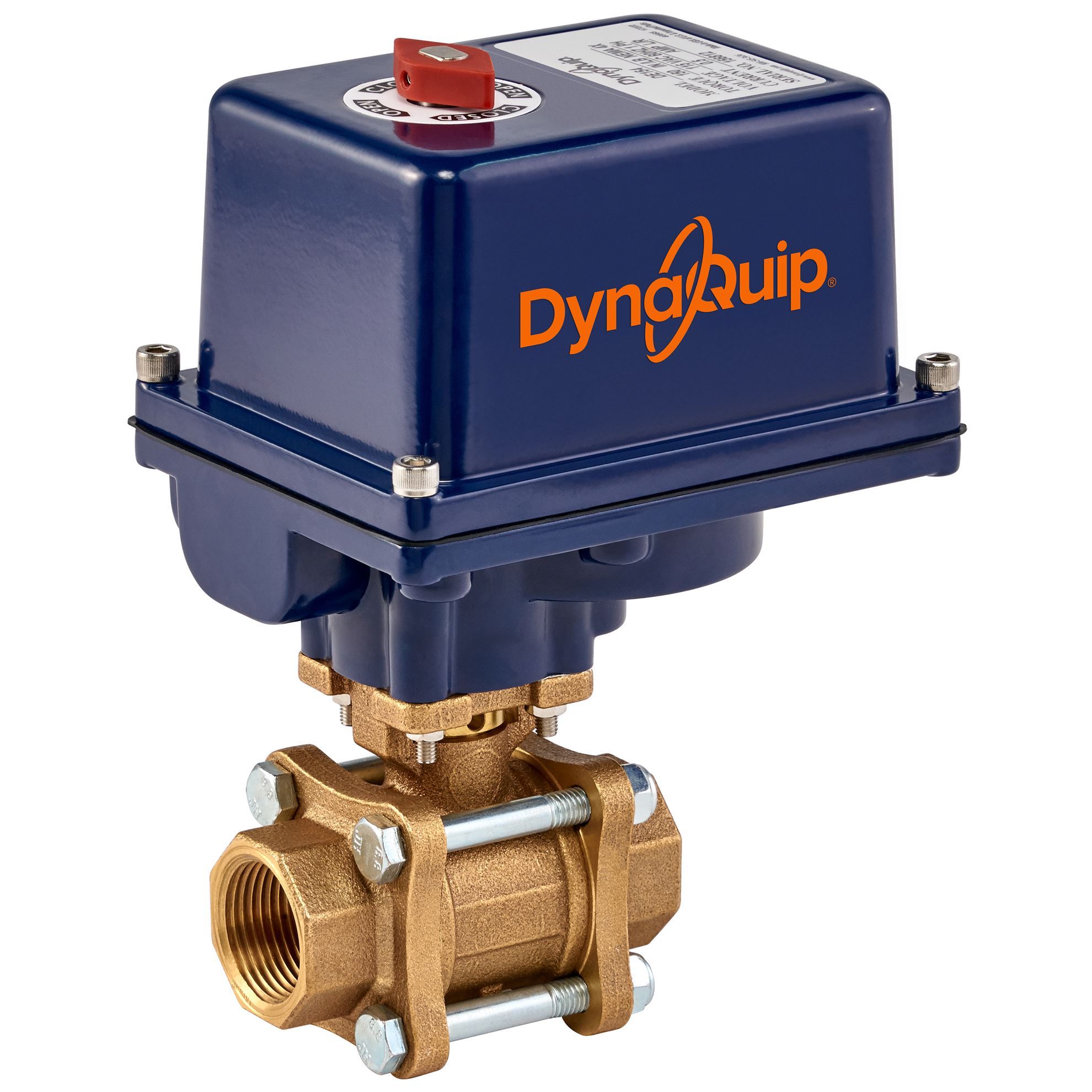

EVA67AME25H, 2PC BRZ ELEC LOW VOLTAGE

Valve Size 1 1/2 in
Electric Voltage 24 VAC, 24 VDC, 12 VDC
Series EVA
Operator Actuator
Actuator Type Electric
Actuator Part Number DE305H
Valve Type Ball
Thread Type FNPT
Operating PSI (D) 300 psi
Valve CWP 600 psi
Porting Style Full
Port Opening Size 1 1/2
Temperature Range - Media -20 to 370 ºF
Temperature Range - Ambient -40 to 150 ºF
Voltage 24 VAC
Addl Voltage 24 VDC
Addl Voltage 1 12 VDC
Weight 9.51 lb
Body Style 3 Piece
Number of Ports 2
Valve Body Material Bronze
Valve Construction Bronze
Stem Seal Type PTFE/Viton®
Body Finish Bronze
Ball Material 316 Stainless Steel
Seat Material PTFE
Seal Type PTFE/Viton®
Stem Material Stainless Steel
Body Length 4.72 in
B Dimensions 2.88 in
C Dimensions 1.50 in
D Dimensions 8.06 in
E Dimensions 4.24 in
F Dimensions 5.66 in
G Dimensions 5.18 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
The DynaMatic EVA Series of electrically actuated three-piece cast bronze valves offers an excellent option for automated applications where economical yet corrosion-resistant bronze is required. Three-piece design offers full port performance in a small package. Valve center section swings out for quick and easy maintenance and repair. The EVA Series uses our DE Series electric actuators available with 115VAC, 220 VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.

Features Include:
  • NPT Female Threaded Ends
  • Swing-Out Design for Quick Repair
  • Durable Bronze Construction
  • 316 Stainless Steel Ball and Stem
  • PTFE Seats, Viton Stem Seals
  • ISO 5211 Direct Mounting
  • Full Port
