Valve Size 1 in
Electric Voltage 24 VAC, 24 VDC, 12 VDC
Series EYHG
Operator Actuator
Actuator Type Electric
Actuator Part Number DE305H
Valve Type Ball
Thread Type FNPT
Operating PSI (D) 300 psi
Valve CWP 400 psi
Porting Style Standard
Port Opening Size 1
Temperature Range - Media -20 to 300 ºF
Temperature Range - Ambient -40 to 150 ºF
Addl Voltage 24 VDC
Addl Voltage 1 12 VDC
Body Style 3-Way
Number of Ports 3
Valve Body Material Brass
Valve Construction Brass
Stem Seal Type Viton®
Body Finish Brass
Ball Material Ni-Chrome Plated Brass
Seat Material PTFE
Seal Type PTFE/Viton®
Stem Material Nickel Plated Brass
Body Length 3.74 in
B Dimensions 1.89 in
C Dimensions 0.79 in
D Dimensions 1.87 in
E Dimensions 1.00 in
F Dimensions 1.63 in
G Dimensions 6.81 in
H Dimensions 4.24 in
J Dimensions 5.66 in
K Dimensions 5.18 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications

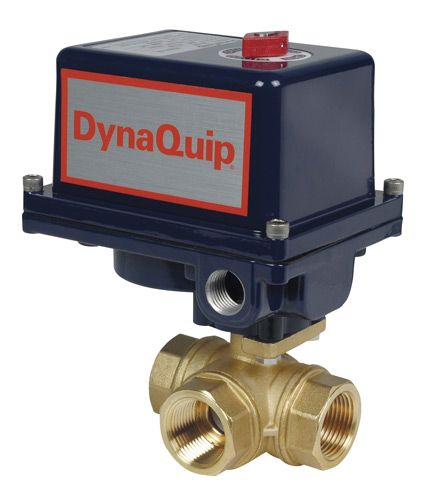

DynaMatic EYHG Series of electrically actuated three-way brass valves offers an excellent option for automated diverter-type applications. Designed specifically for actuation, the ball valves have O-ring seals for lower torque and longer cycle life. All models are pre-sized for clean water, air, or light oil applications. Please call DynaQuip Customer Service for recommendations and actuator sizing when dirty or severe service applications are needed. The EYHG Series uses our DE and MA Series electric actuators, and are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.

Features Include:
  • Forged Brass Body
  • Chrome Plated Brass Ball
  • 3-Way “L” Pattern Diverter Ball Valve
  • NPT Female Threaded Ends
  • RTFE Seats, Viton Stem Seals
  • ISO 5211 Direct Mounting
  • "T" Pattern Available
