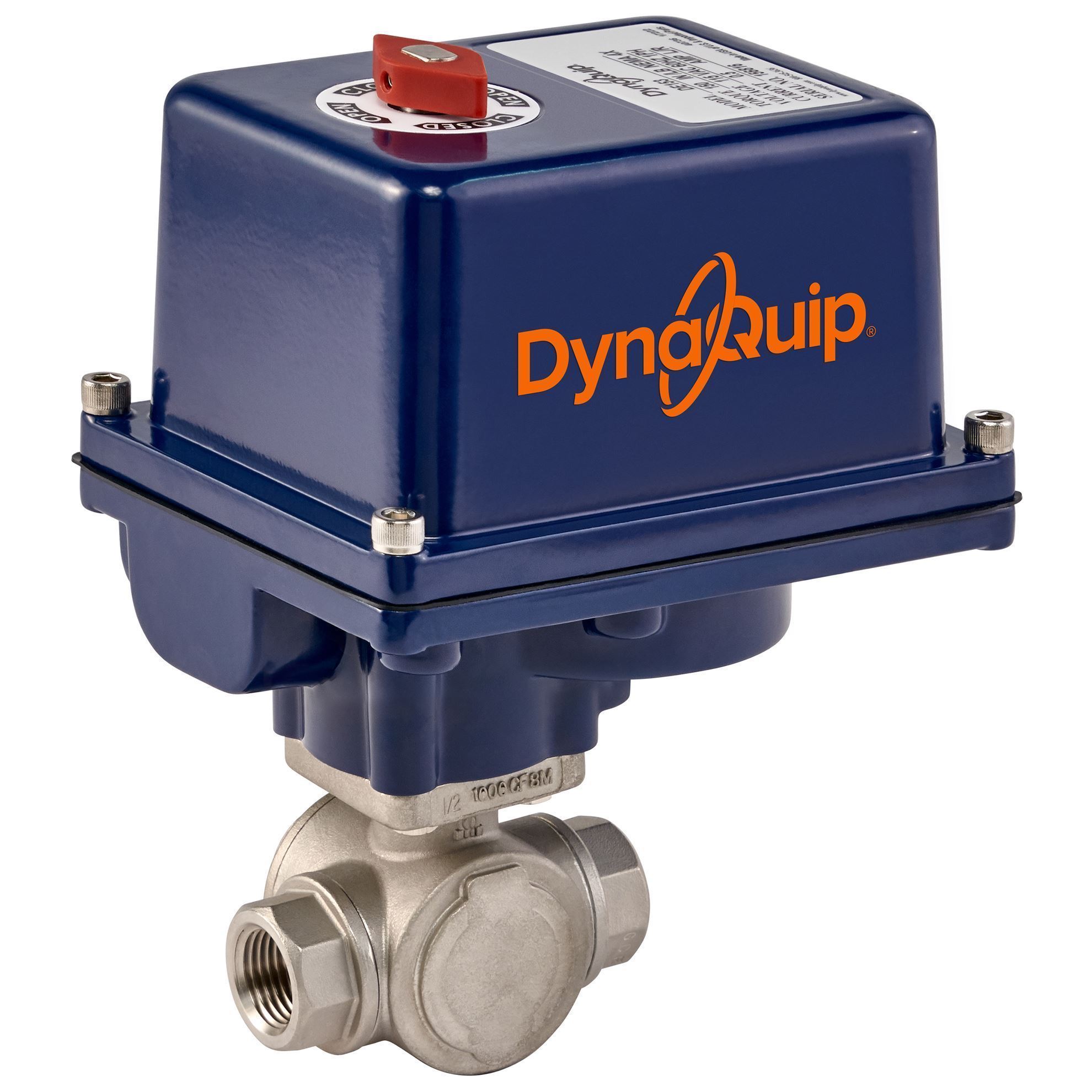

EYSA SERIES - 3 WAY Stainless Steel Ball Valve - Electric Actuator
The DynaMatic EYSA Series of electrically actuated stainless steel three-way valves offers and excellent option for automated diverter-type applications where corrosion-resistant stainless steel is required. The EYSA Series uses our DE and MA Series electric actuators. The EYSA Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
Features Include:
- 316 Stainless Steel Bodies and Trim
- Full Port
- 3-Way “L” Pattern Diverter Ball Valve
- Four RTFE Seats Allow Flow in Any Direction
- NPT Female Threaded Ends
- Viton Stem Seals
- ISO 5211 Direct Mounting
- "T" Pattern Available
Sort by
Display
per page
| Item # | Valve Size | Electric Voltage | List Price | |
|---|---|---|---|---|
| EYSA3AJE20 | 1/2 in | 120 VAC |
Quote
|
|
| EYSA3AJE20H | 1/2 in | 24 VAC, 24 VDC, 12 VDC |
Quote
|
|
| EYSA4AJE25 | 3/4 in | 120 VAC |
Quote
|
|
| EYSA4AJE25H | 3/4 in | 24 VAC, 24 VDC, 12 VDC |
Quote
|
|
| EYSA5AJE25 | 1 in | 120 VAC |
Quote
|
|
| EYSA5AJE25H | 1 in | 24 VAC, 24 VDC, 12 VDC |
Quote
|
|
| EYSA7AJE01 | 1 1/2 in | 120 VAC |
Quote
|
|
| EYSA7AJE01B | 1 1/2 in | 220 VAC (1 Phase) |
Quote
|
|
| EYSA7AJE01C | 1 1/2 in | 24 VAC |
Quote
|
|
| EYSA7AJE01D | 1 1/2 in | 12 VDC |
Quote
|
|
| EYSA7AJE01E | 1 1/2 in | 24 VDC |
Quote
|
|
| EYSA7AJE01F | 1 1/2 in | 220 VAC (3 Phase) |
Quote
|
|
| EYSA7AJE01G | 1 1/2 in | 460 VAC (3 Phase) |
Quote
|
|
| EYSA8AJE02 | 2 in | 120 VAC |
Quote
|
|
| EYSA8AJE02B | 2 in | 220 VAC (1 Phase) |
Quote
|
|
| EYSA8AJE02C | 2 in | 24 VAC |
Quote
|
|
| EYSA8AJE02D | 2 in | 12 VDC |
Quote
|
|
| EYSA8AJE02E | 2 in | 24 VDC |
Quote
|
|
| EYSA8AJE02F | 2 in | 220 VAC (3 Phase) |
Quote
|
|
| EYSA8AJE02G | 2 in | 460 VAC (3 Phase) |
Quote
|
