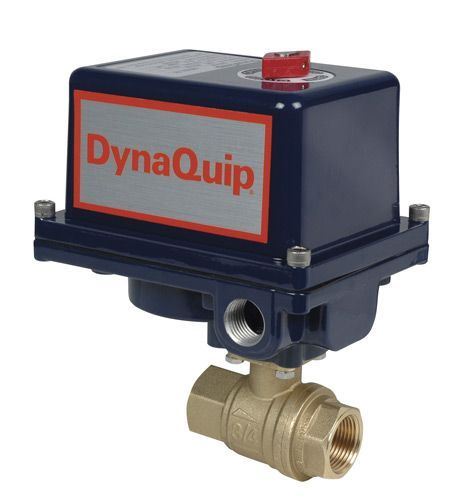

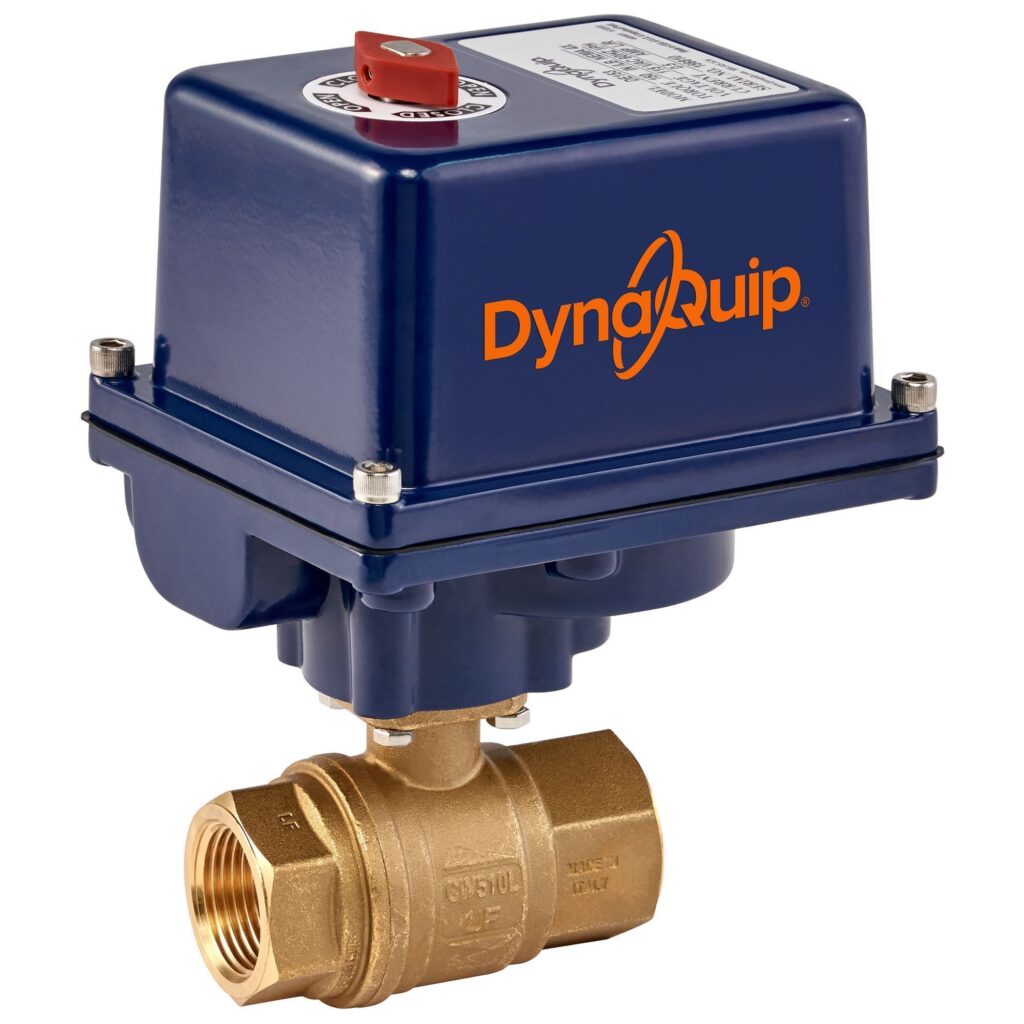

EHH SERIES – 2 PC Lead Free Brass Ball Valve with Electric Actuator

DynaMatic EHH Series of electrically actuated lead-free brass valves offers an excellent option for automated potable water applications. All EHH Series actuated units comply with the Safe Drinking Water Act (SDWA) requiring plumbing fittings or fixtures dispensing water for human ingestion. These automated valves fit a wide range of applications, and all models are pre-sized for clean water, air, or light oil applications. Please contact customer service for recommendations and actuator sizing when dirty or severe service applications are needed. The EHH Series use our DE and MA Series electrical actuators. Available voltages include 120VAC, 230VAC, 24VAC, 24VDC, and 12VDC.

Features Include:

• Meets NSF/ANSI 61-G and NSF/ANSI 372 Standards for “Lead Free”
• NPT Female Threaded Ends
• Forged Brass Construction
• RTFE Seats, PTFE/Viton Stem Seals
• Bottom Loaded Stem
• ISO 5211 Direct Mounting

For Potable Water Applications (NSF/ANSI 372)
600 PSI CWP
Full Port 1/2″ – 2″

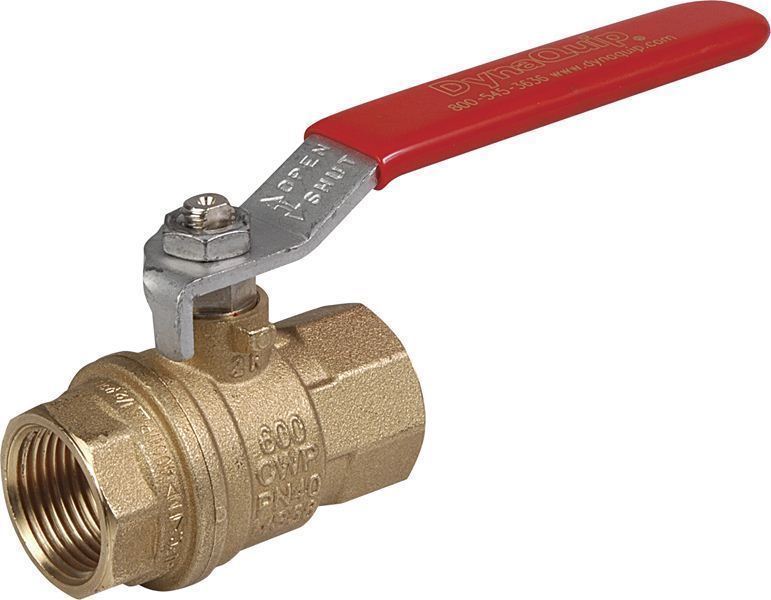

VMG Series valves are certified NSF/ANSI 372 to meets current No-Lead Laws CA1953 and VT S152 as well as “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation” effective January 2014.

• BODY – Hot forged sand blasted, unplated Lead-Free (NSF/ANSI 372) brass body
• BALL – Chrome plated Lead-Free brass ball for longer life
• STEM – Reinforced PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance. Blowout-proof unplated Lead-Free brass stem
• SEALS – Glass filled pure PTFE self-lubricating seats with flexible-lip design
• THREAD – Female NPT taper ANSI B.1.20.1

QUALITY FEATURES

• Dual sealing system allows valve to be operated or installed in either direction making installation easier
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Nylon grip Carbon steel handle can be removed with valve in service.
• Certified NSF/ANSI 372 to meets No-Lead Laws CA1953 and VT S152 as well as effective 2014 “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation.

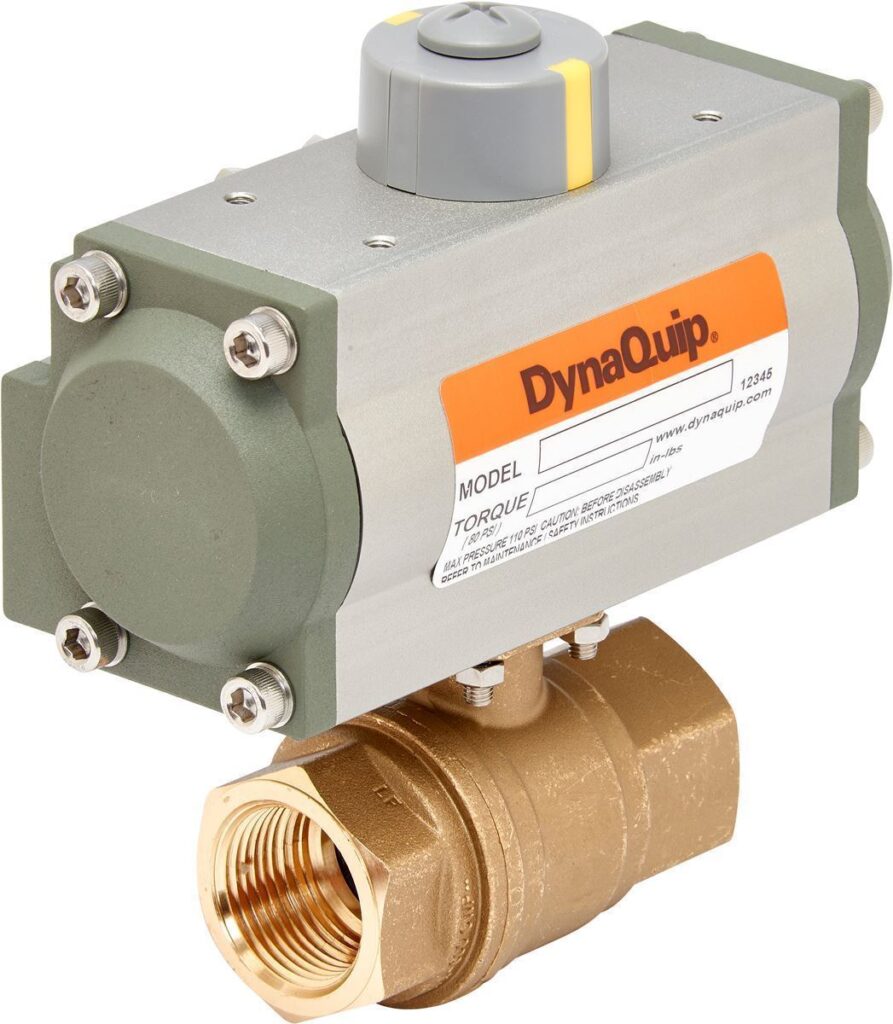

PHH SERIES – 2 PC Lead Free Brass Ball Valve with Pneumatic Actuator

DynaMatic PHH Series of pneumatically actuated lead-free brass valves offers an excellent option for automated potable water applications. All PHH Series actuated units comply with the Safe Drinking Water Act (SDWA) requiring plumbing fittings or fixtures dispensing water for human ingestion. These automated valves fit a wide range of applications, and all models are pre-sized for clean water, air, or light oil applications. Please contact customer service for recommendations and actuator sizing when dirty or severe service applications are needed. The PHH Series use our HP Series pneumatic actuators. Available voltages include 120VAC, 230VAC, 24VAC, 24VDC, and 12VDC.

Features Include:

• Meets NSF/ANSI 61-G and NSF/ANSI 372 Standards for “Lead Free”
• NPT Female Threaded Ends
• Forged Brass Construction
• RTFE Seats, PTFE/Viton Stem Seals
• Bottom Loaded Stem
• ISO 5211 Direct Mounting
