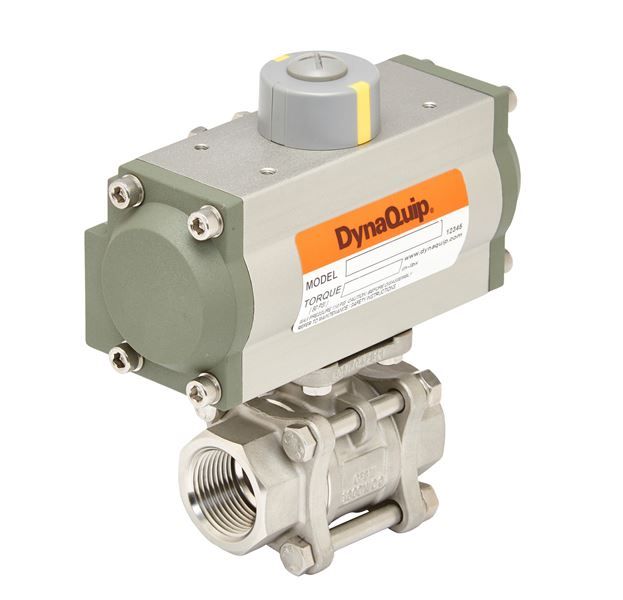

P3S21AJSR05210A4, 3PC SS PNEU SR/FC 12VDC

Valve Size 1/4 in
Pneumatic Actuator Type Spring Return - Fail Closed
Pneumatic Actuator Accessories Pilot Solenoid 12 VDC
CROSS REFERENCE ITEM PVS21AJS024A4
Series P3S
Operator Actuator
Actuator Type HP052SR10
Valve Type Ball
Thread Type FNPT
Operating PSI(D) 500 psi
Valve CWP 1000 psi
Porting Style Full
Port Opening Size 1/4
Temperature Range - Media -4 to 392 ºF
Temperature Range - Ambient -4 to 176 ºF
Body Style 3 Piece
Number of Ports 2
Valve Body Material Stainless Steel
Valve Construction Stainless Steel
Stem Seal Type PTFE/Viton®
Body Finish Stainless Steel
Ball Material 316 Stainless Steel
Seat Material RTFE
Seal Type PTFE/Viton
Stem Material 316 Stainless Steel
C Dimensions 0.31 in
A Dimensions 2.17 in
Application Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
Valve Features
  • Full Port
  • Stainless Steel (ASTM A351-CF8M) Investment Cast Body
  • RTFE Seats, PTFE/Viton® Stem Seals
  • Stainless Steel Ball and Bottom Loaded Stem
  • Available in 1/4" – 4" FNPT Ends
  • 1000 PSI WOG, 125WSP Sized for 500psid (1/4"-1") 300 psid (1 1/4"-3") media.
Actuator Features
  • Quarter-Turn, high cycling, rack and pinion, air-operated Actuators
  • Available in Double Acting and Spring Return (Fail Open or Fail Close)
  • Optional Pilot Solenoids to control air flow via PLC panel or other electric signal
  • Valve Position Limit Switch (NEMA 4, 4X) to provide local and remote indication of valve position (2 SPDT switches)
  • Life-time lubricated, -4 to 176 deg F (Low Temp and High Temp also available)
REPLACEMENT OR OBSOLETE ITEM REPLACEMENT

The P3S DynaMatic Series of high-cycling pneumatically actuated stainless steel valves are perfect for food and beverage, general chemical, or severe service applications. Three-piece design is available in FNPT and offers flexibility and advanced maintenance options to increase the economic life of your equipment. DynaQuip’s pioneering direct mount valve design is compact and eliminates the need for brackets which reduces side-loading or other misalignment concerns.

These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options
