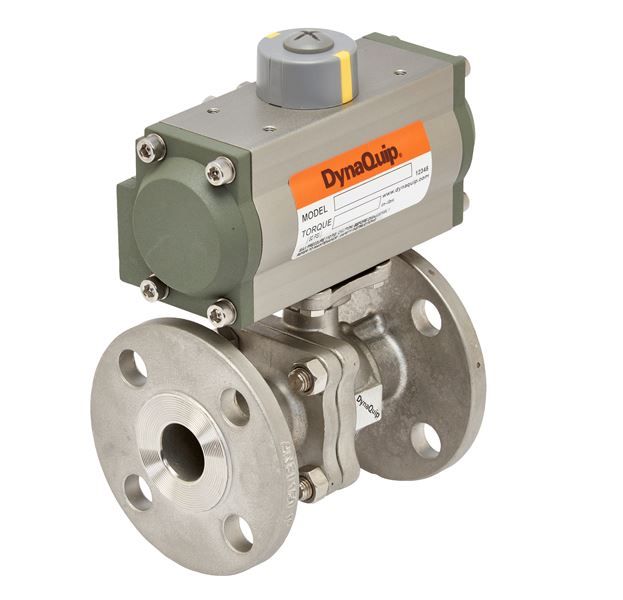

Additional information
| Valve Size | 3 in |
|---|---|
| Pneumatic Actuator Type | Spring Return – Fail Open |
| Pneumatic Actuator Accessories | Pilot Solenoid 115 VAC |
| REPLACEMENT OR OBSOLETE ITEM | REPLACEMENT |
| Series | P5S |
| Operator | Actuator |
| Actuator Type | HP125SR10F |
| Valve Type | Ball |
| Thread Type | #150 Flange |
| Operating PSI(D) | 285 psi |
| Valve CWP | 285 psi |
| Porting Style | Full |
| Port Opening Size | 3 |
| Temperature Range - Media | -4 to 392 ºF |
| Temperature Range - Ambient | -4 to 176 ºF |
| Body Style | 2 Piece |
| Number of Ports | 2 |
| Valve Body Material | Stainless Steel |
| Valve Construction | Stainless Steel |
| Stem Seal Type | Graphite/Viton |
| Body Finish | Stainless Steel |
| Ball Material | 316 Stainless Steel |
| Seat Material | RTFE |
| Seal Type | Seals/O-Ring: Graphite/Viton |
| Stem Material | 316 Stainless Steel |
| A Dimensions | 8.00 in |
| C Dimensions | 2.99 in |
| Application | Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown |
| Valve Features | Full PortAPI 607 Fire Safe ApprovedStainless Steel (ASTM A351-CF8M) Investment Cast BodyRTFE Seats, Viton® Stem Seals-20 to 392 deg FAvailable in 1/2" – 4" ANSI 150 Flanged Ends |
| Actuator Features | -4 to 176 deg F (Low Temp and High Temp also available), 4X) to provide local and remote indication of valve position (2 SPDT switches)Life-time lubricated, high cycling, Quarter-Turn, rack and pinion |
