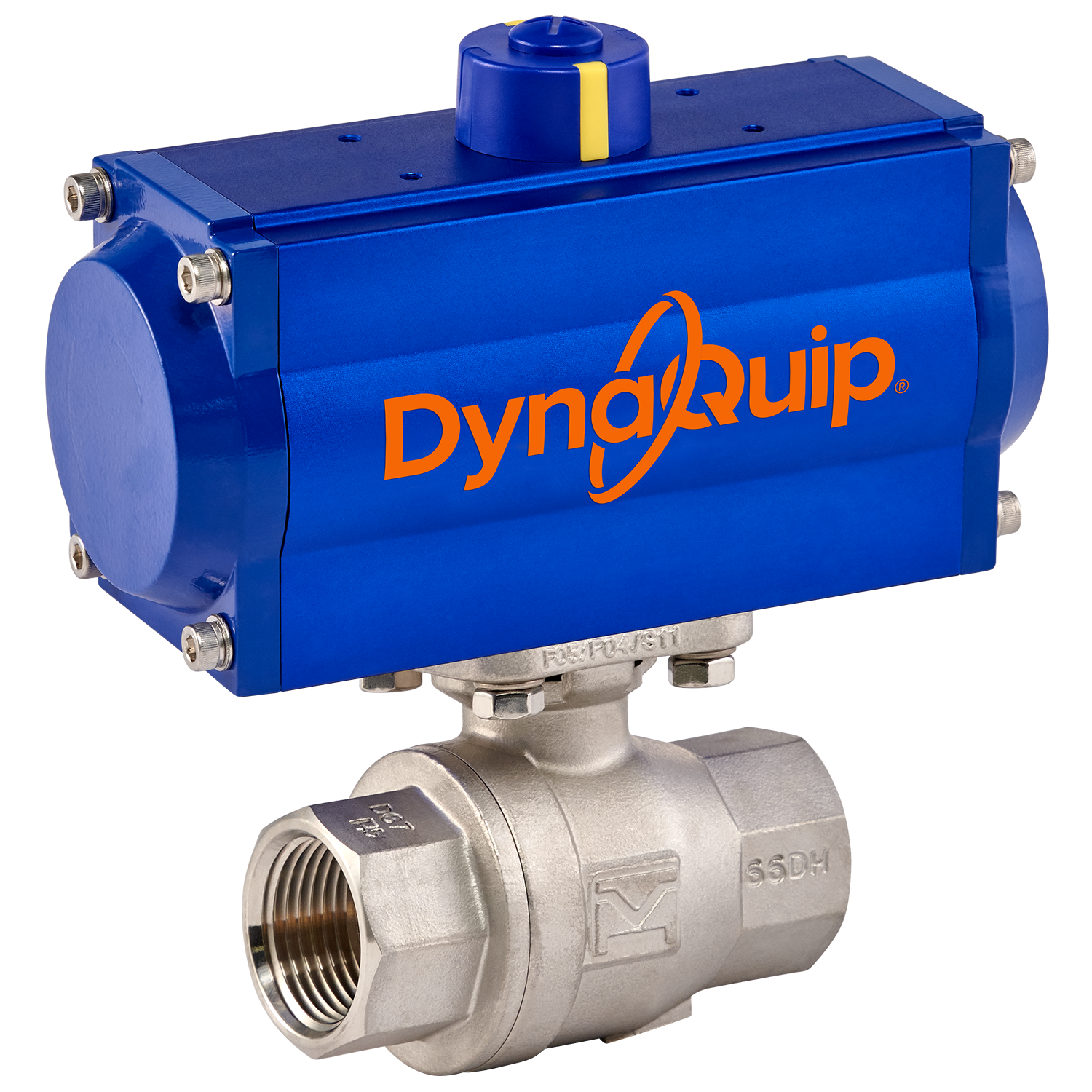

PAS23ARSR06412, Pneumatic Automated 2PC High Pressure Stainless Steel Ball Valve

Valve Size 1/2 in
Pneumatic Actuator Type Spring Return - Fail Closed
Actuator Type HP064SR12
Valve Type Ball
Operating PSI (D) 3000 PSI
Seat Material Delrin®
Seal Type PTFE
Temperature Range - Media -20° / 185°F
Temperature Range - Ambient -4 to 176 ºF
Body Material Stainless Steel
Ball Material 316 Stainless Steel
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications

The PAS Series of pneumatic automated stainless-steel ball valves are designed for high-pressure applications.  DynaQuip’s pioneering direct mount valve design is compact and eliminates the need for brackets which reduces side-loading or other misalignment concerns.

These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
Features Include:

  • ISO 5211 Direct Mounting
  • Full Port
  • NPT Female Threaded Ends
  • Stainless Steel (CF8M) Construction
  • Delrin Seats
