Description

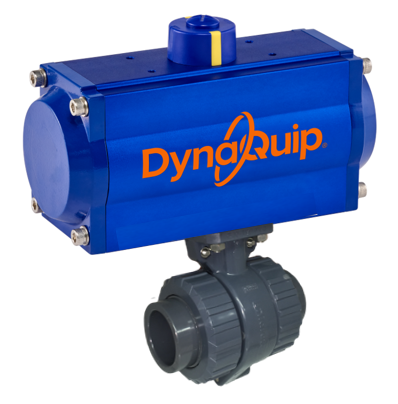

DynaQuip pneumatic automated bi-directional ball valves allow flow in either direction with the ball locked into the valve body. Automated PVC valves offer a lighweight solution that wont rust or corrode. They are perfect for applications using PVC piping such as agriculture and construction.
These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls.
PVC Ball Valve Features
• PVC body and ball
• Full port
• PTFE seals
• EPDM seats standard, VITON optional
• Electric and pneumatic actuator operation
• Max pressure 232 PSI
• True-Union end connections
• Ends – Standard – Slip-Fit (Glue Ends) Optional NPT Female
• Sizes – 2-Way ½ to 4” 3-Way 1” to 3”
