Valve Size
|
1 in
|
|
Porting Style
|
Full
|
|
Pneumatic Actuator Type
|
Double Acting
|
|
Actuator Type
|
HP063SR10
|
|
Valve Body Material
|
PVC
|
|
Operating PSI (D)
|
230 PSI
|
|
WEIGHT LBS
|
5.3 lb
|
|
Stem Seal Type
|
PTFE
|
|
Seat Material
|
EPDM
|

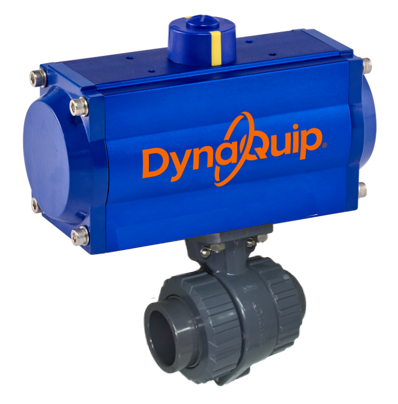

DynaQuip's PCP Series of air automated bi-directional PVC ball valves are perfect for applications using PVC piping, such as construction and agriculture.
These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls.
PVC Ball Valve Features
• PVC body and ball
• Full port
• PTFE seals
• EPDM seats standard, VITON optional
• Electric and pneumatic actuator operation
• Max pressure 232 PSI
• True-Union end connections
• Ends - Standard – Slip-Fit (Glue Ends) Optional NPT Female
• Sizes – 2-Way ½ to 4” 3-Way 1” to 3”
