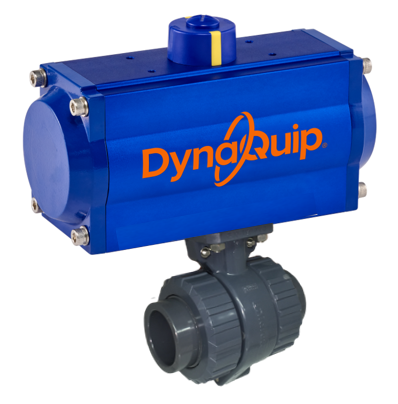

PCP2AZ5DA083, Air Automated Bi-Directional PVC Ball Valve

PCP2AZ5DA083, Air Automated Bi-Directional PVC Ball Valve

SKU: PCP2AZ5DA083 Category:
Printable Page
Email This Page
Save To Favorites
PCP Series Spec Sheet

Additional information

Pneumatic Actuator Type

Double Acting
Porting Style

Full
Stem Seal Type

PTFE
Seat Material

EPDM
Operating PSI (D)

230 PSI
Valve Body Material

PVC
Valve Size

3 in
WEIGHT LBS

13.5
Actuator Type

HP083DA

Description

DynaQuip’s PCP Series of air automated bi-directional PVC ball valves are perfect for applications using PVC piping, such as construction and agriculture.

These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls.

PVC Ball Valve Features

• PVC body and ball
• Full port
• PTFE seals
• EPDM seats standard, VITON optional
• Electric and pneumatic actuator operation
• Max pressure 232 PSI
• True-Union end connections
• Ends – Standard – Slip-Fit (Glue Ends) Optional NPT Female
• Sizes – 2-Way ½ to 4” 3-Way 1” to 3”
