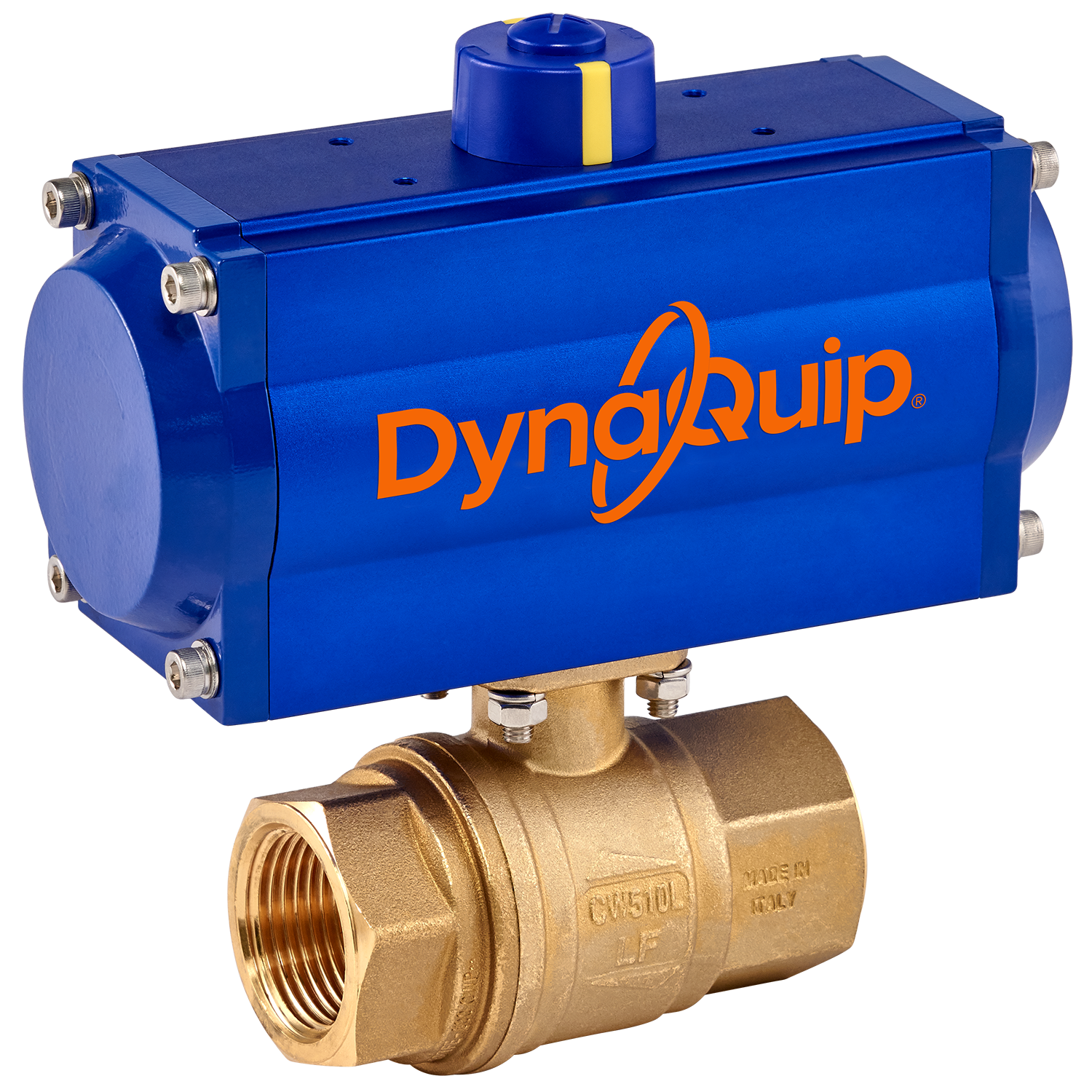

PHH SERIES - 2PC Brass Ball Valve - Pneumatic Actuator
The PHH DynaMatic Series of high-cycling pneumatically actuated brass valves offer an excellent option for automated applications where economical, yet rugged forged brass is required. DynaQuip’s pioneering direct mount valve design is compact and eliminates the need for brackets which reduces side-loading or other misalignment concerns.
These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
| Item # | Valve Size | Pneumatic Actuator Type | Pneumatic Actuator Accessories | CROSS REFERENCE ITEM | List Price | |
|---|---|---|---|---|---|---|
| PHH23ATDA032 | 1/2 in | Double Acting | N/A | PHH23ATD01 |
Quote
|
|
| PHH23ATDA032A | 1/2 in | Double Acting | Pilot Solenoid 115 VAC | PHH23ATD01A |
Quote
|
|
| PHH23ATDA032A2 | 1/2 in | Double Acting | Pilot Solenoid 24 VAC | PHH23ATD01A2 |
Quote
|
|
| PHH23ATDA032A3 | 1/2 in | Double Acting | Pilot Solenoid 24 VDC | PHH23ATD01A3 |
Quote
|
|
| PHH23ATDA032A4 | 1/2 in | Double Acting | Pilot Solenoid 12 VDC | PHH23ATD01A4 |
Quote
|
|
| PHH23ATSR05210 | 1/2 in | Spring Return - Fail Closed | N/A | PHH23ATS012 |
Quote
|
|
| PHH23ATSR05210A | 1/2 in | Spring Return - Fail Closed | Pilot Solenoid 115 VAC | PHH23ATS012A |
Quote
|
|
| PHH23ATSR05210A2 | 1/2 in | Spring Return - Fail Closed | Pilot Solenoid 24 VAC | PHH23ATS012A2 |
Quote
|
|
| PHH23ATSR05210A3 | 1/2 in | Spring Return - Fail Closed | Pilot Solenoid 24 VDC | PHH23ATS012A3 |
Quote
|
|
| PHH23ATSR05210A4 | 1/2 in | Spring Return - Fail Closed | Pilot Solenoid 12 VDC | PHH23ATS012A4 |
Quote
|
|
| PHH23ATSR05210F | 1/2 in | Spring Return - Fail Open | N/A | PHH23ATS012F |
Quote
|
|
| PHH23ATSR05210FA | 1/2 in | Spring Return - Fail Open | Pilot Solenoid 115 VAC | PHH23ATS012FA |
Quote
|
|
| PHH23ATSR05210FA2 | 1/2 in | Spring Return - Fail Open | Pilot Solenoid 24 VAC | PHH23ATS012FA2 |
Quote
|
|
| PHH23ATSR05210FA3 | 1/2 in | Spring Return - Fail Open | Pilot Solenoid 24 VDC | PHH23ATS012FA3 |
Quote
|
|
| PHH23ATSR05210FA4 | 1/2 in | Spring Return - Fail Open | Pilot Solenoid 12 VDC | PHH23ATS012FA4 |
Quote
|
|
| PHH24ATDA032 | 3/4 in | Double Acting | N/A | PHH24ATD01 |
Quote
|
|
| PHH24ATDA032A | 3/4 in | Double Acting | Pilot Solenoid 115 VAC | PHH24ATD01A |
Quote
|
|
| PHH24ATDA032A2 | 3/4 in | Double Acting | Pilot Solenoid 24 VAC | PHH24ATD01A2 |
Quote
|
|
| PHH24ATDA032A3 | 3/4 in | Double Acting | Pilot Solenoid 24 VDC | PHH24ATD01A3 |
Quote
|
|
| PHH24ATDA032A4 | 3/4 in | Double Acting | Pilot Solenoid 12 VDC | PHH24ATD01A4 |
Quote
|
|
| PHH24ATSR05210F | 3/4 in | Spring Return - Fail Open | N/A | PHH24ATS012F |
Quote
|
|
| PHH24ATSR05210FA | 3/4 in | Spring Return - Fail Open | Pilot Solenoid 115 VAC | PHH24ATS012FA |
Quote
|
|
| PHH24ATSR05210FA2 | 3/4 in | Spring Return - Fail Open | Pilot Solenoid 24 VAC | PHH24ATS012FA2 |
Quote
|
|
| PHH24ATSR05210FA3 | 3/4 in | Spring Return - Fail Open | Pilot Solenoid 24 VDC | PHH24ATS012FA3 |
Quote
|
|
| PHH24ATSR05210FA4 | 3/4 in | Spring Return - Fail Open | Pilot Solenoid 12 VDC | PHH24ATS012FA4 |
Quote
|
