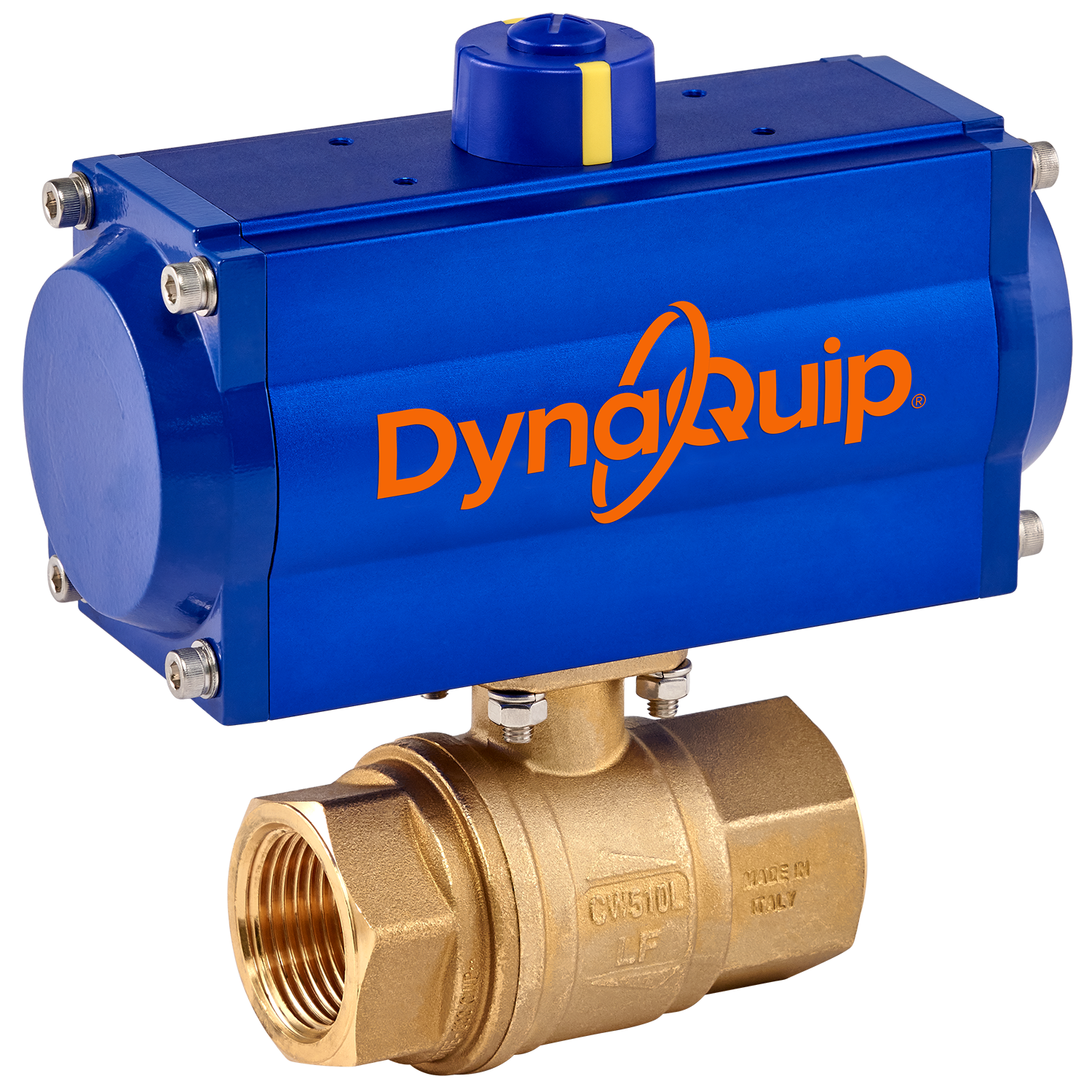

PHH27ATSR08310F, 2PC BR PNEU SR/FO

Valve Size 1 1/2 in
Pneumatic Actuator Type Spring Return - Fail Open
CROSS REFERENCE ITEM PHH27ATS054F
Series PHH
Operator Actuator
Actuator Type HP083SR10
Valve Type Ball
Thread Type FNPT
Operating PSI(D) 300 psi
Valve CWP 600 psi
Porting Style Full
Port Opening Size 1 1/2
Temperature Range - Media -20 to 370 ºF
Temperature Range - Ambient -4 to 176 ºF
Body Style 2 Piece
Number of Ports 2
Valve Body Material Brass
Valve Construction Brass
Stem Seal Type Viton
Body Finish Brass
Ball Material Chrome Plated Brass
Seat Material Viton
Seal Type Viton
Stem Material Nickel Plated Brass
A Dimensions 4.60 in
C Dimensions 1.57 in
Application Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
Valve Features
  • Full Port
  • CW617N Forged Brass Body
  • RTFE Seats, Viton® Stem Seals
  • Bottom Loaded Stem
  • Available in 1/2" – 4" FNPT Ends
  • 600 PSI WOG Assembly sized for 300 psid media.
Actuator Features
  • Quarter-Turn, high cycling, rack and pinion, air-operated Actuators
  • Available in Double Acting and Spring Return (Fail Open or Fail Close)
  • Optional Pilot Solenoids to control air flow via PLC panel or other electric signal
  • Valve Position Limit Switch (NEMA 4, 4X) to provide local and remote indication of valve position (2 SPDT switches)
  • Life-time lubricated, -4 to 176 deg F (Low Temp and High Temp also available)
REPLACEMENT OR OBSOLETE ITEM REPLACEMENT

The PHH DynaMatic Series of high-cycling pneumatically actuated brass valves offer an excellent option for automated applications where economical, yet rugged forged brass is required. DynaQuip’s pioneering direct mount valve design is compact and eliminates the need for brackets which reduces side-loading or other misalignment concerns.

These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
