Valve Size
|
4 in
|
Pneumatic Actuator Type
|
Spring Return - Fail Closed
|
Pneumatic Actuator Accessories
|
Pilot Solenoid 24 VDC
|
CROSS REFERENCE ITEM
|
PHH2BATS094A3
|
Series
|
PHH
|
Operator
|
Actuator
|
Actuator Type
|
HP105SR12
|
Valve Type
|
Ball
|
Thread Type
|
FNPT
|
Operating PSI(D)
|
300 psi
|
Valve CWP
|
600 psi
|
Porting Style
|
Full
|
Port Opening Size
|
4
|
Temperature Range - Media
|
-20 to 370 ºF
|
Temperature Range - Ambient
|
-4 to 176 ºF
|
Body Style
|
2 Piece
|
Number of Ports
|
2
|
Valve Body Material
|
Brass
|
Valve Construction
|
Brass
|
Stem Seal Type
|
Viton
|
Body Finish
|
Brass
|
Ball Material
|
Chrome Plated Brass
|
Seat Material
|
Viton
|
Seal Type
|
Viton
|
Stem Material
|
Nickel Plated Brass
|
A Dimensions
|
8.03 in
|
C Dimensions
|
3.74 in
|
Application
|
Agricultural and Food Processing, Alternative Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|
Valve Features
|
- Full Port
- CW617N Forged Brass Body
- RTFE Seats, Viton® Stem Seals
- Bottom Loaded Stem
- Available in 1/2" – 4" FNPT Ends
- 600 PSI WOG Assembly sized for 300 psid media.
|
Actuator Features
|
- Quarter-Turn, high cycling, rack and pinion, air-operated Actuators
- Available in Double Acting and Spring Return (Fail Open or Fail Close)
- Optional Pilot Solenoids to control air flow via PLC panel or other electric signal
- Valve Position Limit Switch (NEMA 4, 4X) to provide local and remote indication of valve position (2 SPDT switches)
- Life-time lubricated, -4 to 176 deg F (Low Temp and High Temp also available)
|
REPLACEMENT OR OBSOLETE ITEM
|
REPLACEMENT
|

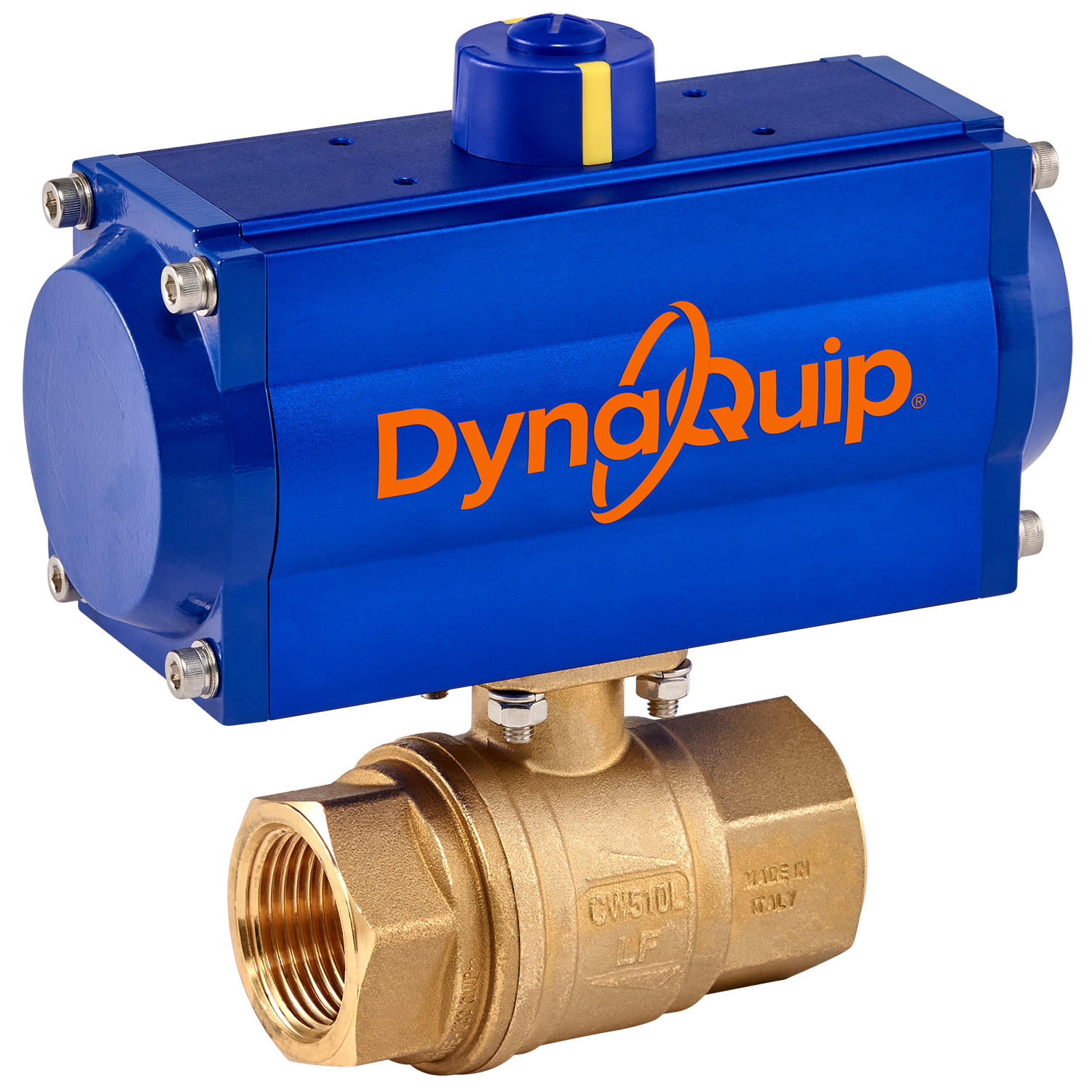

The PHH DynaMatic Series of high-cycling pneumatically actuated brass valves offer an excellent option for automated applications where economical, yet rugged forged brass is required. DynaQuip’s pioneering direct mount valve design is compact and eliminates the need for brackets which reduces side-loading or other misalignment concerns.
These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
