Retired Electric Actuated Ball Valve Assemblies
EVS SERIES - 3 PC Stainless Steel Ball Valve - Electric Actuator
The DynaMatic EVS2 Series of actuated three-piece stainless steel ball valves offers an excellent option for automated applications where corrosion resistant stainless steel is required. The three-piece swing out style valve makes routine maintenance a snap. The EVS2 series uses our DE and MA Series electric actuators available in 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications.
Features Include:
- NPT Threaded Ends
- 316 Stainless Construction
- RTFE Seats
- Viton O-Ring Stem Seals
- Adjustable Stem Packing
- Swing-Out Design for Quick Repair
- ISO 5211 Direct Mounting

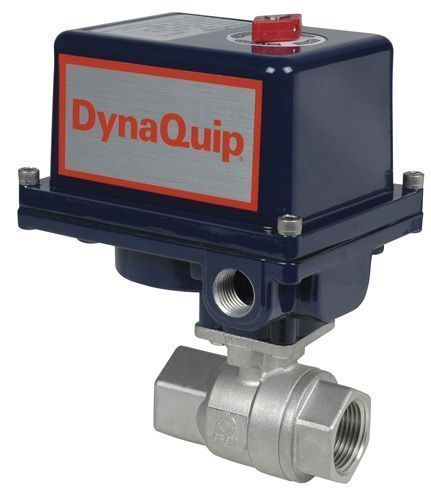

EHS SERIES - 2 PC Stainless Steel Ball Valve - Electric Actuator
The EHS2 DynaMatic Series of electrically actuated stainless steel valves offers an excellent option for automated applications requiring corrosion resistant stainless steel. Two-piece design offers flexibility and rugged economy. These automated valves are available with 115VAC, 220 VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications.
Features Include:
- NPT Female Threaded Ends
- Stainless Steel (CF8M) Construction
- RTFE Seats, PTFE/Viton Stem Seals
- Bottom Loaded Stem
- ISO 5211 Direct Mounting

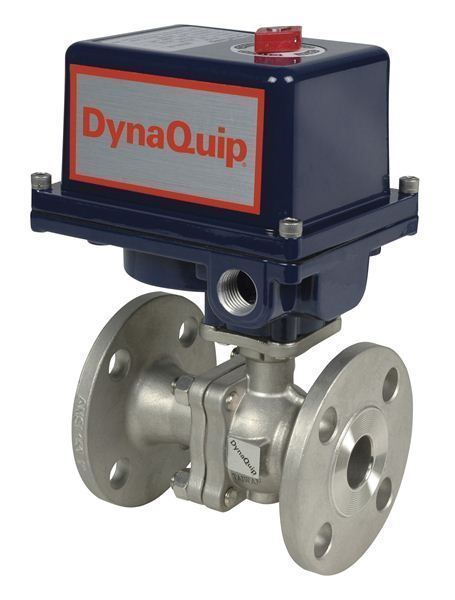

EHS SERIES - 2 PC Flanged Stainless Steel Ball Valve - Electric Actuator
The EHS2 Flanged Series from DynaQuip offers excellent options when a flanged connection is needed. The ball valve is constructed of 316 stainless steel, and can be used for general chemical and corrosive fluid applications. The EHS2 series is also full port and features 150 lb. ANSI flanges. The EHS2 series uses our DE and MA Series electric actuators, and are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC.
Features Include:
- 150 ANSI v16.10 Flanged Connections
- Fire Test to API 607
- RTFE Seat/Seals
- Bottom Loaded Stem
- ISO 5211 Direct Mounting

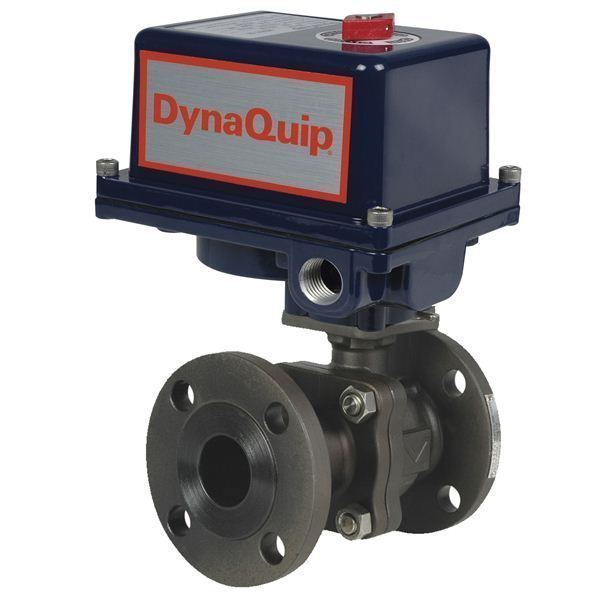

E5C SERIES - 2PC Flanged Carbon Steel Ball Valve - Electric Actuator
The E5C Carbon Steel Flanged Series offers an excellent option when a flanged connection is needed. The valve is constructed of durable carbon steel for industrial, hydraulic, or petroleum applications. The E5C series is also full port and features 150 lb. ANSI flanges. The E5C series uses our DE and MA Series electric actuators, and are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications.
Features Include:
- 150 ANSI v16.10 Flanged Connections
- Fire Test to API 607
- RTFE Seat/Seals
- Bottom Loaded Stem
- ISO 5211 Direct Mounting
