Stainless Steel Ball Valves

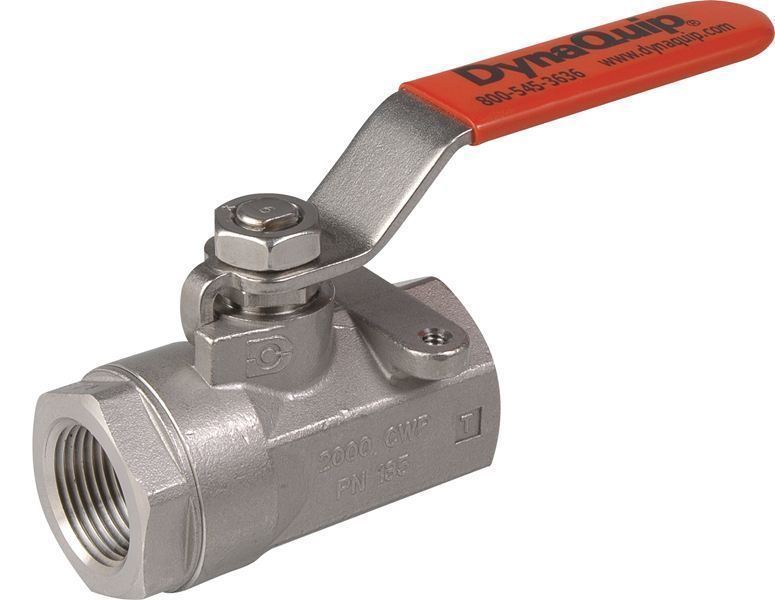

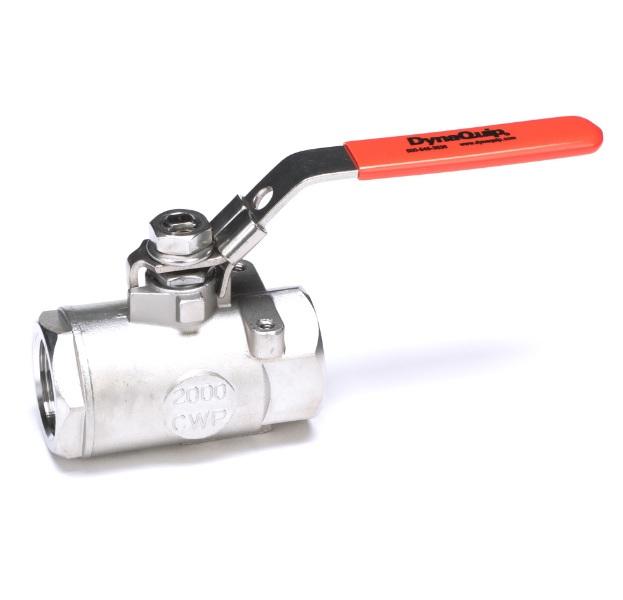

Stainless Steel 2-Piece Screwed Body Valve - V1S Series
V1S Series two-piece screwed body ball valves are made with investment cast stainless steel. Valve with 316 SS trim is durable enough for severe service applications, yet economical enough for general chemical flow control. Panel mount is standards on all sizes. Adjustment of stem packing can be done while valve is in service. Need this valve automated? Look at our DynaMatic E2S and P2S series for a similar valve already packaged.
Key Benefits:
- V1S Stainless Steel 2-Piece
- Adjustable Stem packing
- Reinforced PTFE Seats
- Blowout Proof Stem Design
Options:
- Latching Lockout Handle Standard
Stainless Steel 2-Piece High Pressure - VAS Series
VAS Series two-piece high pressure ball valves are made with investment cast stainless steel. Valve with 316 SS trim is durable enough for severe service applications, yet economical enough for general chemical flow control. IS05211 Direct mount is standards on all sizes. Adjustment of stem packing can be done while valve is in service. Need this valve automated? Look at our DynaMatic EAS and PAS series for a similar valve already packaged.
Key Benefits:
- Meets NACE Standard MRO 175
- Adjustable Stem packing
- Delrin Seats
- Blowout Proof Stem Design
Options:
- Lockout Handle Standard

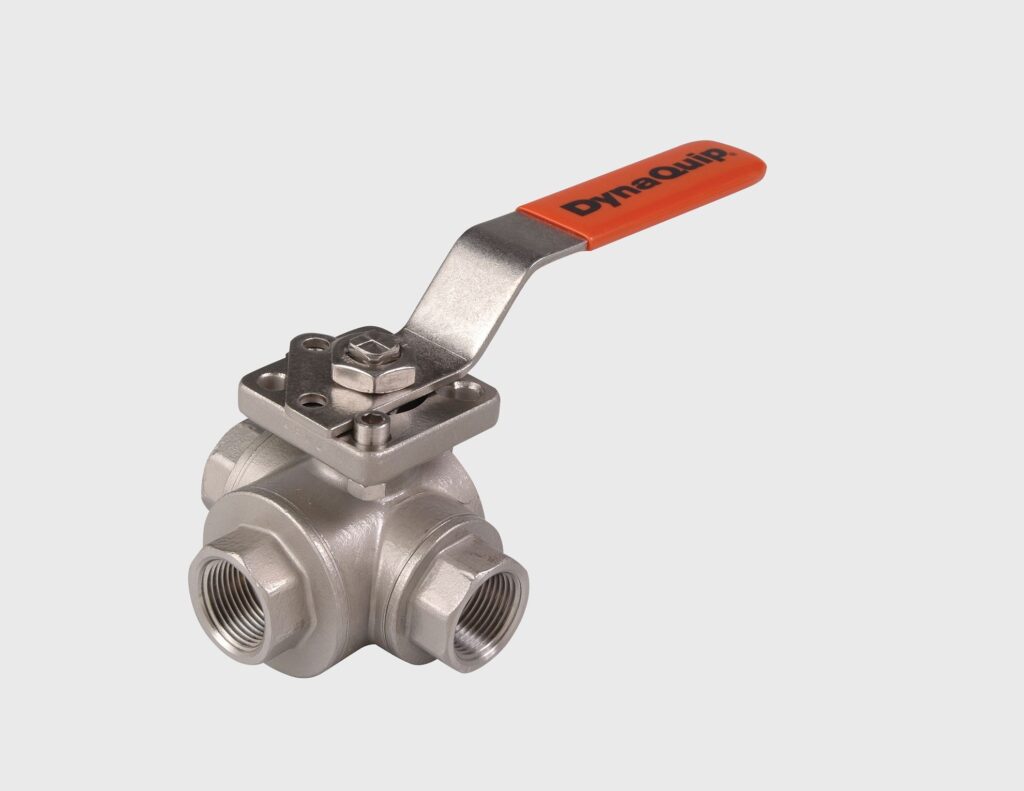

Stainless Steel 3-Way Valve - VYSG Series
VYSG Series Three-way utility ball valve has a 90deg “L” port (diverter) design and features and investment cast body and endcaps, stainless steel trim, RTFE seats, blowout-proof stem, and NPT end connections. ISO 5211 mounting pad makes automation easy! See our DynaMatic EYSG and PYSG series for assemblies.
Key Benefits:
- 150 WSP
- ISO 5211 direct mount pad
- Self-adjusting Stem packing
- Blowout Proof Stem Design
- Standard Port
Options:
- Latching Lockout Handle Kit (OP)
Stainless Steel 3-Way Valve - VYSA Series
VYSA Series Three-way utility ball valve has a 90deg “L” port (diverter) design and features and investment cast body and endcaps, stainless steel trim, RTFE seats, blowout-proof stem, and NPT end connections. ISO 5211 mounting pad makes automation easy! See our DynaMatic EYSA and PYSA series for assemblies.
Key Benefits:
- 150 WSP
- ISO 5211 direct mount pad
- Self-adjusting Stem packing
- Blowout Proof Stem Design
- Full Port
Options:
- Latching Lockout Handle Kit (OP)

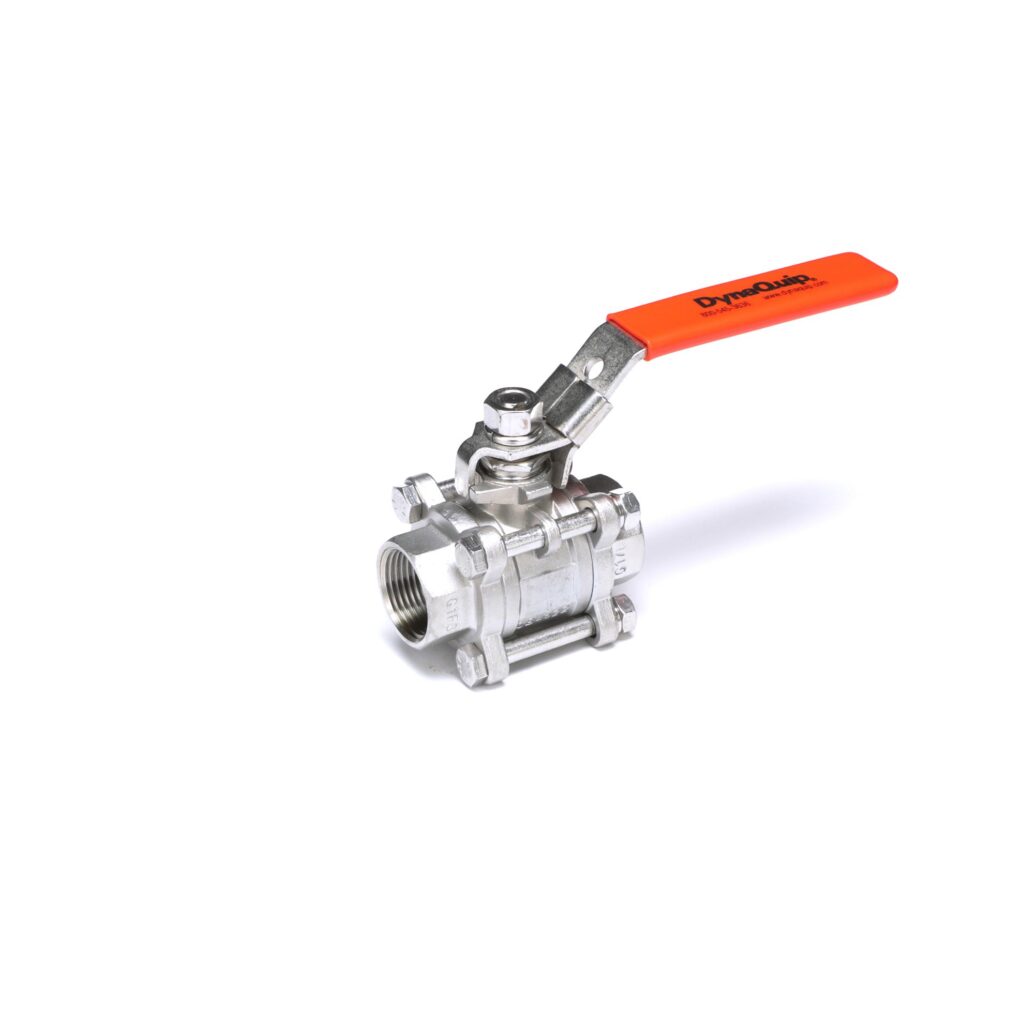

Stainless Steel 3-Piece Bolted In-Line Valve - V3S & V6S Series
V3S & V6S Series ball valves are designed for food and general chemical applications where maintenance is key. Valve features RTFE seats, blowout-proof stems and actuator mounting pad. ISO 5211 mounting pad makes automation easy! See our DynaMatic E3S and P3S series for actuator assemblies.
Key Benefits:
- ISO 5211 direct mount pad provides accurate stem alignment and eliminates need for brackets.
- 3-Piece swing-out design provides easy in-line maintenance.
- Blowout Proof Stem Design and adjustable stem seal
Options:
- For Socket Weld connection or Manual Handle, see our V6S series.

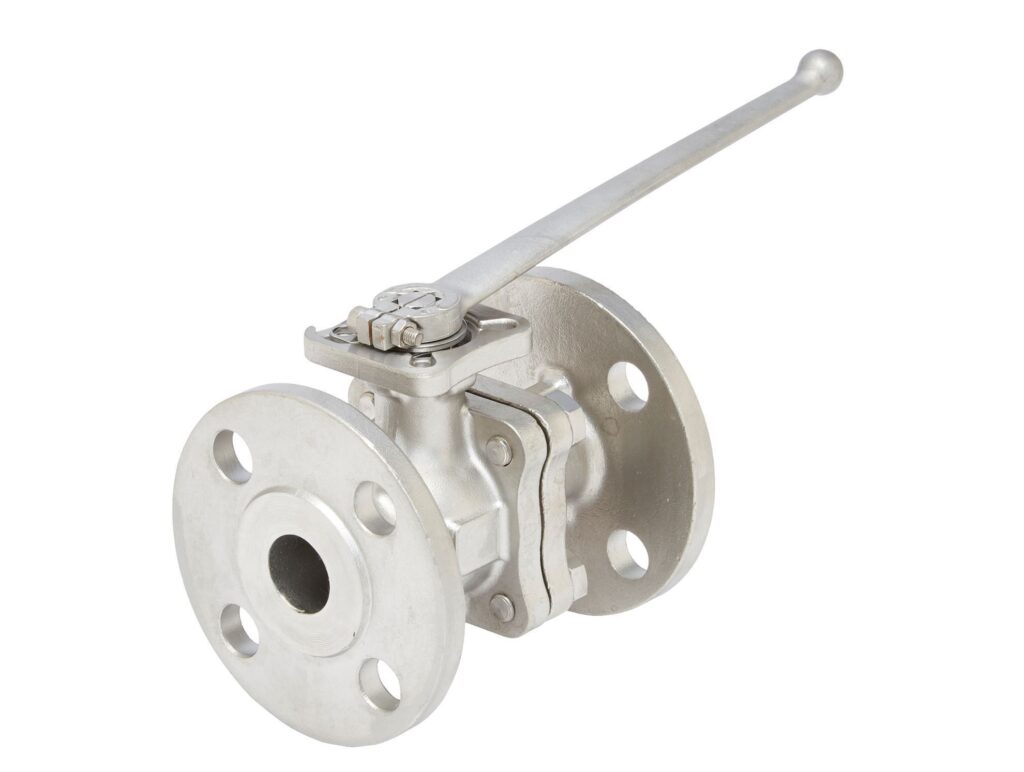

Stainless Steel 150 ANSI Flanged Valve - V5S Series
V5S Flanged Series ball valves are perfect for a wide range of applications where ANSI 150 flange is needed. This two piece A351-CF8M stainless steel investment cast body valve features a blow-out proof stem, anti-static device, and a fire safe design (test to API 607). ISO 5211 mounting pad makes automation easy! See our DynaMatic E5S-Flanged and P5S-Flanged series for assemblies.
Key Benefits:
- ISO 5211 direct mount pad provides accurate stem alignment and eliminates need for brackets.
- RTFE Seat, seal, and packing
- Spring system on stem.
