V3S21AJ, 1/4″ Stainless Steel 3-Piece Bolted In-Line Valve – V3S Series

Additional information

Valve Size

1/4 in

End Connections

FNPT

Valve CWP

1000 psi

Porting

Full

Handle Type

Locking

Series

VVS

Thread Type

FNPT

Valve Type

Ball

Operation Type

Manual

Ball Pattern

Bi-Directional, Conventional

Body Style

3 Piece

Temperature Range

-20 to 450 ºF

Weight

1.40 lb

Number of Ports

2

Valve Working Steam Pressure

150 psi

Ball Material

316 Stainless Steel

Seat Material

RTFE

Body Material

Stainless Steel

Handle Finish

Vinyl Grip

Body Finish

Stainless Steel

Seal Type

PTFE

Stem Material

316 Stainless Steel

Handle Material

Stainless Steel

Trim Material

Stainless Steel

B Dimensions

2.42 in

E Dimensions

4.92 in

Application

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

A - Port Diameter

0.31 in

Description

V3S Series ball valves are designed for food and general chemical applications where maintenance is key. Three-piece 316 SS bodies and end caps are available in NPT threaded or Socket weld end connections. Valve features RTFE seats, blowout-proof stems and actuator mounting pad. ISO 5211 mounting pad makes automation easy! See our DynaMatic E3S and P3S series for actuator assemblies.

Key Benefits:

  • ISO 5211 direct mount pad provides accurate stem alignment and eliminates need for brackets.
  • 3-Piece swing-out design provides easy in-line maintenance.
  • Blowout Proof Stem Design and adjustable stem seal

Options:

  • For Manual Handle, see our V6S series.

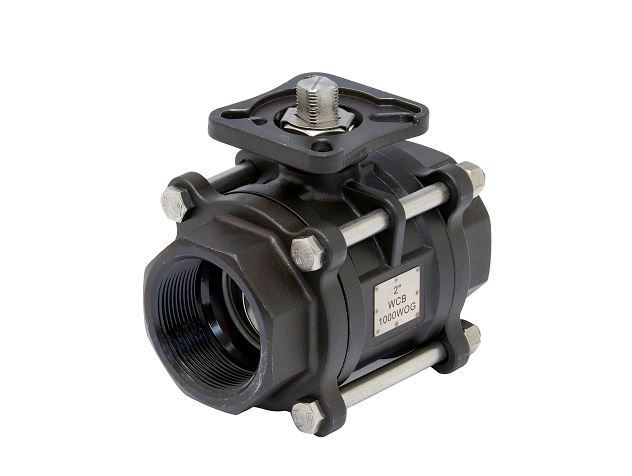

Note:  Valve shown in image is our Carbon Steel Valve.  Actual product is 316 Stainless Steel.
