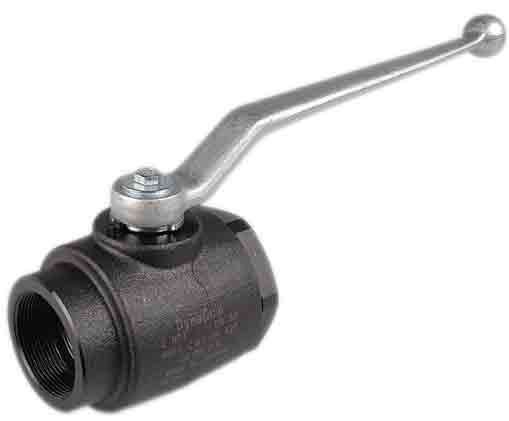

VAE2.A0 1 1/4, Carbon Steel 2/3-Piece High Pressure Valve - VAE Series

Valve Size 1 1/4 in
Thread Type FNPT
Body Style 2 Piece
A - Port Diameter 1.25 in
Handle Type Lever
Series VAE
Valve Type Ball
Operation Type Handle
Ball Pattern Conventional, Bi-Directional
End Connections FNPT
Valve CWP 4600 psi
Porting Full
Temperature Range -20 to 175 ºF
Weight 5.62 lb
Number of Ports 2
Ball Material Chrome Plated Steel
Seat Material Delrin® (POM)
Body Material Carbon Steel
Body Finish Black Oxide
Seal Type Delrin® (POM)
Stem Material Nickel Plated Steel
Handle Material Steel, Cast
Trim Material Carbon Steel
B Dimensions 4.33 in
E Dimensions 12.60 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
VAE2 Series ball valves are designed for high-pressure hydraulic applications. Bar stock design (1/4” - 1”), cast steel bodies (1 1/4” - 2”). This full port valve is available in NPT threaded or SAE O-Ring Boss end connections. Valves feature Delrin® seats, blowout-proof stems, and cast steel handles. Operating temperature range: -20° to 175°F.

Key Benefits:
  • Heavy Duty Construction
  • Blowout-Proof Stem Design
  • Delrin® Seats for Smooth Operation
  • 3:1 Pressure Safety Factor
  • Not Recommended for Steam Service
Options:
  • Lockout Kit Available
