Valve Size
|
3/8 in
|
|
Thread Type
|
FNPT
|
|
Body Style
|
3 Piece
|
|
A - Port Diameter
|
0.39 in
|
|
Handle Type
|
Lever
|
|
Series
|
VAE
|
|
Valve Type
|
Ball
|
|
Operation Type
|
Handle
|
|
Ball Pattern
|
Conventional, Bi-Directional
|
|
End Connections
|
FNPT
|
|
Valve CWP
|
7000 psi
|
|
Porting
|
Full
|
|
Temperature Range
|
-20 to 175 ºF
|
|
Weight
|
0.95 lb
|
|
Number of Ports
|
2
|
|
Ball Material
|
Chrome Plated Steel
|
|
Seat Material
|
Delrin® (POM)
|
|
Body Material
|
Carbon Steel
|
|
Body Finish
|
Black Oxide
|
|
Seal Type
|
Delrin® (POM)
|
|
Stem Material
|
Nickel Plated Steel
|
|
Handle Material
|
Zinc Die-Cast
|
|
Trim Material
|
Carbon Steel
|
|
B Dimensions
|
2.87 in
|
|
E Dimensions
|
3.94 in
|
|
Application
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|

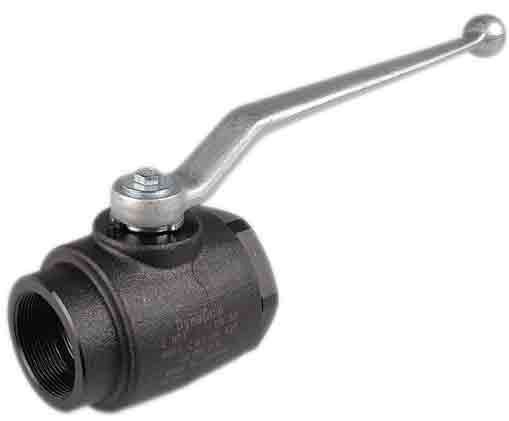

VAE2 Series ball valves are designed for high-pressure hydraulic applications. Bar stock design (1/4” - 1”), cast steel bodies (1 1/4” - 2”). This full port valve is available in NPT threaded or SAE O-Ring Boss end connections. Valves feature Delrin® seats, blowout-proof stems, and cast steel handles. Operating temperature range: -20° to 175°F.
Key Benefits: - Heavy Duty Construction
- Blowout-Proof Stem Design
- Delrin® Seats for Smooth Operation
- 3:1 Pressure Safety Factor
- Not Recommended for Steam Service
Options:
