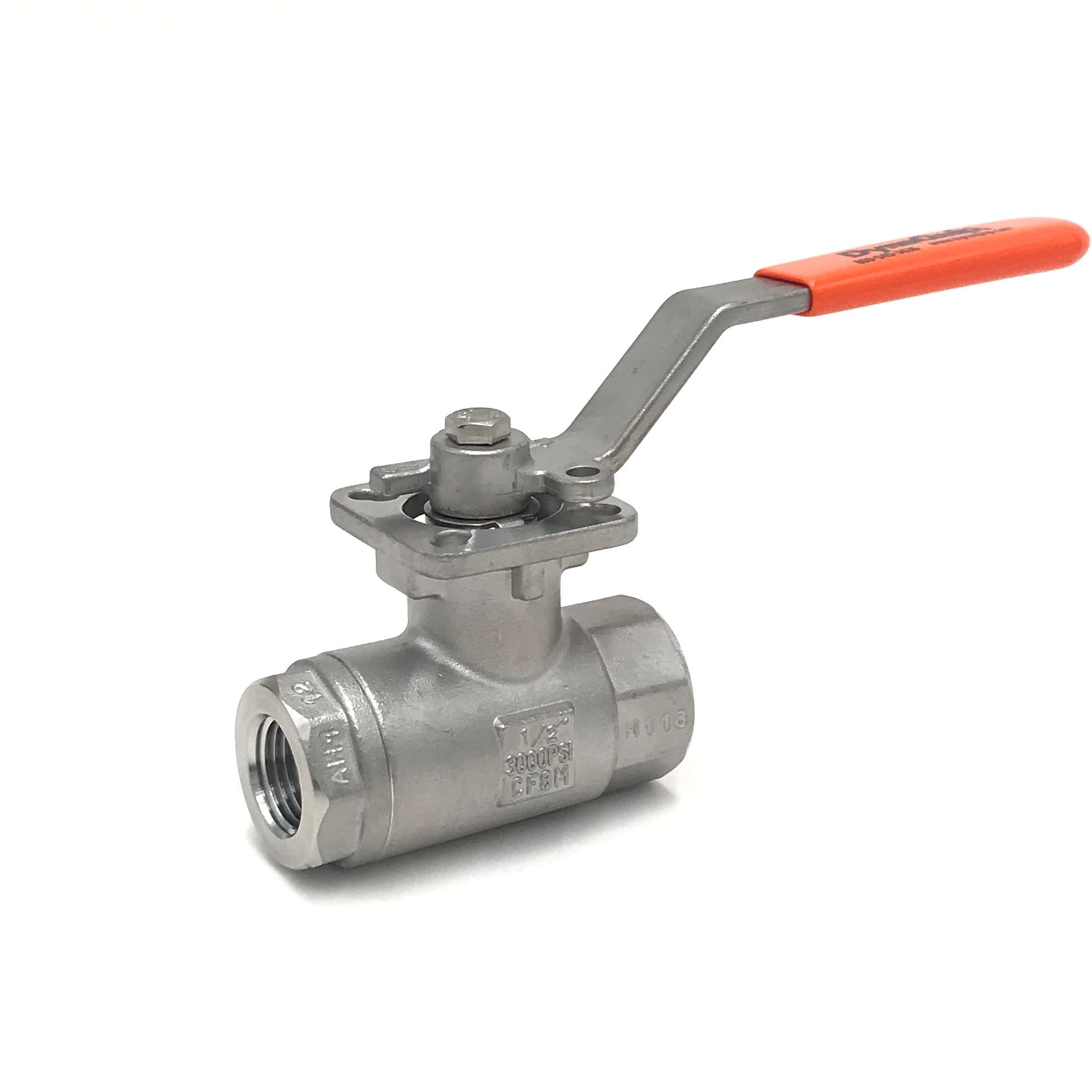

VAS2.AR0P 1/2, Stainless Steel 2-Piece High Pressure Valve – VAS Series

Additional information

Porting

Full

Thread Type

FNPT

Valve Type

Ball

Operation Type

Manual

Ball Pattern

Bi-Directional, Conventional

End Connections

FNPT

Body Style

2 Piece

Number of Ports

2

Application

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

Temperature Range

-20° / 185°F

Seat Material

Delrin®

Seal Type

PTFE

Valve Size

1/2 in

Operating PSI (D)

3000 PSI

Description

VAS Series two-piece high pressure ball valves are made with investment cast stainless steel. Valve with 316 SS trim is durable enough for severe service applications, yet economical enough for general chemical flow control. ISO 5211 direct mount is standards on all sizes. Adjustment of stem packing can be done while valve is in service. Need this valve automated? Look at our DynaMatic EAS and PAS series for a similar valve already packaged.

Key Benefits:

  • Meets NACE Standard MRO 175
  • Adjustable Stem packing
  • Delrin Seats
  • Blowout Proof Stem Design

Options:

  • Lockout Handle Kit
